Quick Details
-
Brand Name:
-
ECOTEC
-
Dimension(L*W*H):
-
5*2.3*2.4M
-
Capacity:
-
10000L
-
Weight:
-
5T
-
Inner Material:
-
Q345R
-
Outer Material:
-
Q345R
-
Design Pressure(MPa):
-
2.2
-
Design Standard:
-
ISO
-
Working Temperature(℃):
-
-55 - 75
-
Product name:
-
LPG SKID
-
Certificates:
-
ISO9001
-
Overall size(mm):
-
5260*1620*2210
-
Net weight(Kg):
-
III
-
Designing pressure:
-
1.61Mpa
-
Designing temperature:
-
-19~50°C
-
Volume:
-
10CBM(10000L)
-
Hydraulic test pressure:
-
2.22 Mpa
-
Gas tight test pressure:
-
1.77 Mpa
Quick Details
-
Volume (m³):
-
10
-
Max Working Pressure(MPa):
-
2.2 MPa
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ECOTEC
-
Dimension(L*W*H):
-
5*2.3*2.4M
-
Capacity:
-
10000L
-
Weight:
-
5T
-
Inner Material:
-
Q345R
-
Outer Material:
-
Q345R
-
Design Pressure(MPa):
-
2.2
-
Design Standard:
-
ISO
-
Working Temperature(℃):
-
-55 - 75
-
Product name:
-
LPG SKID
-
Certificates:
-
ISO9001
-
Overall size(mm):
-
5260*1620*2210
-
Net weight(Kg):
-
III
-
Designing pressure:
-
1.61Mpa
-
Designing temperature:
-
-19~50°C
-
Volume:
-
10CBM(10000L)
-
Hydraulic test pressure:
-
2.22 Mpa
-
Gas tight test pressure:
-
1.77 Mpa
Product Description

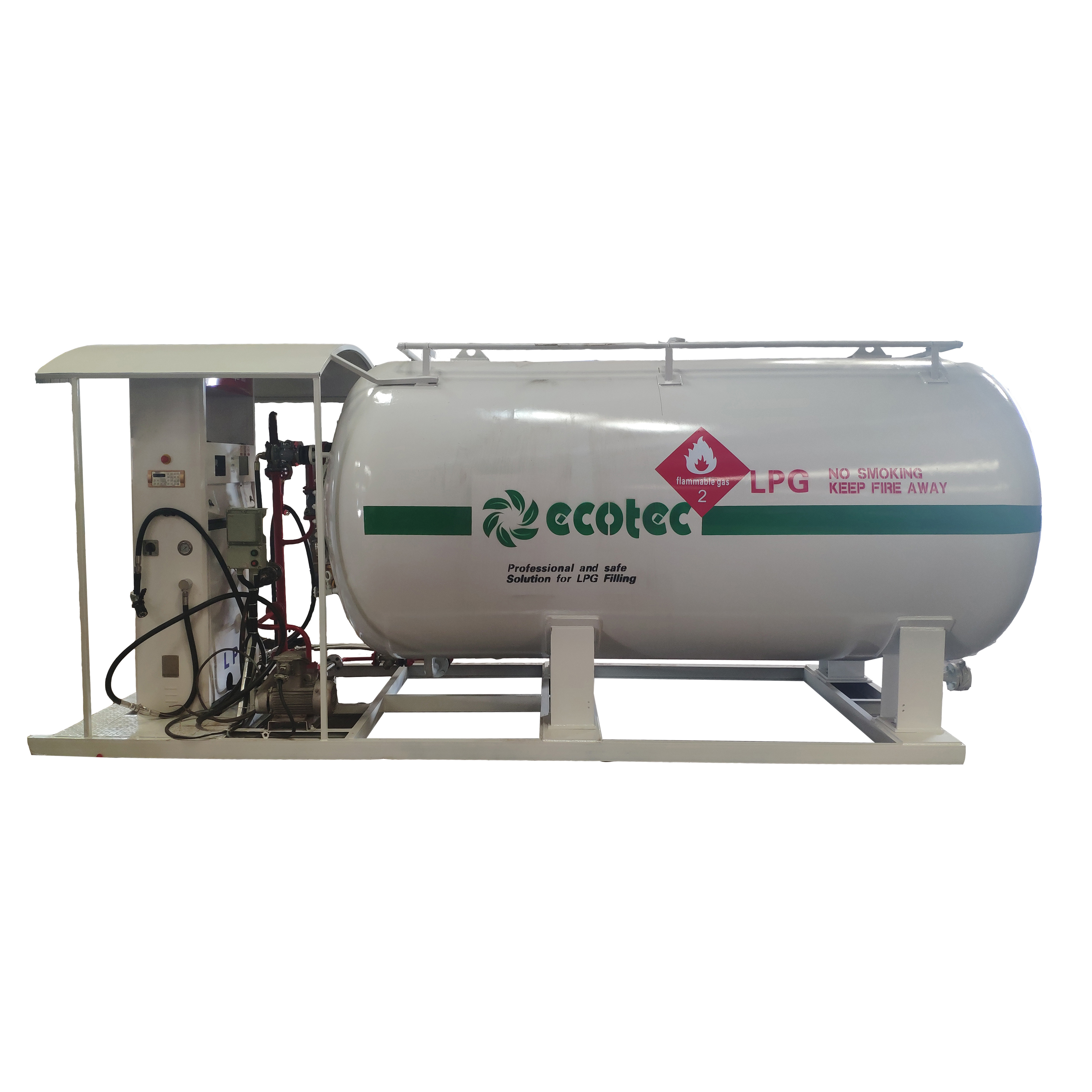

10 CBM LPG SKID
| Ecotec 10m3 LPG Skid | ||||||
| Technical specification | Parameters | Subject | Subject | Parameters | ||
| Item Number | 10M3 LPG tank | Liquid Indictor | Model | Eco-SK10 | ||
| Overall size(mm) | 5260*1620*2210 | Version | Magnetic | |||
| Net weight(Kg) | 2950 | Normal pressure | 2.5Mpa | |||
| Vessel type | III | Scope of testing | 50-2300mm | |||
| Designing pressure | 1.77Mpa | Precision | 2.5 | |||
| Working pressure | 1.61Mpa | Safety Valve | Model | A42F | ||
| Designing temperature | -19~50°C | Version | Built-in | |||
| Filling Medium | Propane | Normal pressure | 2.5 Mpa | |||
| Corrosion margin | 1.0mm | Normal diameter | DN50 | |||
| Volume | 10CBM(10000L) | Opening pressure | 1.68-1.76 Mpa | |||
| Heat treatment | bulk | Re-seating pressure | ≥80% of opening pressure | |||
| Filling factor | 420-590kg/m3 | Handling System |
Normal
Diameter |
Feed pip | DN50 | |
| Material | Q345R | Drain pip | DN50 | |||
| Hydraulic test pressure | 2.22 Mpa | Admission port | DN50 | |||
| Gas tight test pressure | 1.77 Mpa | Sewage outfall port | DN50 | |||
| Cylinder thickness | 9.98mm | Vent nozzle port | DN50 | |||
| Head thickness | 9.97mm | Stand | GB150-1998<steel pressure vessels> | |||
| Service time | 15 years | Safety regulation of pressure vessels | ||||
| Accessory | Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc. | |||||
| Specification | Designed Pressure: 1.66Mpa | |||||
| Filling Ratio: 0.42 -0.59kg/L | ||||||
| Working Temperature:-50ºC | ||||||
| Corrosion Allowance: 1mm | ||||||
Packaging & Shipping
Standard Carton or Wooden for transportation
Our Services
Warranty : 12 months
