Quick Details
-
Country of Origin:
-
CHINA
-
Brand:
-
ZHANGQING`
-
PoE Standard:
-
Passive, 802.3af
-
Dimension:
-
192*82*27mm
-
Input Voltage:
-
DC12V-57V
-
Port:
-
7 POE Port + 1 UPLINK PORT
-
Ethernet Rate:
-
10/100Mbps Fast Ethernet
-
Warranty:
-
12 Months
Quick Details
-
Model Number:
-
POES-8-7
-
Chipset:
-
null
-
Application:
-
802.3AF, IP Camera, WiFi AP
-
Country of Origin:
-
CHINA
-
Brand:
-
ZHANGQING`
-
PoE Standard:
-
Passive, 802.3af
-
Dimension:
-
192*82*27mm
-
Input Voltage:
-
DC12V-57V
-
Port:
-
7 POE Port + 1 UPLINK PORT
-
Ethernet Rate:
-
10/100Mbps Fast Ethernet
-
Warranty:
-
12 Months
OVERVIEW

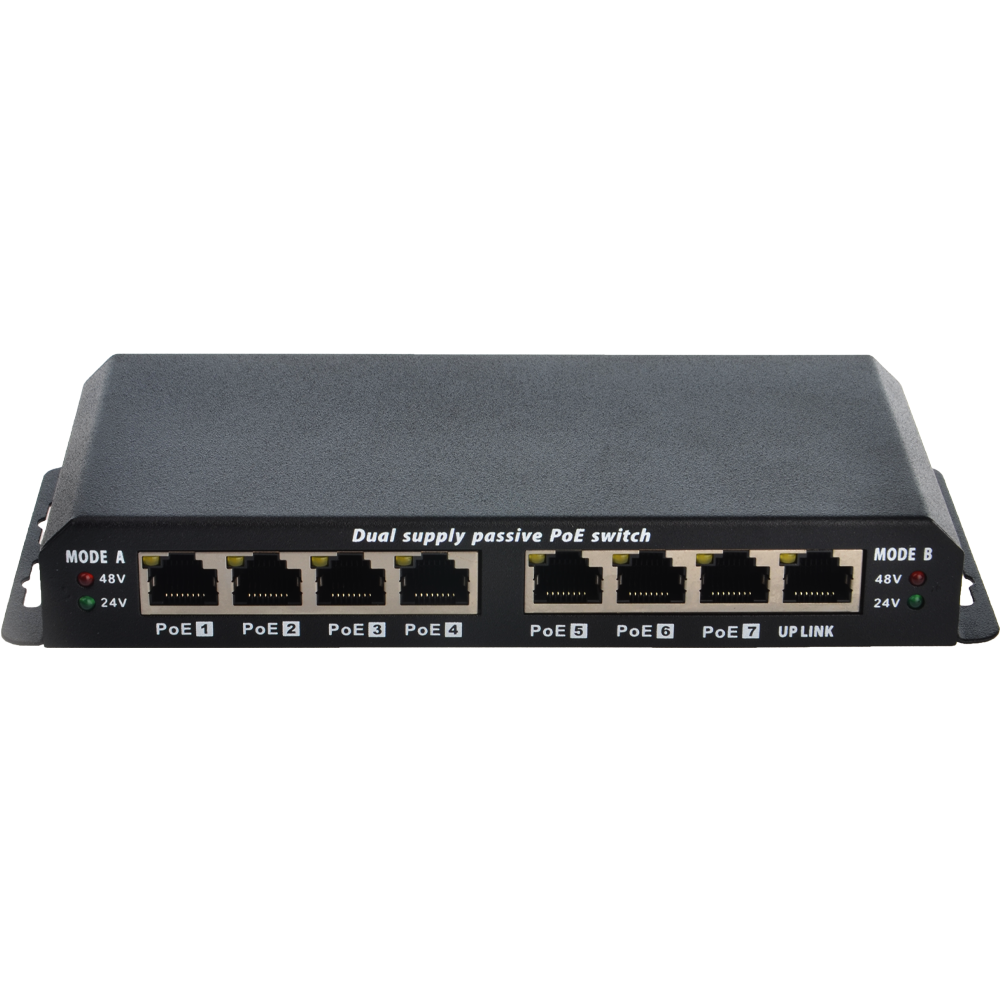

The POES-8-7 Power Source Convenient switch combines an small-high efficiency 8-port 10/100 Mbps switch with 7 PoE port .
The POES-8-7 PoE switch use an external 18VDC to 57VDC power adaptor. All 7 PoE Ethernet ports can provide 30W power as well as 10/100M data transmission over standard readily available Cat 5/ 5e / 6 cables.The POES-8-7 PoE t allow for data and power to be transmitted over a single Ethernet twisted-pair cable to the attached devices.
The POES-8-7 switches is Power Source Equipment (PSE) and fully compatible with Powered Devices (PD) that comply with the passivet PoE standard, allowing users to attach any PoE compliant device such as wireless Access Points (APS), VOIP phone, IP camera, printer and Network Attached Storage (NAS) to the PoE Switch without requiring additional power.
On a network. The unit is designed with home and small business users in mind and is a cost effective solution for environments where AC power is not available or too costly to install.
FEATURE
8 switch port swi th 10 /100 auto detect operation with status LED
Available power supply options
18 volts , 24 volts , 48 volts 56 volts
30 watts , 60 watts , 120 watts
100 to 240 volt AC input, 50 or 60 Hz high efficiency
7 always on PoE outputs with either Mode A and/or Mode B
Mod e A power and data on pins 1 2 (-) and 36 (+)
Mode B power or pins 4 5 (+) and 7 8 (-) with data on pins 1 2 and 3 6
Dual PTC fuses on each PoE output port
One 650ma fuse per port for Mode A
One 1000ma fuse per port for Mode B
18 volt to 56 volt operation
3 power supply inputs
2 x 2 .1mm power connectors, center positive
Mode A input with LED status
Mode B input with LED status
LED indicates 18/24 volt operation or 48/56 volt operation
Maximum input current per mode – 2 .5 amps
Mode B PoE power input from the uplink port – 1.25 amp
Dual Power supply operation
Red undancy - 48v 802.3af only
Load balancing – 48v 802.3af only
Mixed voltage – Mode A at 48v and Mode B at 24v
Uplink port 10/100mb
No PoE voltage out
Auto detect 568A or 568B connections
802.3af emulation ( always on , no auto negotiation )
48 volt in either A or B modes
Available power supply options
18 volts , 24 volts , 48 volts 56 volts
30 watts , 60 watts , 120 watts
100 to 240 volt AC input, 50 or 60 Hz high efficiency
7 always on PoE outputs with either Mode A and/or Mode B
Mod e A power and data on pins 1 2 (-) and 36 (+)
Mode B power or pins 4 5 (+) and 7 8 (-) with data on pins 1 2 and 3 6
Dual PTC fuses on each PoE output port
One 650ma fuse per port for Mode A
One 1000ma fuse per port for Mode B
18 volt to 56 volt operation
3 power supply inputs
2 x 2 .1mm power connectors, center positive
Mode A input with LED status
Mode B input with LED status
LED indicates 18/24 volt operation or 48/56 volt operation
Maximum input current per mode – 2 .5 amps
Mode B PoE power input from the uplink port – 1.25 amp
Dual Power supply operation
Red undancy - 48v 802.3af only
Load balancing – 48v 802.3af only
Mixed voltage – Mode A at 48v and Mode B at 24v
Uplink port 10/100mb
No PoE voltage out
Auto detect 568A or 568B connections
802.3af emulation ( always on , no auto negotiation )
48 volt in either A or B modes
SPECIFICATION
Input 100-240V AC 50/60Hz
Output 18 TO 56 V 90W (Min)
Data 1/2&3/6
Power 12/36(Mode A) 45/78(Mode B)
Data In Connects PC/HUB/Switch
Weight 0.5Kg
Ethernet Cable TIA/EIA 568 Cat. 5
Data rate 10/100Mbps
Connector RJ-45
Operating Temperature 0°C ~ 40°C
Storage Temperature -40°C~+70°C
Operating Humidity 10%~80%RH
Storage Humidity 5%~90%RH
Certification CE & FCC
Case of material metal work material
Dimensions 192mm×82mm×27mm
Output 18 TO 56 V 90W (Min)
Data 1/2&3/6
Power 12/36(Mode A) 45/78(Mode B)
Data In Connects PC/HUB/Switch
Weight 0.5Kg
Ethernet Cable TIA/EIA 568 Cat. 5
Data rate 10/100Mbps
Connector RJ-45
Operating Temperature 0°C ~ 40°C
Storage Temperature -40°C~+70°C
Operating Humidity 10%~80%RH
Storage Humidity 5%~90%RH
Certification CE & FCC
Case of material metal work material
Dimensions 192mm×82mm×27mm
