Quick Details
-
Brand Name:
-
U-ONE
-
Voltage:
-
220/380v
-
Motor:
-
AC&DC
-
Motor Brand:
-
Customized
-
Certification:
-
CE&CCC
-
Motor Frequency:
-
50/60Hz
-
Body of fan:
-
Metal
-
Weight:
-
23-170KG
-
Fan type:
-
Axial
-
Fan noise:
-
≤60
-
Fan Diameter:
-
2.6-8 meters
-
Blade:
-
6 pcs
Quick Details
-
Mounting:
-
Ceiling Fan
-
Power:
-
0.4-1.5kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
U-ONE
-
Voltage:
-
220/380v
-
Motor:
-
AC&DC
-
Motor Brand:
-
Customized
-
Certification:
-
CE&CCC
-
Motor Frequency:
-
50/60Hz
-
Body of fan:
-
Metal
-
Weight:
-
23-170KG
-
Fan type:
-
Axial
-
Fan noise:
-
≤60
-
Fan Diameter:
-
2.6-8 meters
-
Blade:
-
6 pcs

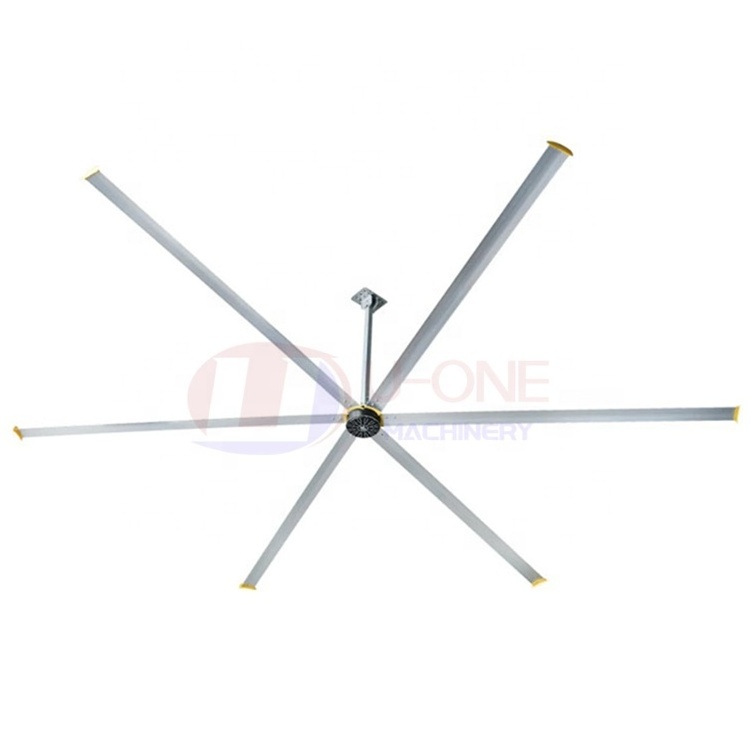

OUTER ROTOR MOTOR CEILING FAN
1.Production introduction
Brushless carbon,no hall,DC drive,high torque permanent magnet brushless motor has the characteristics of small size,energy saving and power saving.
2.Production Specification
|
ITEM
|
POWER
(KW)
|
VOLTAGE
(V)
|
DIAMETER
(M)
|
BLADE
(PCS)
|
RPM
|
AIR VOLUME(m³/min)
|
NOISE
(DB)
|
WEIGHT(KG)
|
COVER AREA
(㎡)
|
|
UO-YCWZ7300M-6
|
1.5
|
380/220
|
7.3
|
6
|
50
|
10800
|
≤60
|
106
|
900
|
|
UO-YCWZ6200M-6
|
1.4
|
380/220
|
6.2
|
6
|
60
|
9800
|
≤60
|
86
|
800
|
|
UO-YCWZ5200M-6
|
1.2
|
380/220
|
5.2
|
6
|
75
|
8600
|
≤60
|
78
|
700
|
|
UO-YCWZ5100M-6
|
1.2
|
220
|
5.1
|
6
|
65
|
7600
|
≤60
|
71
|
600
|
|
UO-YCWZ4200M-6
|
1.2
|
220
|
4.2
|
6
|
95
|
6600
|
≤60
|
65
|
500
|
|
UO-YCWZ5100M-5
|
1.2
|
220
|
5.1
|
5
|
65
|
7200
|
≤60
|
69
|
600
|
|
UO-YCWZ4200M-5
|
1.2
|
220
|
4.2
|
5
|
95
|
6200
|
≤60
|
63
|
500
|
|
UO-YCWZ3800M-5
|
0.4
|
220
|
3.8
|
5
|
80
|
3900
|
≤60
|
30
|
400
|
|
UO-YCWZ3200M-5
|
0.4
|
220
|
3.2
|
5
|
98
|
3600
|
≤60
|
25
|
200
|
|
UO-YCWZ2600M-5
|
0.4
|
220
|
2.6
|
5
|
140
|
3200
|
≤60
|
23
|
180
|
3.Production Advantages
The large industrial fan directly driven by the permanent magnet synchronous motor is directly driven by the motor, eliminating the need for reducer links, no gears and high-speed bearings, thus eliminating the need for oil replacement and reducing the replacement and maintenance of gear bearings. It is really maintenance-free, which greatly improves the service life of industrial fans and brings users a more reliable experience.
As long as the temperature rise of the motor is effectively controlled (the ambient temperature of the traditional model can be used), the life of the large industrial fan directly driven by the permanent magnet synchronous motor uses rare earth metal as the outer rotor, which can save industrial fans. A lot of secondary purchase costs.
Except for the full enclosure structure on the side of the motor, the upper and lower parts are all hollow structures. The upper part uses a fan's forged aluminum alloy chassis and the motor upper cover to effectively combine, and the lower part uses a streamlined shroud designed based on the principles of fluid mechanics, so that the motor coil windings and other intemal structures are effectively enclosed, and the motor can be operated. The generated heat is taken to the outside to be released to a large extent, and it can effectively protect the sundries from entering the motor to cause safety faults.
GEAR MOTOR CEILING FAN
1.Production introduction
We adopt high quality drive motor, with joint venture imports bearing structure increase alloy steel shaft structure design, with low backlash assembly process and grinding process, low noise, the motor insulation class is higher than the German class H standards, high efficiency and energy saving. The controller is equipped with the displacement transducer, infinitely adjustable- speed, its built- in rf filter anti-jamming ability; It is equipped with the function of automatic alarm and immediately cut off output in case of accidents such as loss of voltage, undervoltage, lack of phase, over current, overload and over temperature protection, to ensure that the equipment control system has reliable intrinsic safety performance.
2.Production Specification
|
ITEM
|
POWER
(KW)
|
VOLTAGE
(V)
|
DIAMETER
(M)
|
BLADE
(PCS)
|
RPM
|
AIR VOLUME(m³/min)
|
NOISE
(DB)
|
WEIGHT(KG)
|
COVER AREA
(㎡)
|
|
UO-JS8000M
|
1.5
|
380/220
|
8
|
6
|
50
|
13500
|
≤45
|
135
|
1500
|
|
UO-JS7300M
|
1.5
|
380/220
|
7.3
|
6
|
50/55
|
10800
|
≤45
|
130
|
1200
|
|
UO-JS6200M
|
1.5
|
380/220
|
6.2
|
6
|
72
|
9800
|
≤45
|
120
|
1100
|
|
UO-JS5200M
|
1.5
|
380/220
|
5.2
|
6
|
81
|
8600
|
≤45
|
115
|
1000
|
|
UO-JS4000M
|
1.5
|
380/220
|
4.2
|
6
|
93
|
6800
|
≤45
|
105
|
900
|
INNER ROTOR MOTOR CEILING FAN
1.Production introduction
1). With the high energy efficiency, low energyconsumption, energy saving and power saving brought by the outer rotor
2). Equipped with multiple safety insurance protection
Brushless carbon,no hall,DC drive,high torque permanent magnet brushless motor has the characteristics of small size,energy saving
and power saving.
and power saving.
2.Motor advantages
1). Low cost of maintenance
2). Quiet, energy-saving (can be used in various places)
3). Long life
4). Small installation space (safe height space 90cm can be installed)
Due to the good structural sealing performance of the inner rotor motor, the protection level can reach IP64, moisture and dust can not enter, there is no need to reserve heat dissipation holes, and the inner rotor motor shell reserves heat sinks, which has good heat dissipation performance and will not cause poor heat dissipation. Demagnetization phenomenon, the inner rotor permanent magnet direct drive motor is equipped with a temperature sensor, which senses the motor temperature and automatically over-temperature to achieve protection
3.Production Specification
|
ITEM
|
POWER
(KW)
|
VOLTAGE
(V)
|
DIAMETER
(M)
|
BLADE
(PCS)
|
RPM
|
AIR VOLUME(m³/min)
|
NOISE
(DB)
|
WEIGHT(KG)
|
COVER AREA
(㎡)
|
|
UO-YCNZ8000M
|
1.5
|
380/220
|
8
|
6
|
50
|
13500
|
≤40
|
170
|
1500
|
|
UO-YCNZ7300M
|
1.5
|
380/220
|
7.3
|
6
|
50/55
|
10800
|
≤40
|
165
|
1200
|
|
UO-YCNZ6200M
|
1.5
|
380/220
|
6.2
|
6
|
72
|
9800
|
≤40
|
155
|
1100
|
WEIFANG U-ONE MACHINERY EQUIPMENT CO.,LTD is a company engaged in temperture controlled equipments,water treatment equipments and chemical raw materials, electronic products trading company. The company was established in May 2013, has many famous enterprises at home and abroad (such as SIEMENS MOTOR company) to establish a long-term friendly business relationship. Company mainly engaged in exhaust fan,cooling pad,evaporative air cooler,heater and water treatment products.
Since its inception continue to absorb a variety of talents, improve product quality, improving staff quality, in order to grow
their companies. Strict quality guarantee system and perfect management system, high-quality products after-sales service is our foothold in this, my company of "quality first, reputation first" principle, provide customers with quality and quantity of various types of products. Always uphold the "quality, integrity and pragmatic, motivated, service-oriented" business philosophy, and applies the company's management and operating among. The face of fierce competition, the company system is constantly being improved, relying on science and technology, continuously improve the technology content of products sold, for society, customers and companies to create a higher market value. My company has been in good faith to create enterprises, to credit management market, has won a good reputation, also won the respect of their domestic counterparts.
Business strictly in accordance with relevant state laws, regulations and rules of the WTO requirements management according to law, actively participate in regional economic cooperation, recent years the company has reached annual sales of as much as 5,000,000, business prospects and good, the next time, My company will expand the scale of operation and steady development of corporate economic, sincerely seeking partners, good faith cooperation and seek common development, writing a new chapter in high-tech electronics.
their companies. Strict quality guarantee system and perfect management system, high-quality products after-sales service is our foothold in this, my company of "quality first, reputation first" principle, provide customers with quality and quantity of various types of products. Always uphold the "quality, integrity and pragmatic, motivated, service-oriented" business philosophy, and applies the company's management and operating among. The face of fierce competition, the company system is constantly being improved, relying on science and technology, continuously improve the technology content of products sold, for society, customers and companies to create a higher market value. My company has been in good faith to create enterprises, to credit management market, has won a good reputation, also won the respect of their domestic counterparts.
Business strictly in accordance with relevant state laws, regulations and rules of the WTO requirements management according to law, actively participate in regional economic cooperation, recent years the company has reached annual sales of as much as 5,000,000, business prospects and good, the next time, My company will expand the scale of operation and steady development of corporate economic, sincerely seeking partners, good faith cooperation and seek common development, writing a new chapter in high-tech electronics.
Q:Is your company a manufacturer or a trading company?
A:We are manufacturers,we have own trade company, we also have our own factory and design, sales team.
Q:Can you make our own brand?
A:Yes,we can provide OEM &ODM service. And we can make your brand on the products.
Q:What kind of voltage can you make, can you customize the voltage?
A:For exhaust fans and air coolers, the standard voltage we produce is 3 phase 380V 50Hz, or 1 phase 220V 50Hz, the input power is depends on the type of product. We can customize the voltage and frequency of the motor according to your requirements.
Q:What is your minimum order quantity?
A:Usually,MOQ of exhaust fan and air cooler is 10 sets, MOQ of cooling pad is one 20’ container. Small quantity we also can do,but the cost will be high.
Q:Can I have a sample to test before ordering in large quantities?
A:Yes,of course. We can offer 1 set sample for evaluation and testing.
Q: How is your after-sale service?
A: we will guide you to install and use the machine and we will provide a certain percentage of free spare parts.If your motor break in the guaranty year Period, we will send you a fresh one or compensating you for the cost of repairing the machine by giving you the discount of the same amount in the next order.
A:We are manufacturers,we have own trade company, we also have our own factory and design, sales team.
Q:Can you make our own brand?
A:Yes,we can provide OEM &ODM service. And we can make your brand on the products.
Q:What kind of voltage can you make, can you customize the voltage?
A:For exhaust fans and air coolers, the standard voltage we produce is 3 phase 380V 50Hz, or 1 phase 220V 50Hz, the input power is depends on the type of product. We can customize the voltage and frequency of the motor according to your requirements.
Q:What is your minimum order quantity?
A:Usually,MOQ of exhaust fan and air cooler is 10 sets, MOQ of cooling pad is one 20’ container. Small quantity we also can do,but the cost will be high.
Q:Can I have a sample to test before ordering in large quantities?
A:Yes,of course. We can offer 1 set sample for evaluation and testing.
Q: How is your after-sale service?
A: we will guide you to install and use the machine and we will provide a certain percentage of free spare parts.If your motor break in the guaranty year Period, we will send you a fresh one or compensating you for the cost of repairing the machine by giving you the discount of the same amount in the next order.
