Quick Details
-
Model Number:
-
1012
-
Max. Current:
-
1.5A
-
Max. Working Pressure:
-
5.5MPa
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NineGood
-
Model Number:
-
1012
-
Max. Current:
-
1.5A
-
Max. Working Pressure:
-
5.5MPa
differential adjustable pressure control switch
Advantages:
1.professional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:
1, Switching type : SPDT NC+NO, Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: M10X1 .
3, Electrical connection: Wire lead .
4, Voltage: 5-110VDC, 5-250VAC; Resistance load : 1.5A, Inductive load : 0.5A.
5, Fluid media: gas & air & wind .
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP00.
8, Ambient temperature : -40°C ~65 °C(Selectable) ,
Medium temperature : -10°C ~100 °C(Selectable). .
9, Model: ( Selectable ).
10, Working pressure: -100~0KPa,-50~0KPa; -100~+100KPa;
0~0.3MPa;0~0.5MPa,0.5~1.0MPa,1.0~1.5MPa,
1.5~2.5MPa,2.5~3.5MPa,3.5~4.5MPa,4.5~5.5MPa
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date .
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free
Certificate:

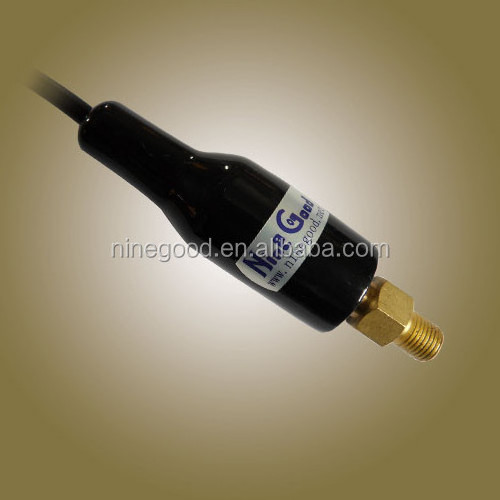

Production Photo:
Dimension Drawing:
