Quick Details
-
Weight:
-
10kg
-
Size:
-
0.5cbm
-
Power:
-
0
-
Weight (KG):
-
10 kg
-
Product name:
-
Water Filter
-
Application:
-
Filtration
-
Function:
-
Water Purification Plant
-
Filter Media:
-
Cartridge / Bag
-
Flow rate:
-
500-20000L/H
-
After Warranty Service:
-
Online support,Spare parts
-
MOQ:
-
1 Piece
-
Packing:
-
Seaworthy Package
-
Type:
-
stainless steel filter
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
STK
-
Material:
-
Carton / Wooden, Stainless Steel
-
Weight:
-
10kg
-
Size:
-
0.5cbm
-
Power:
-
0
-
Weight (KG):
-
10 kg
-
Product name:
-
Water Filter
-
Application:
-
Filtration
-
Function:
-
Water Purification Plant
-
Filter Media:
-
Cartridge / Bag
-
Flow rate:
-
500-20000L/H
-
After Warranty Service:
-
Online support,Spare parts
-
MOQ:
-
1 Piece
-
Packing:
-
Seaworthy Package
-
Type:
-
stainless steel filter
Product Description

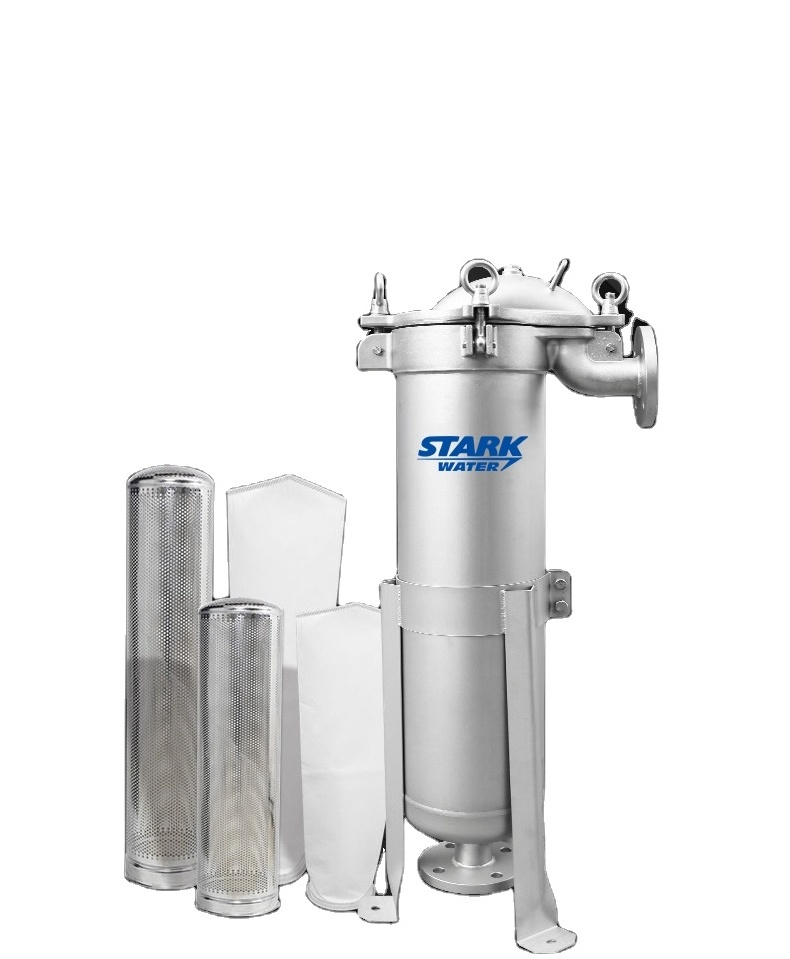

Stainless steel bag filters range from single-bag, double-bag and multi-bag filters, all of which are closed filters, and their working principle is pressure filtration. The whole bag filter system includes three parts: filter container, support basket and filter bag. The liquid to be filtered flows in from the top of the filter bag supported by the support basket, which makes the liquid evenly distributed on the entire filter surface, so that the flow distribution in the entire filter medium is a uniform surface without the negative effect of turbulence.
Specification
|
Model
|
Style
|
Size
|
In/out let
|
|
STK-BF-450‘1
|
Clamp type (with legs possible)
|
D195*450*1 Bag
|
1 .5 inch
|
|
STK-BF-810’1
|
Clamp type (with legs possible)
|
D195*810*1 Bag
|
1 .5 inch
|
|
STK-BF-810’2
|
Quick opening flange type (with legs possible)
|
D450*810*2 Bag
|
3 inch
|
|
STK-BF-810’3
|
Quick opening flange type (with legs possible)
|
D450*810*3 Bag
|
3 inch
|
|
STK-BF-810’4
|
Quick opening flange type (with legs possible)
|
D500*810*4 Bag
|
4 inch
|
|
STK-BF-810’5
|
Quick opening flange type (with legs possible)
|
D650*810*5 Bag
|
5 inch
|
|
STK-BF-810’6
|
Quick opening flange type (with legs possible)
|
D650*810*6 Bag
|
5 inch
|
|
STK-BF-810’8
|
Quick opening flange type (with legs possible)
|
D700*810*8 Bag
|
6 inch
|
|
STK-BF-810’9
|
Quick opening flange type (with legs possible)
|
D800*810*9 Bag
|
6 inch
|
|
STK-BF-810’10
|
Quick opening flange type (with legs possible)
|
D900*810*10 Bag
|
8 inch
|
