Quick Details
-
Brand Name:
-
YILI
-
Motor Power:
-
3kw
-
Charging Capacity:
-
560L
-
Reclaiming capacity:
-
350L
-
Speed of Mixing Drum:
-
30r/min
-
Water Supply Mode:
-
Pump
-
Outline Dimension:
-
2760x2140x2780mm
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
1250 kg
-
Color:
-
Customer's Requirement
-
Engine:
-
Diesel/Electric
-
Function:
-
Mixing Sand Stone Cement
Quick Details
-
Mixing Power:
-
5.5kw
-
Productivity:
-
15M³/H
-
Place of Origin:
-
Henan
-
Brand Name:
-
YILI
-
Motor Power:
-
3kw
-
Charging Capacity:
-
560L
-
Reclaiming capacity:
-
350L
-
Speed of Mixing Drum:
-
30r/min
-
Water Supply Mode:
-
Pump
-
Outline Dimension:
-
2760x2140x2780mm
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
1250 kg
-
Color:
-
Customer's Requirement
-
Engine:
-
Diesel/Electric
-
Function:
-
Mixing Sand Stone Cement
Products Introduction

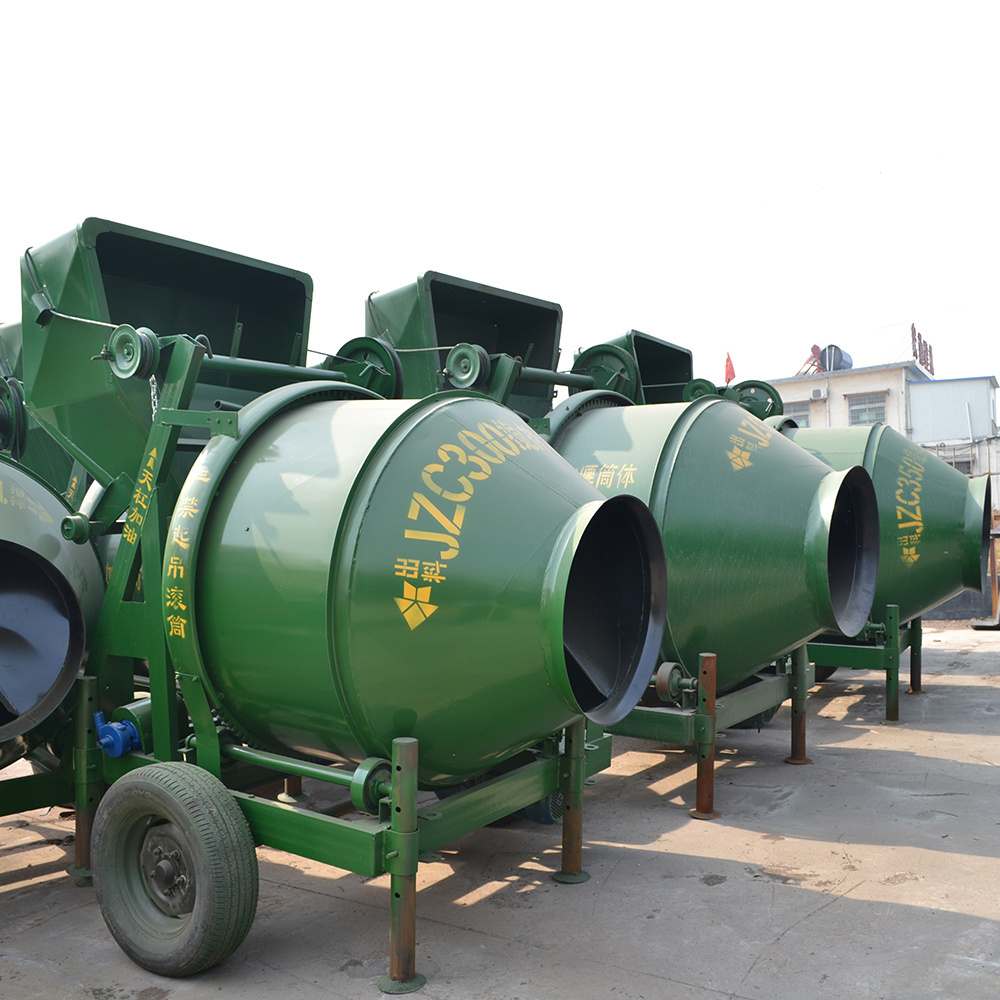

JZC series drum rotating concrete mixer adopts gear to drive the mixing drum. The motor drives forward the gear on the drum to mix concrete and drum reverse to discharging.
JZM series drum rotating concrete mixer adopts roller friction to drive the mixing drum. The motor drives roller and the friction between roller and drum wall drives the mixing drum. JZM concrete mixer can mix big volume >1m 3 .
Product Paramenters
|
Item
|
JZC350
|
JZC500
|
JZC750
|
||
|
Charging/Discharging
|
560/350L
|
800/500L
|
1200/750L
|
||
|
Mixing Capacity
|
10-15m
3
/h
|
15-20m
3
/h
|
20-25m
3
/h
|
||
|
Mixing Motor
|
5.5kw
|
5.5kw
|
7.5kw
|
||
|
Lifting Motor
|
4.5kw
|
4.5kw
|
5.5kw
|
||
|
Water Pump
|
0.55kw
|
0.55kw
|
0.75kw
|
||
|
Max. Aggregates Size
|
60mm
|
60mm
|
80mm
|
||
|
Overall Size
|
2760x2140x2780mm
|
3800x2150x2850mm
|
5260x2200x5460mm
|
||
|
Weight
|
1250kg
|
1800kg
|
2200kg
|
||
|
Note:
|
Customized drum sizes 200L-3000L can be made.
|
|
|
||
