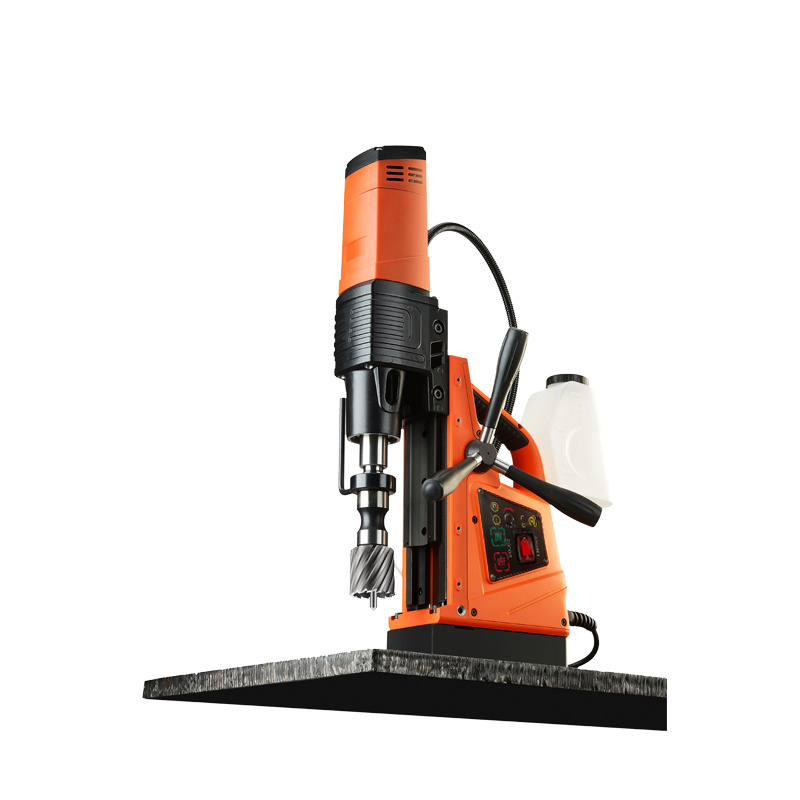

CHTOOLS High Precision 220v Magnetic Drilling Tapping Machine For Steel Plate

CHTOOLS High Precision 220v Magnetic Drilling Tapping Machine For Steel Plate

FOB Reference Price: Get Latest Price

≥1 Sets

US $450

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Drilling Speed:: 250/450

Place of Origin:: Zhejiang, China

Brand Name:: CHTOOLS

Model Number:: DX-60X

Voltage:: 220-240V, AC 220~240V

Dimension(L*W*H):: 375*230*450mm

Power (kW):: 1.5

Weight (KG):: 19 KG

Marketing Type:: New product 2021

Product name:: Magnetic Drilling Tapping Machine

Speed range:: 65%-100%

Tool Holder:: MT3

The max. tapping size:: M22

Power Frequency:: 50-60 Hz

Magnetic adhesion:: 15000 N

The max.cutting dia.( annular cutter ):: 60mm(2")

The max. cutting depth:: 75mm(3")

The max.cutting dia. ( twist drill ):: 31.5mm(1-1/4")

Quick Details

type:: Drilling & Tapping machine

Max. Drilling Dia. (mm):: 50

Range of Spindle Speed(r.p.m):: 250 - 600 r.p.m

Drilling Speed:: 250/450

Place of Origin:: Zhejiang, China

Brand Name:: CHTOOLS

Model Number:: DX-60X

Voltage:: 220-240V, AC 220~240V

Dimension(L*W*H):: 375*230*450mm

Power (kW):: 1.5

Weight (KG):: 19 KG

Marketing Type:: New product 2021

Product name:: Magnetic Drilling Tapping Machine

Speed range:: 65%-100%

Tool Holder:: MT3

The max. tapping size:: M22

Power Frequency:: 50-60 Hz

Magnetic adhesion:: 15000 N

The max.cutting dia.( annular cutter ):: 60mm(2")

The max. cutting depth:: 75mm(3")

The max.cutting dia. ( twist drill ):: 31.5mm(1-1/4")

Products Description

Product Type	DX-60X tapping magnetic drilling machine
Motor rated power	1500W
Load speed	250/450rpm
Speed range	65%-100%
Tool holder	MT3
Voltage	AC 220～240V
Power Frequency	50-60 Hz
Magnetic adhesion	15000N
The max.cutting dia.( annular cutter )	60mm (2")
The max. cutting depth	75mm ( 3" )
The max.cutting dia. ( twist drill )	31.5mm ( 1-1/4" )
The max. tapping size	M22
Stroke	170mm
The whole machine size	375mm230mm450mm
Magnetic base size	21010045mm
Total weight	19KG

Feature highlights

1. Two speeds gear box with step-less speed control bring wider range of drilling;

2. Reversible with step-less speed function, applicable to the maximum size of M22 tap;

3. 1500W high power motor can meet high efficiency drilling.

4. 15000N big suction magnetic base, better than most same types in the market;

Product packaging

Comment & FAQ

FAQ ：

What do you do?

A: Our products mainly include: Annular cutter, Magnetic drill machine, Spade drill, Hole saw, Countersink, Step drill, Rail cutter and Accessories, ect.

Can you do OEM for us?

A: OEM are welcome for us. Customers’ brand, logo, label can be customized for product and carton package, but based on a certain quantity.

Can you help us to do some change about your product?

A: Yes, special drawing and design will be evaluated by our technical department, unit cost will be calculated by finance department for your final confirmation. All procedures will be informed and confirmed with you in advance.

Can I get a sample?

A: Yes. Samples are welcome to us before mass production. But few extra cost and products cost will be charge from customer first, and sample cost will be back to customer once started mass production.

Are you a factory or trading company?

A: We are a leading professional designer & manufacturer of high-quality cutting tools with advanced technique and equipment in this line. Our company established in 1992.

Where is your company location?

A: We’re in Jiaxing city Zhejiang Province, where is by train to Jiaxing, Hangzhou or Shanghai respectively. The most convenient traffic location around SHANGHAI area.
