Quick Details
-
Material:
-
SS304
-
Follower:
-
2*8*8mm
-
Deadbolt operating:
-
Single throw
-
Type:
-
Bathroom mortise lock
-
Durability:
-
200,000 test cycles with 120N on latch bolt
-
Center distance:
-
78mm
-
Backset:
-
55mm
-
Certification:
-
CE;Warrington
-
MOQ:
-
500PCS
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
OEM
-
Product Name:
-
5578ZWC
-
Material:
-
SS304
-
Follower:
-
2*8*8mm
-
Deadbolt operating:
-
Single throw
-
Type:
-
Bathroom mortise lock
-
Durability:
-
200,000 test cycles with 120N on latch bolt
-
Center distance:
-
78mm
-
Backset:
-
55mm
-
Certification:
-
CE;Warrington
-
MOQ:
-
500PCS

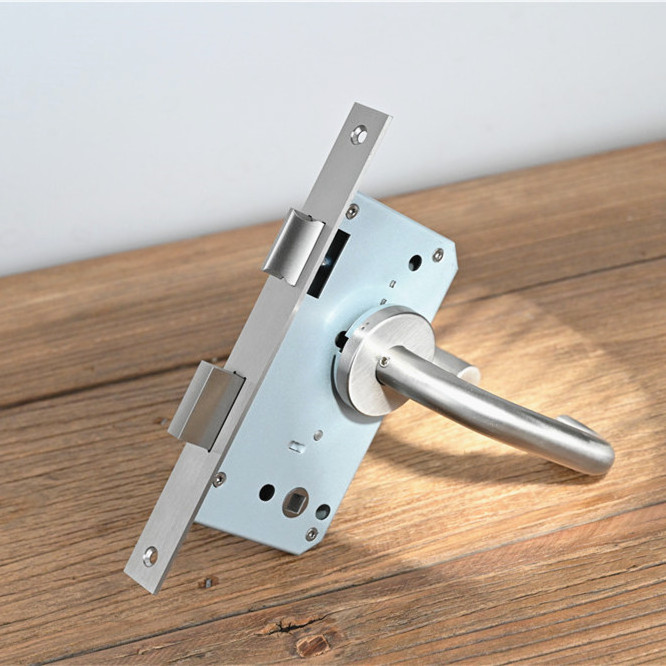

Product Description
En12209 Din18251
CE
certificate
FIRE
rated bathroom lock 5578ZWC
|
5578ZWC
|
Parameter
|
|
|
Backset
|
55mm
|
|
|
Center distance
|
78mm
|
|
|
Fire test-
Timber fire door
|
111 mins
|
|
|
Fire test-
Steel fire door
|
260 mins
|
|
|
CE certificate
(Intertek)
|
3 X 9 1 0 G - B 0 2 0
|
|
|
1. Dinmensional co-ordination to DIN18251
|
|
|
|
2.CE marked
|
|
|
|
3.Fully compliant with EN12209
|
|
|
|
4.Single throw bolt action
|
|
|
|
5.Lock functios: bathroom lock
|
|
|
Product Information
|
Intended Use
|
Yes/No
|
Comments
|
Reference
|
|
On hinged doors
|
Yes
|
Locks are tested for side force and end force
|
EN12209:2016
|
|
Supported lock application
|
Yes
|
Tested in accordance with 5.5.1 and 5.11.3 using the fixture 20 or 29 and/or 5.11.5 using fixture 32 with support
|
|
|
Suitability for use on smoke control /fire resistance doorset
|
Yes
|
See manufacturers declaration referring to a test according to EN 1634–1 or declaration of melting point of the relevant latching parts and if applicable the duration of the proven smoke control and/or fire resistance
|
|
|
Lock for use with unsprung handle
|
Yes
|
The lock shall conform to 5.4.6, minimum follower restoring torque of 0,8 Nm
|
|
CE Certifications
Installation Instructions
Packing&Shipping
1PC/BOX(can be color one with your brand design), 20PCS/CTN, 1000PCS/PALLET
Product Testing
Durability test (Hinge)
Durability test (Mortise lock)
Test temperature
Durability test (Handle)
Durability test(Cylinder)
Corrosion resistance
Company Introduction
COMPANY VALUES:
Concentration, Innovation, Passion, Perfection.
HANRUI
company has 260 workers which covers 30,000 square meters, specialize in Architectural hardware for fire doors (Mortise lock / Lever handle / Profile cylinder / Hinge).
We have passed Quality Management System: ISO9001:2015; Fire rated Products have got relevant CE certification \ Fire test and
Performance certification.
1.
Mortise lock
have CE certification according to EN12209 and EN1634-1
2.
Hinge
have CE certification according to EN1935 and EN1634-1
3.
Brass profile cylinder
has been verified according to EN1303
4.
Lever handle
has been verified according to EN1906
We can give you authorization to do Co-listing CE under your company name.
Widely used in school, hospital, office building, supermarket, bank,airport facilities, gymnasium, public building
and so on.
