Heating Cable mat, electric heating, Floor Heating SH KOREA SHM-2P-165 heated floor cable

SH KOREA is the industry leader of eco-friendly and high-efficiency heating systems and is committed to manufacturing high-efficiency heating films and heating cables. As the oil price is continuously rising and global warming is getting worse, the demand for the eco-friendly and high efficient heating system has risen higher than ever. SH KOREA’s heating system is the key.  Our heating system is powered by electricity. Pollution and heating cost is lower than any other heating system.

Our heating system, Hot Cable, is a relatively new system to the western world – floor heating. Unlike air heater, Hot Cable floor heating system heats up the floor.  With radiated heat, the floor gets warm and eventually, the entire room gets warm.  The air doesn’t get dry.  Since heat tends to spread upward, with our system, the entire room gets warmed up. The conventional air heating system will only heat up upper air.

The hot cable is developed with a precisely calculated resistant value per cable length.  The three-layer coating keeps the heating wire and safe and firm.  With a superb and robust structure, Hot Cable can be installed at any place.  Safe and prolonged heating pleasure is guaranteed with our Hot Ca ble.

The Superiority of “HOT-CABLE” - Mat

1.    “Hot-Cable” is with SAFE structure.

Covered with three-layer top quality covering materials, “Hot-Cable” is safe from overheating and electromagnetic fields.

PTFE which can withstand heat up to 200 ℃ serves as the primary insulation, covering the heating wire.  Then, tin-plated braided around PTFE coating for electromagnetic field shielding.  The PVC sheath covers the braided shield.  The PVC is flame-retardant and withstands heat up to 105 ℃ .

2.    “Hot Cable” is efficient and economic

“Hot-Cable” is easy to install.  “Hot Cable” is powered by electricity.  Such an easy and convenient power source saves time and money. Hot Cable’s robust structure makes the Cable virtually semi-permanent.  Unless you decide to tear down the building, the Cable is there to heat up wherever you want.

Also, with “Hot-Cable”, partial and individual heating is possible.  You don’t have to heat up the entire room to heat up the partial space you want.

Heat up only places that you want to heat up. With Hot Cable, it is possible.

Save Energy and Money.

3.    “Hot-Cable” is eco-friendly

No dust.

No smoke.

No pollution.

“Hot-Cable” heating system is a clean and eco-friendly heating system.  “Hot-Cable” is a wonderful replacement for conventional gas or oil operated heating systems.

4.    “Hot Cable” – Mat type is easy to Install

Just clean and flatten surfaces.

Install the insulation pad.

Unroll the Hot Cable on the insulation pad.

If you need to change direction, just cut the wire mesh and turn 180 degrees.

Finish with any finishing material you want and Done!

Hot Cable Mat type has fiberglass mat built-in.  There is no need to install the mesh and fix the cable on the mesh.

Technological Advantage of “Hot-Cable”

1.    “Hot-Cable” is with Robust Structure

Not many companies use PTFE for initial insulation though it is safer.  Hot-Cable is with the industry’s top-quality PTFE for its primary insulation as SAFETY is our top concern, not profit.

1) Nichrome(Ni-Cr) alloy 2P heating element

2) PTFE primary insulation

3) Tinned copper braid

4) PVC out sheath(heat resistant 105 ℃ )

2.    “Hot-Cable” is Patented!

Specification - Various types to meet your needs!

“Hot-Cable” comes in various sizes and specifications to meet your needs.

* Width: 50cm, Maximum temperature: 75 ℃ (normal temperature), Maximum exposure temp.: 105 ℃ , AC110V- OEM production

Developed and Made in Korea

We have dedicated teams for research, engineering, and production.  Our government recognized lab never stops on developing a better heating system.  Our engineers are always at our factory to produce a state of the art heating materials.  From initial design to acquiring raw materials, from setting up production to shipping, every process is done in Korea - the home of the floor heating system.

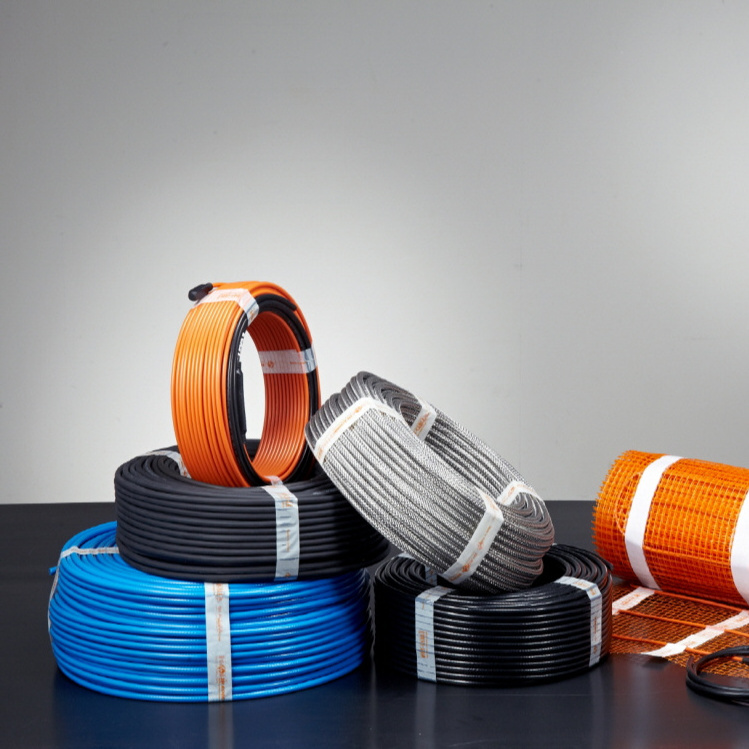

Packing

Hot Cable is packed as a roll in a box per specified size.
