Quick Details
-
Dimension(L*W*H):
-
2005*795*1260mm
-
Weight:
-
530kg
-
Bearing:
-
Hengda Air Compressor
-
Safe valve::
-
imported
-
Motor::
-
Siemens
-
Air valve::
-
Hoerbiger
-
Cooling type::
-
Air cooling .
-
PLC control system CPU:
-
Siemens
-
Output pressure switch:
-
Schneider
-
Electric control box:
-
Nanjing Hengda
-
certification:
-
CE,ISO9001:2000,GC,IAF,CNAS
-
Certification:
-
CE,GC, IAF,CNAS,ISO9001:2000
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Suzhou Yuda
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2005*795*1260mm
-
Weight:
-
530kg
-
Bearing:
-
Hengda Air Compressor
-
Safe valve::
-
imported
-
Motor::
-
Siemens
-
Air valve::
-
Hoerbiger
-
Cooling type::
-
Air cooling .
-
PLC control system CPU:
-
Siemens
-
Output pressure switch:
-
Schneider
-
Electric control box:
-
Nanjing Hengda
-
certification:
-
CE,ISO9001:2000,GC,IAF,CNAS
-
Certification:
-
CE,GC, IAF,CNAS,ISO9001:2000

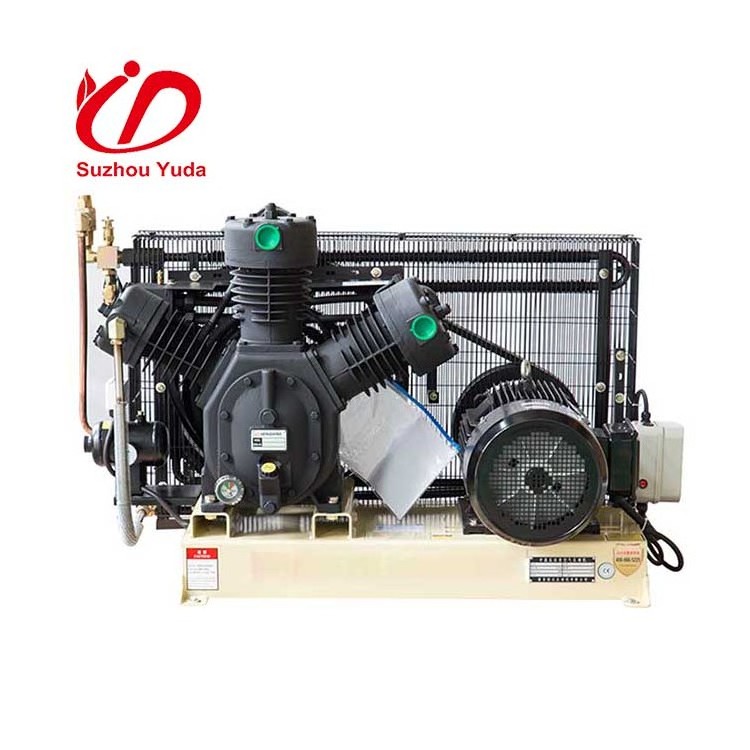

30bar 7.5kw cng compressor for home 2014 high pressure air compressor
1. Main data
|
Model |
Air capacity (M3/min) |
Working pressure (Bar ) |
Power(Kw) |
Speed(r.p.m) |
Weight(Kg) |
|
VH-0.7/30 |
0.7 |
30BAR |
7.5 |
680 |
310 |
|
WH-1.0/30 |
1.0 |
11 |
600 |
430 |
|
|
WH-1.2/30 |
1.2 |
15 |
760 |
450 |
|
|
WH-1.5/30 |
1.5 |
18.5 |
790 |
520 |
|
|
WH-2.0/30 |
2.0 |
22 |
670 |
610 |
|
|
WH-2.35/30 |
2.35 |
25 |
760 |
620 |
|
|
3-WH-3.6/30 |
3.6 |
3*15 |
700 |
1580 |
|
|
VH-0.17/35 |
0.17 |
35BAR |
2.2 |
660 |
110 |
|
VH-0.65/35 |
0.65 |
9.0 |
605 |
420 |
|
|
WH-1.1/35 |
1.1 |
15 |
900 |
475 |
|
|
WH-2.0/35 |
2.0 |
22 |
670 |
615 |
|
|
WH-2.2/35 |
2.2 |
25 |
735 |
600 |
|
|
VH-0.3/40 |
0.3 |
40BAR |
5.5 |
500 |
290 |
|
WH-1.0/40 |
1.0 |
11 |
790 |
470 |
|
|
49SH-2.6/40 |
2.6 |
25 |
625 |
900 |
|
|
49SH-3.0/40 |
3.0 |
30 |
695 |
920 |
|
|
2-49SH-6.0/40 |
6.0 |
2*30 |
695 |
2100 |
|
|
4-WH-4.0/40 |
4.0 |
4*11 |
790 |
2400 |
|
|
6-WH-6.0/40 |
6.0 |
6*11 |
790 |
3600 |
2. Inspection method:
CAGI
3. Inspection standard:
-AISI
-AMS
-ANSI
-ASME
-ASTM
-AGMA
-AGMA
-NEMA
-VDI
-CAGI-NPEUROP
-MS
4. Our Configuration
|
item |
Configuration item |
Manufacturer |
|
1 |
piston compressor main components |
Nanjing Hengda |
|
2 |
Automatic splashing lubrication system |
Nanjing Hengda |
|
3 |
Air cooled middle cooler |
Nanjing Hengda |
|
4 |
Oil damping (between stages, output) shockproof pressure gauge |
Domestic high quality |
|
5 |
Safety valves between stages |
Domestic high quality |
|
6 |
Air cooled after cooler |
Nanjing Hengda |
|
7 |
Automatic drain valve |
Domestic high quality |
|
8 |
Low oil level protection device |
German imported and installed in Hengda |
|
9 |
Output pressure switch |
Schneider |
|
10 |
Electric control box |
Nanjing Hengda |
|
11 |
Imported ac contractor, circuit breaker, thermal relay, etc |
Schneider, etc. |
|
12 |
Output check valve |
Nanjing Hengda |
|
13 |
timer |
Domestic high quality |
|
14 |
Oil sight glass |
Nanjing Hengda |
|
15 |
Low oil level protection switch |
Nanjing Hengda |
|
16 |
PLC control system CPU |
Siemens |
|
17 |
Color touch screen |
Siemens |
|
18 |
Analog, input and output module |
Siemens |
|
19 |
motor |
Siemens |
5. photo:
....
