Quick Details
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNAISO
-
Model Number:
-
JDJ-3.6.10
-
Product name:
-
JDJ-3.6.10 voltage transformer
-
Frequency:
-
50Hz
-
Rated voltage:
-
3kV/ 6kV/ 10kV
-
Type:
-
Oil-filled Transformer
-
Certification:
-
ISO9001
-
Material:
-
Copper
-
Core material:
-
CRGO Silicon Steel Core
-
Standard:
-
IEC60076
-
Package:
-
Standard Package
-
Port:
-
Ningbo/ Shanghai
Quick Details
-
Usage:
-
Power
-
Phase:
-
Single
-
Coil Structure:
-
TOROIDAL
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNAISO
-
Model Number:
-
JDJ-3.6.10
-
Product name:
-
JDJ-3.6.10 voltage transformer
-
Frequency:
-
50Hz
-
Rated voltage:
-
3kV/ 6kV/ 10kV
-
Type:
-
Oil-filled Transformer
-
Certification:
-
ISO9001
-
Material:
-
Copper
-
Core material:
-
CRGO Silicon Steel Core
-
Standard:
-
IEC60076
-
Package:
-
Standard Package
-
Port:
-
Ningbo/ Shanghai

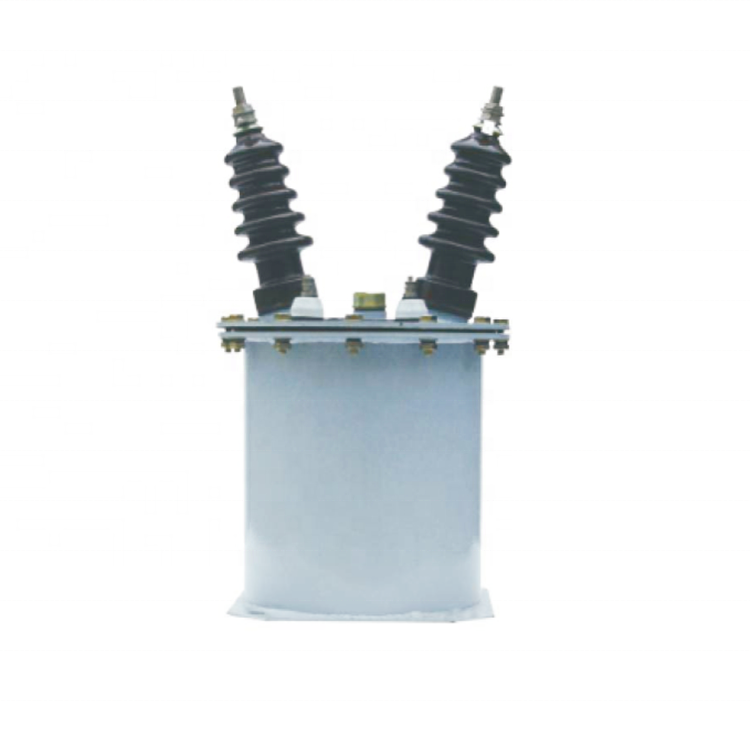

Oil Immersed 10kV Voltage Transformer With Manufacturer Price
Oil Immersed 10kV Voltage Transformer
Summary transformer oil name/ transformer oil price/ Oil Voltage 10kV Transformer with
transformer oil name/ transformer oil price/ Oil Voltage 10kV Transformer with
DJ Products for the oil -immersed unearthed voltage transformer for rated frequency 50Hz power system’s operating voltage ,power measurement and relay protection,This type of voltage transformer total JDJ-10 two kinds
Type designation transformer oil name/ transformer oil price/ Oil Voltage 10kV Transformer with
Condition of use transformer oil name / transformer oil price / Oil Voltage 10kV Transformer with
1. The installation site altitude does not exceed 4000m
2. Ambient temperature is -5℃~+40℃
3. Air relative humidity less than 85%(20℃)
4. This Product has passed the direct vibration test ,can withstand the equivalent of nine on the Richer degree of crack resistance to vibration test speed of 0.4g 3sine wave
Technical parmaeter transformer oil name / transformer oil price / Oil Voltage 10kV Transformer with
| Type | Rated voltage ratio (V) | Rated output (V) | Max.capacity (VA) | ||||
| 0.2 Class | 0.5 Class | 1 Class | 3 Class | ||||
| JDJ-6 | 3000/100 6000/100 | 20 30 | 30 50 | 50 80 | 200 | 240 400 | 24 32 |
| JDJ-10 | 10000/100 | 30 | 80 | 150 | 320 | 640 | 42 |
Outline and installation dimension transformer oil name / transformer oil price / Oil Voltage 10kV Transformer with
