Quick Details
-
Warranty:
-
1 year except wearing parts
-
Brand Name:
-
YONJOU
-
Model Number:
-
LQ3G
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
2.2-60 HP
-
Outlet Size:
-
40-250 mm
-
Power:
-
1.5-45 KW, Electric
-
Theory:
-
Rotary Pump
-
Standard or Nonstandard:
-
Standard
-
Certificate:
-
ISO9001:2008
-
Material:
-
Cast Iron/Stainless steel
-
Type:
-
YONJOU
-
Usage:
-
bitumen pump
-
Fuel:
-
motor and diesel
Quick Details
-
Application:
-
Automotive Industry, Industrial Utilities
-
Pressure:
-
High pressure, High Pressure
-
Voltage:
-
380V
-
Warranty:
-
1 year except wearing parts
-
Brand Name:
-
YONJOU
-
Model Number:
-
LQ3G
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
2.2-60 HP
-
Outlet Size:
-
40-250 mm
-
Power:
-
1.5-45 KW, Electric
-
Theory:
-
Rotary Pump
-
Standard or Nonstandard:
-
Standard
-
Certificate:
-
ISO9001:2008
-
Material:
-
Cast Iron/Stainless steel
-
Type:
-
YONJOU
-
Usage:
-
bitumen pump
-
Fuel:
-
motor and diesel
Summary:

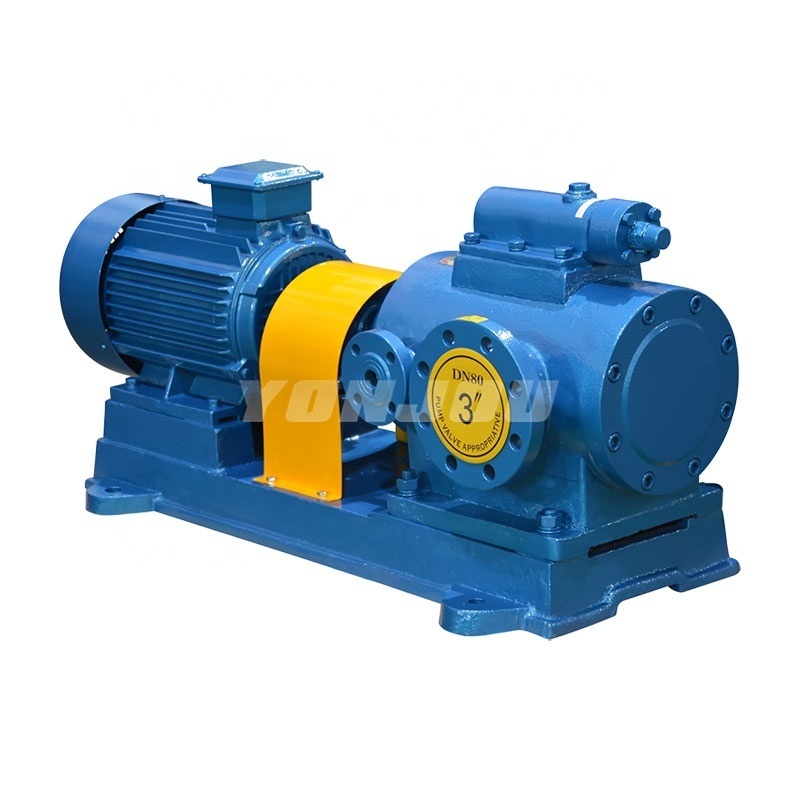

1. Industrial pump , can transmit heavy oil without particle, non-corrosive oil
2. The viscosity can be 3.0~760 mm2/s (1.2-100 °E). High viscosity medium can be pumped after overheating.
3. It can be used as rubricating pump, hydraulic pump, boost pump, petrol pump and dispensing pump.
4. Pump fuel oil, rubricate oil, hydraulic oil, crude oil, heavy oil, asphalt, bitumen, rubber, resin such various types of lubrication oil-type liquid in industries of petroleum, steel making, chemical fiber, food, metallurgy, road construction, electrify, mining, shipbuilding, glass, rubber.
Product details:
| Working Principle: | Three Screw (One main, two driven screws) |
| Main applications: | Heavy Oil, bitumen, viscous fluids |
| Driver: | Electric motor, diesel motor. |
| Power Specs: | 220V, 240V, 380V, 400V, 415V, 440V, 460V, 50hz/60hz |
| Max. permissible fluid temperature: | 350°C |
| Type of connection: | Flange, Thread, Quick Coupled. |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
| Shaft seal type: | Mechanical seal |
| Maximum viscosity: | 1000CST |
| Maximum drive rating: | 132 kW (177hp) |
| Maximum caliber: | 6inch (150mm) |
| Maximum discharge-side pressure: | 2.5mpa (25bar) |
| Flow rate range: | 0.6-120 m³/h (10-2010l/m) |
| Model | Capacity (m3/min) | Pressure | Speed | KW | Suction head | ||
| m3/h | L/min | MPa | r/min | Shaft power | motor power | m | |
| 45× 3-36 | 2.8 | 46 | 0.6 | 950 | 0.8 | 1.1 | 5 |
| 4.2 | 70 | 0.6 | 1450 | 1 | 1.5 | 5 | |
| 45× 2-46 | 4.2 | 70 | 0.6 | 950 | 1 | 1.5 | 5 |
| 14 | 233 | 4 | 1450 | 4.3 | 5.5 | 5 | |
| 62× 2-43 | 8.58 | 143.4 | 0.6 | 950 | 2.06 | 3 | 5 |
| 13.1 | 218.9 | 0.6 | 1450 | 3.15 | 4 | ||
| 62× 2-46 | 9.8 | 163 | 0.8 | 950 | 2.9 | 4 | 5 |
| 25 | 417 | 1 | 1450 | 8.5 | 11 | ||
| 80× 2-45 | 23.1 | 386.3 | 1 | 950 | 8.6 | 11 | 5 |
| 35.7 | 594.5 | 1 | 1450 | 13.1 | 15 | ||
| 80× 2-51 | 26.9 | 448.3 | 1 | 950 | 10.5 | 15 | 5 |
| 41 | 684.1 | 1 | 1450 | 16 | 18.5 | ||
| 90× 2-36 | 24.2 | 403.5 | 0.6 | 950 | 5.52 | 7.5 | 5.5 |
| 36.1 | 602.4 | 1 | 1450 | 13 | 15 | ||
| 90× 2-36 | 27.5 | 457.6 | 1 | 950 | 10.2 | 15 | 5.5 |
| 41.9 | 698.5 | 1 | 1450 | 15.5 | 18.5 | ||
| 90× 2-46 | 34 | 566.7 | 0.8 | 950 | 9.7 | 11 | 5.5 |
| 51.4 | 856.1 | 1 | 1450 | 18.6 | 22 | ||
| 100× 2-46 | 72.7 | 1212 | 0.6 | 950 | 16.5 | 18.5 | 5.5 |
| 71.2 | 1187 | 1 | 1450 | 25.5 | 30 | ||
| 100× 2-51 | 55.7 | 928.6 | 1 | 950 | 20.8 | 30 | 5.5 |
| 85 | 1417.2 | 1 | 1450 | 31.8 | 37 | ||
| 110× 2-46 | 58.9 | 951.7 | 1 | 950 | 21.8 | 30 | 5.5 |
| 94.6 | 1577 | 1 | 1450 | 33.9 | 45 | ||
| 120× 2-42 | 65.4 | 1090 | 1 | 950 | 24.5 | 30 | 5.5 |
| 105 | 1760 | 1 | 1450 | 38.2 | 45 | ||
| 120× 2-46 | 79.6 | 1327 | 0.6 | 950 | 17.8 | 22 | 5.5 |
| 123 | 2059 | 1 | 1450 | 44.1 | 55 | ||
| 150× 2-46 | 154 | 2582 | 1 | 950 | 54.5 | 75 |
5.5 |
|
236.5 |
3942.2 | 1 | 1450 | 82.2 | 90 | ||
