Quick Details
-
Brand Name:
-
HUADIAN
-
Warranty:
-
5 Years
-
Certificate:
-
CE/ ROHS/ FCC
-
Input signal:
-
0-10v, 0-50v, 0-100v, 0-500v, etc
-
Output signal:
-
4-20mA, 1-5V, 0-10V, etc
-
Power supply:
-
24VDC
-
Installation:
-
35mm Din Rail
-
Power consumption:
-
24V DC 0-500v analog voltage transducer
-
Accuracy:
-
0.2% for 220v high voltage sensor
-
Product name:
-
AC voltage transmitter with 220v high voltage sensor
Quick Details
-
Use:
-
Industrial
-
Model Number:
-
HDH-21
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
HUADIAN
-
Warranty:
-
5 Years
-
Certificate:
-
CE/ ROHS/ FCC
-
Input signal:
-
0-10v, 0-50v, 0-100v, 0-500v, etc
-
Output signal:
-
4-20mA, 1-5V, 0-10V, etc
-
Power supply:
-
24VDC
-
Installation:
-
35mm Din Rail
-
Power consumption:
-
24V DC 0-500v analog voltage transducer
-
Accuracy:
-
0.2% for 220v high voltage sensor
-
Product name:
-
AC voltage transmitter with 220v high voltage sensor

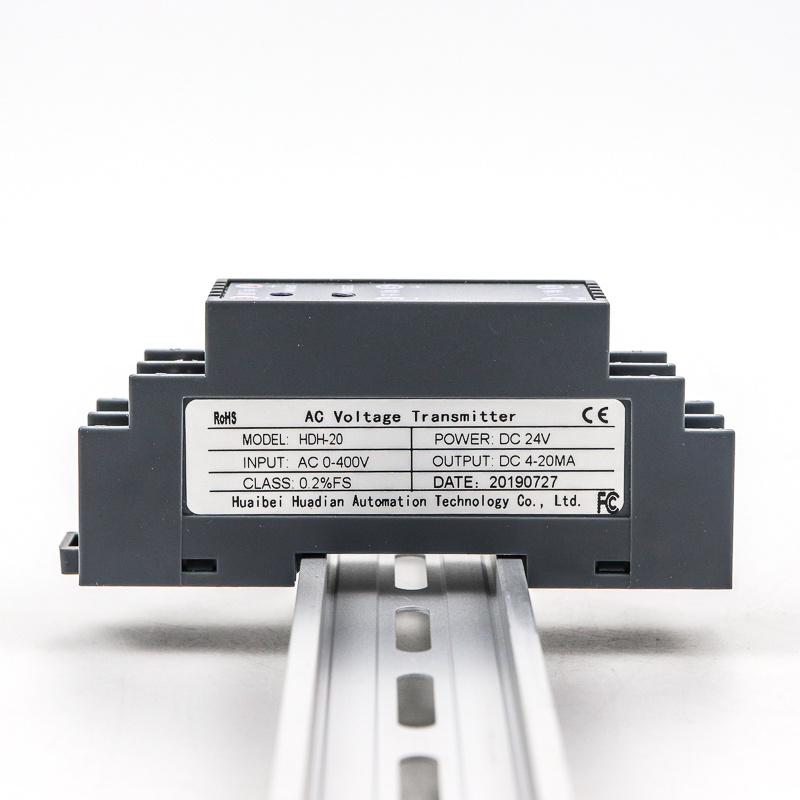

0.2% F.S accuracy AC voltage transducer analog voltage transmitter with 24v dc power supply 220v high voltage sensor
This apparatus transmits the DC voltage signal to isolated current or voltage signal such as 4-20mADC,0-10VDC , and the input, output, and power supply are galvanically isolated from each other.
It can be used together with modular instrumentation and DCS, PLC and other systems,to offer signal isolation, signal conversion, signal processing and otherfunctions to field instrument, thereby enhancing the immunity of automatic control system in the industrial production process, and ensuring system stability and reliability.
Compared with other similar products, this apparatus has the advantages of small volume,fast response time, low power loss and quite well temperature characteristics.
Panel light indication:
Light indicating: PWR (red) remains shining during normal operation;
Mainly technical parameters:
| Product name | 0.2% F.S accuracy AC voltage transducer analog voltage transmitter with 24v dc power supply 220v high voltage sensor |
| Key words | 220v high voltage sensor |
| Transmitting accuracy | ±0.1%F.S(25℃±2℃) |
| Rise time | ≤ 10 ms |
| Settling time | ≤ 100ms |
| Influence of ambient temperature | < 30 ppm/℃ |
| Ripple | <1 mV |
| Frequency range | 0~100 Hz |
| Input resistance | current: ≤60 Ω voltage: 0~5V:≥1MΩ; 0~10V:≥2MΩ |
| Output load capacity |
DC current: 0~10mA: ≤700Ω; 4~20mA: ≤600Ω; 0~±10mA: ≤1kΩ; 0~±20mA: ≤500Ω
DC voltage: 0(1)~5V: ≥1MΩ; 0~10V: ≥2MΩ;0~±5V: ≥1MΩ; 0~±10V: ≥2MΩ Please specify your requirements before order if greater output load capacity is needed. |
| Power supply voltage range: | 18~32V DC (Recommended voltage:24V DC) |
| Power consumption | 24V DC |
| Single output | 0.4W |
| Double output | 0.6W |
| Insulation resistance | ≥ 100 MΩ (Input /Output /Power) |
| Dielectric strength | ≥ 2500 V AC (Input /Output /Power, 1mA leakage current, 1 minute test time) |
| Electromagnetic compatibility | IEC 61000-4 |
Selection table:
