Quick Details
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
630x410x500 mm
-
Weight (KG):
-
88
-
Power (kW):
-
0.3
-
Model:
-
VR90
-
Max. grinding diameter:
-
90 mm
-
Range of grinding valve diameter:
-
25-90 mm
-
Valve axle diameter:
-
6-16 mm
-
Grinding angle:
-
30°-60°
-
Longitudinal slide travel of work head:
-
110 mm
-
Cross slide travel of wheel head:
-
90 mm
-
Spindle speed:
-
180-300 r/min
-
Wheel speed:
-
4500 r/min
-
Max. grinding depth:
-
0.025 mm
Quick Details
-
Wheel Size(mm):
-
110X90mm
-
Place of Origin:
-
china jiangsu
-
Brand Name:
-
smac
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
630x410x500 mm
-
Weight (KG):
-
88
-
Power (kW):
-
0.3
-
Model:
-
VR90
-
Max. grinding diameter:
-
90 mm
-
Range of grinding valve diameter:
-
25-90 mm
-
Valve axle diameter:
-
6-16 mm
-
Grinding angle:
-
30°-60°
-
Longitudinal slide travel of work head:
-
110 mm
-
Cross slide travel of wheel head:
-
90 mm
-
Spindle speed:
-
180-300 r/min
-
Wheel speed:
-
4500 r/min
-
Max. grinding depth:
-
0.025 mm
Recommend Products
Products Description

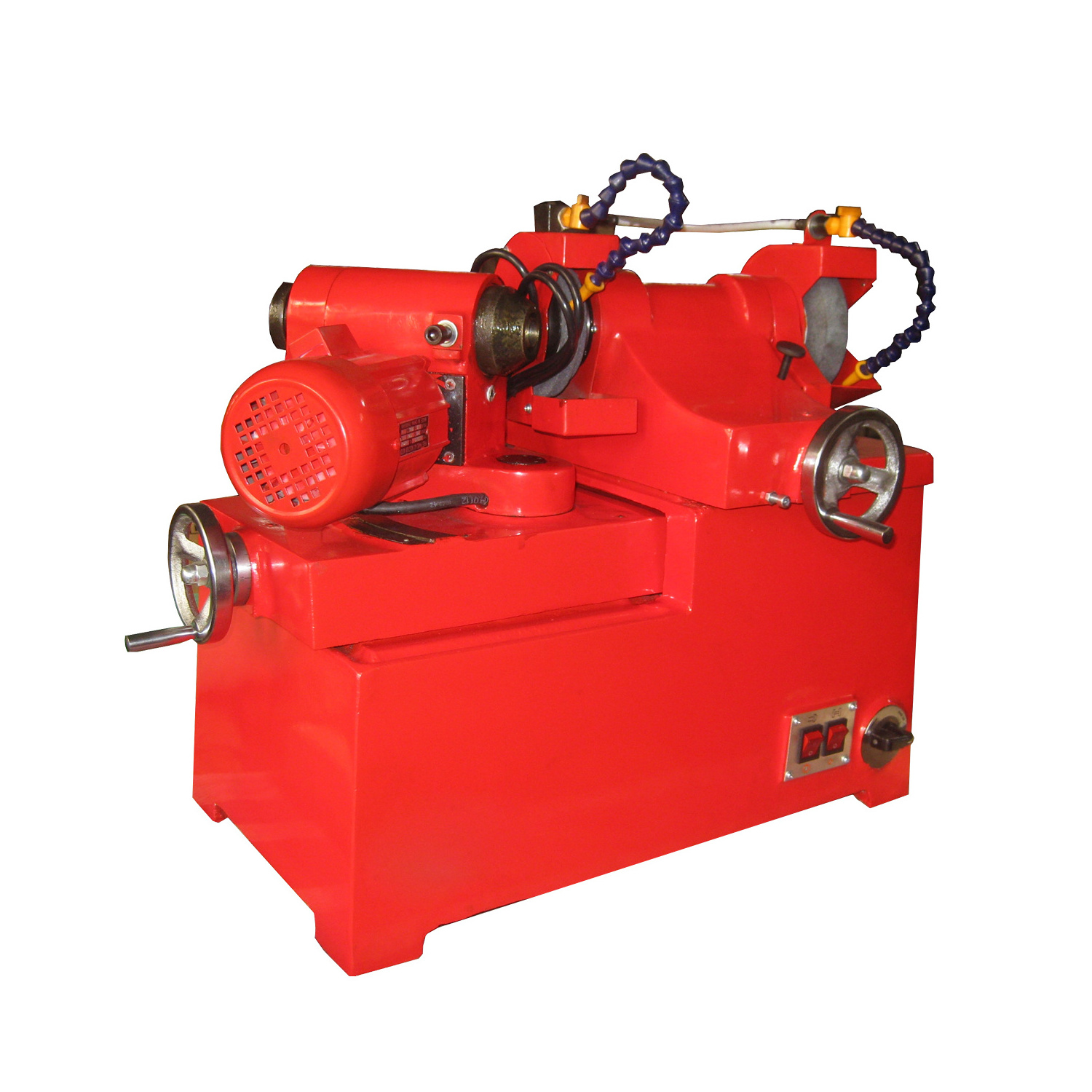

The valve seat grinder is mainly applicable to the matching research of internal combustion engine valves and valve seats on automobiles and tractors (for V-type internal combustion engines, special accessories - rotary worktable) and other similar work, such as grinding some mass-produced accessories, etc.
Characteristic
Range of grinding valve diameter 25-90 mm
Grinding angle 30°-60°
Specifcation
|
Model
|
VR90
|
|
Max. grinding diameter
|
Φ90 mm
|
|
Range of grinding valve diameter
|
Φ25-Φ90 mm
|
|
Valve axle diameter
|
Φ6-Φ16 mm
|
|
Grinding angle
|
30°-60°
|
|
Longitudinal slide travel of work head
|
110 mm
|
|
Cross slide travel of wheel head
|
90 mm
|
|
Spindle speed
|
180-300 r/min
|
|
Wheel speed
|
4500 r/min
|
|
Max. grinding depth
|
0.025 mm
|
|
Overall dimensions (L x W x H)
|
630x410x500 mm
|
|
Packing dimensions(L x W x H)
|
740x540x640 mm
|
|
N.W/G.W
|
88/125 kg
|
