Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Tianyu
-
Voltage:
-
220V or customized
-
Weight:
-
1000 KG
-
Name:
-
Charcoal Various Shape Shape Briquette Making Machine
-
Raw material:
-
charcoal coal powder, waste mineral powder.
-
Usage:
-
Make charcoal briquettes with certain size and shape
-
Briquette Shape:
-
oval, pillow, round, egg, ball, column, and square.
-
Application:
-
BBQ, fuel, home heating
-
Core components:
-
Screw propeller, Forming tube
-
Feeding moisture:
-
12~14%
-
Keywords:
-
Charcoal Pressing Machine
-
Feeding material size:
-
Less than 3-5mm
-
Working principle:
-
Screw extrusion
Quick Details
-
Warranty:
-
1 Year
-
Marketing Type:
-
Hot Product 2022
-
Core Components:
-
Motor
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Tianyu
-
Voltage:
-
220V or customized
-
Weight:
-
1000 KG
-
Name:
-
Charcoal Various Shape Shape Briquette Making Machine
-
Raw material:
-
charcoal coal powder, waste mineral powder.
-
Usage:
-
Make charcoal briquettes with certain size and shape
-
Briquette Shape:
-
oval, pillow, round, egg, ball, column, and square.
-
Application:
-
BBQ, fuel, home heating
-
Core components:
-
Screw propeller, Forming tube
-
Feeding moisture:
-
12~14%
-
Keywords:
-
Charcoal Pressing Machine
-
Feeding material size:
-
Less than 3-5mm
-
Working principle:
-
Screw extrusion
Product Overview

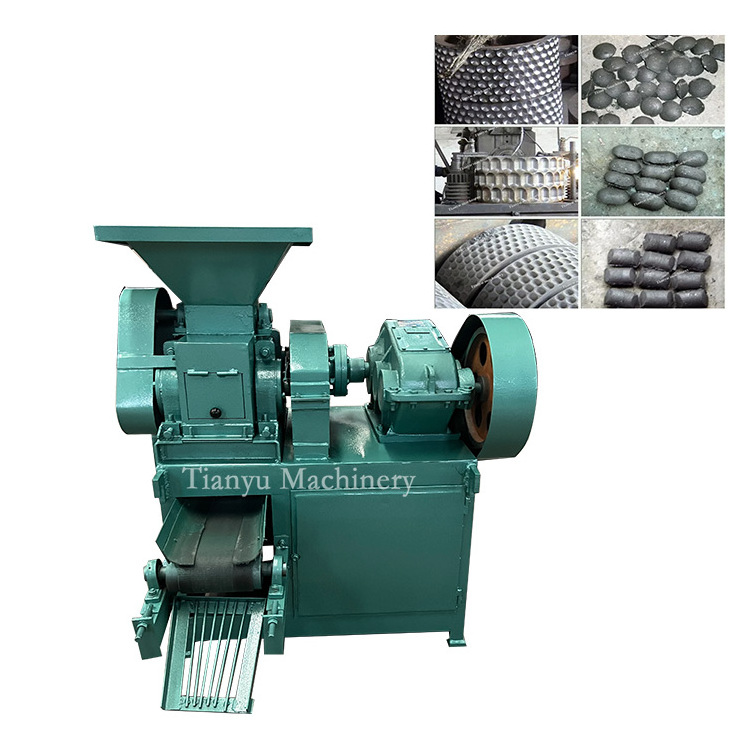

The charcoal ball briquette press machine
is molding equipment that can press the powdered coal into balls.
It has a wide range of applications and it’s widely used in the field of metallurgy, chemical, refractories, etc.
The final product
(coal ball briquette) has the advantages of
smokeless, non-toxic, no peculiar smell, and easy transportation
&
storage
.
Compared to traditional charcoal, it’s
energy-saving
and
environmental protection
with
more calorific value
.
Structure
1.
Feeding part:
This part includes the screw feeding device and the hopper, which is mainly used to realize quantitative feeding to ensure that the material enters between the pair of rollers evenly.
2. Transmission part:
The main transmission system is: motor → triangle belt → reducer → open gear → counter roll.
The main engine is powered by an electromagnetic speed-regulating motor, which is transmitted to the driving shaft through a pin coupling through a belt wheel and a cylindrical gear reducer.
3. Forming part: The core of the forming part is the pair of rolls. This is a pair of rotating shafts of the same size, with many hemispherical sockets of the same size and regularly arranged on the surface. There is a hydraulic protection device behind the rollers, which can protect the rollers from damage when there is too much feed or metal blocks between the two rollers.
3. Forming part: The core of the forming part is the pair of rolls. This is a pair of rotating shafts of the same size, with many hemispherical sockets of the same size and regularly arranged on the surface. There is a hydraulic protection device behind the rollers, which can protect the rollers from damage when there is too much feed or metal blocks between the two rollers.
The working principle of the charcoal press machine
Structurally speaking, the machine is mainly divided into the feeding part, driving part, and forming part.
The feeding part
is mainly to achieve quantitative feeding to ensure that the material is evenly in the double roller space.
The screw feeding device
is driven by the electromagnetic speed-regulating motor and driven by the belt pulley and worm reducer to force the pressed material into the inlet.
Technical Specifications
|
Model
|
Roller size
(mm)
|
Spindle speed
(r/min)
|
Power
(kw)
|
Capacity
(t/h)
|
Dimension
(m)
|
|
TY-290-2
|
290*200
|
12-15
|
5.5-7.5
|
1-3
|
1.6*1.2*1.4
|
|
TY-360-2
|
360*250
|
12-15
|
7.5-11
|
3-5
|
2.1*1.3*1.76
|
|
TY-430-2
|
430*250
|
12-15
|
15-18.5
|
4-7
|
2.3*1.53*1.9
|
|
TY-500-2
|
500*300
|
12-15
|
22-30
|
5-10
|
2.6*1.75*2.1
|
|
TY-650-2
|
650*350
|
10-13
|
37-55
|
8-13
|
3.42*2*2.2
|
|
TY-750-2
|
750*380
|
10-13
|
45-75
|
12-17
|
3.7*2.55*2.6
|
|
TY-850-2
|
850*460
|
10-13
|
75-110
|
15-20
|
3.9*2.6*2.7
|
|
TY-1000-2
|
1000*530
|
10-13
|
110-132
|
20-30
|
4*2.8*2.8
|
Final products & Application
The charcoal or coal briquettes can be different shapes by changing with special molds, such as oval, pillow, round, egg, ball, column, and square.
1. The BBQ charcoal machine has high forming pressure, the adjustable revolution of the main machine, and hydraulic protection device.
2. Tianyu machinery provides a variety of professional barbecue charcoal press machines, the specific size and special shape models of the ball, and can customize the machine according to users' needs.
3. The quality of the finished coal is stable, the shape is not easy to be scattered and damaged, the density is large, and the combustion value is high.
4. The charcoal balls press machine has a large production capacity, simple maintenance and operation, and no dust pollution in the production process.
2. Tianyu machinery provides a variety of professional barbecue charcoal press machines, the specific size and special shape models of the ball, and can customize the machine according to users' needs.
3. The quality of the finished coal is stable, the shape is not easy to be scattered and damaged, the density is large, and the combustion value is high.
4. The charcoal balls press machine has a large production capacity, simple maintenance and operation, and no dust pollution in the production process.
Production line design
We also design it according to customer raw material, capacity or other requirement.
