Quick Details
-
Rated Lifting Moment:
-
Standard
-
Span:
-
4.2m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XJCM
-
Weight (KG):
-
34800 kg
-
Product name:
-
XJCM sale Small Construction 4 ton mini tower crane with CE approved
-
Overall length:
-
14.63m
-
Overall width:
-
2.24m
-
Overall height:
-
3.31m
-
Power Supply:
-
380V/50HZ
-
Certification:
-
CE
-
Control Method:
-
Remote Control
-
Brand:
-
XJCM
Quick Details
-
Rated Loading Capacity:
-
4 TON
-
Max. Lifting Height:
-
22m
-
Application:
-
Construction, Building construction lift
-
Rated Lifting Moment:
-
Standard
-
Span:
-
4.2m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XJCM
-
Weight (KG):
-
34800 kg
-
Product name:
-
XJCM sale Small Construction 4 ton mini tower crane with CE approved
-
Overall length:
-
14.63m
-
Overall width:
-
2.24m
-
Overall height:
-
3.31m
-
Power Supply:
-
380V/50HZ
-
Certification:
-
CE
-
Control Method:
-
Remote Control
-
Brand:
-
XJCM

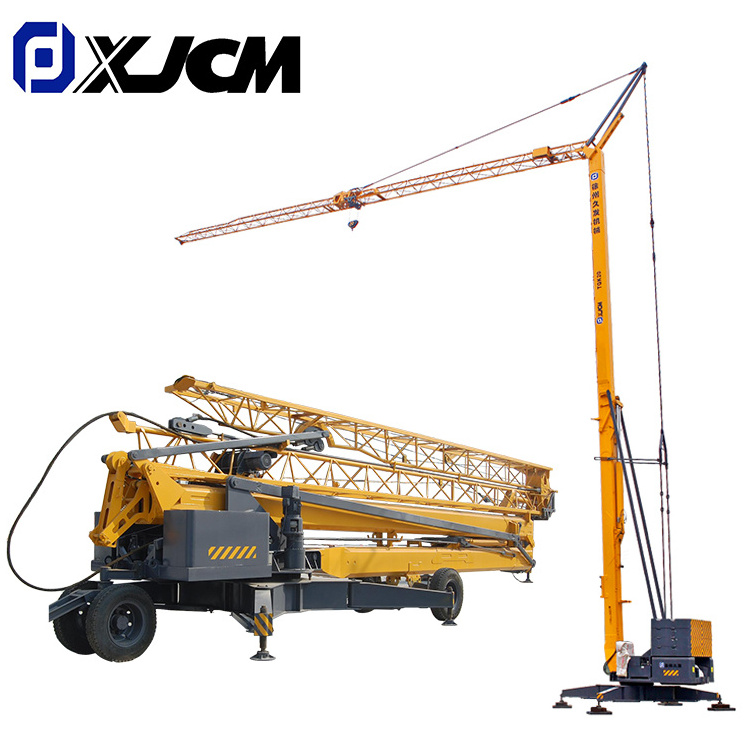

XJCM sale Small Construction 4 ton mini tower crane with CE approved
|
Category |
Item |
Unit |
JFYT1720-10 |
JFYT2527-20 |
JFYT2527-30 |
JFYT2227-40 |
|
Hoisting parameters |
Max.hoisting height |
m |
17 |
25 |
25 |
22 |
|
Max.working radius |
m |
20 |
27 |
27 |
27 |
|
|
Max.hoisting weight |
Kg |
1000 |
2000 |
3000 |
4000 |
|
|
Hoisting speed |
m/min |
16/32 |
13/26 |
13/26 |
13/26 |
|
|
Trolleying speed |
m/min |
19 |
20/40 |
20/40 |
20/40 |
|
|
Slewing speed |
r/min |
0.8 |
0.25/0.8 |
0.25/0.8 |
0.25/0.6 |
|
|
Erecting time |
min |
6 |
10 |
10 |
10 |
|
|
Outrigger span |
m |
3.5x3.5 |
4.2x4.2 |
4.2x4.2 |
4.2x4.2 |
|
|
Dead weight |
Kg |
14500 |
26000 |
32000 |
42000 |
|
|
Travel parameters |
Max.towing speed |
Km/h |
15 |
15 |
15 |
15 |
|
Hydraulic system |
Hydraulic system |
Mpa |
28 |
28 |
28 |
28 |
|
Power supply |
Rated Power |
Kw |
11.4 |
23.1 |
23.1 |
23.1 |
|
Power supply |
380/50HZ |
|||||
XJCM have our own factory . all the crane are design, made and sold by ourselves, our crane quality have got CQC and SQS. We could supply our products with high quality.
Q1. Are you trading company or manufaturer?
We are manufaturers. XJCM is a national high-tech enterpsise which professionally designs, produces and deals with the rough terrian crane and other construction machinery
Q2. Whether the voltage and plug of your products will come with my standard?
We will confirm Voltage and plug with customer and produce machines as the customer’s request.
Q3. Do you provide after sales-service?
Yes, we provide the best after sales-service for our customers.
