- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 year, 1 Year
-
Brand Name:
-
Chonry
-
Model Number:
-
WT600
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
None
-
Structure:
-
peristaltic pump
-
Cable Length:
-
none
-
Outlet Size:
-
Max 9.6mm
-
Power:
-
<100W
-
motor:
-
DC motor
-
Model:
-
WT600
-
Pump head:
-
KZ25
-
Max Speed:
-
600 rpm
-
Fow range:
-
Max 6000 ml/min
-
Display Mode:
-
4-digit LED displays current speed or flow
-
MOQ:
-
1 set
-
Certification:
-
ce
-
OEM:
-
Availiable
-
Package:
-
Stand Carton Package
Quick Details
-
Application:
-
Automotive Industry, District Energy, Food and Beverage Industry, Mining industry, Pharmaceutical industry, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
Low Pressure
-
Voltage:
-
AC220V or AC110V
-
Warranty:
-
1 year, 1 Year
-
Brand Name:
-
Chonry
-
Model Number:
-
WT600
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
None
-
Structure:
-
peristaltic pump
-
Cable Length:
-
none
-
Outlet Size:
-
Max 9.6mm
-
Power:
-
<100W
-
motor:
-
DC motor
-
Model:
-
WT600
-
Pump head:
-
KZ25
-
Max Speed:
-
600 rpm
-
Fow range:
-
Max 6000 ml/min
-
Display Mode:
-
4-digit LED displays current speed or flow
-
MOQ:
-
1 set
-
Certification:
-
ce
-
OEM:
-
Availiable
-
Package:
-
Stand Carton Package

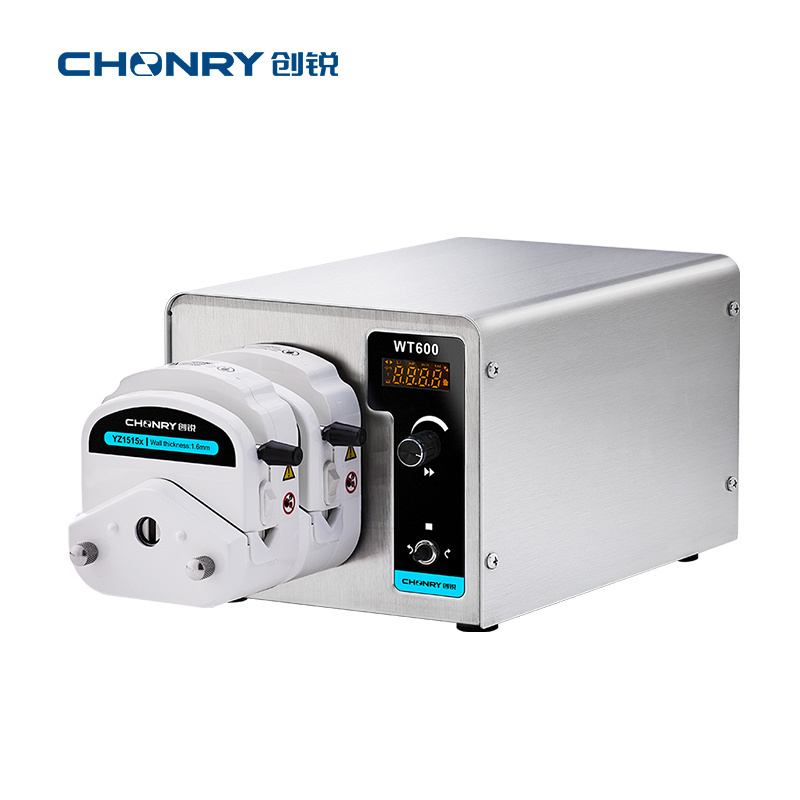

Medium flow digital transfer peristaltic pump
WT600 is a medium flow digital transfer peristaltic pump independently developed by Chuangrui Pump Industry. It is driven by a DC brushless motor and has strong bidirectional torque. It can be installed with YZ series, LP series, KZ series and other pump heads. The pump heads can be cascaded, etc. Pump head, suitable for various hoses. Supports RS485MODBUS communication protocol to meet customers' different work needs.
It is used for conveying mechanical grinding and polishing liquid, electronic electroplating addition, chemical liquid, glue, anti-static liquid, etc.
|
Drive model
|
WT600
|
|
Max Speed
|
600rpm（reversible）
|
|
Max Flow
|
6000mL/min
|
|
Speed resolution
|
1rpm
|
|
Display method
|
4-digit LED displays current speed or flow
|
|
Speed mode
|
Digital knob to adjust the speed
|
|
Back suction angle
|
10°-720° (0° means no back suction)
|
|
Back suction speed
|
30-300rpm
|
|
Power
|
＜100W
|
|
Drive size
|
267x177x152.3mm
|
|
Drive weight
|
4.8kg
|
|
Power supply
|
AC220±10% (standard) or AC110V±10% (optional)
|
|
External control method
|
Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication
|
Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company
focus on research and development, production and marketing of peristaltic pump.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and
development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic
pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to
produce the ideal OEM peristaltic pump .Widely used in various industries of fine chemical industry,
environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in
our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence
for your market expansion.
