This set of production line developed by our company, developed a new French fries potato chips production line with international standards, this set of production line of high quality 304 stainless steel, high PLC electrical control, technology, security,efficiency, bearings are made of imported stainless steel bearings, electrical and other imported brand-name products, leading technical level.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
local voltage
-
Power:
-
customized
-
Dimension(L*W*H):
-
customized
-
Weight:
-
1500 KG
-
Machinery Function:
-
multifunction
-
Output product name:
-
french fries/potato chips
-
Product name:
-
Automatic Fried Frozen French Fries Production Line
-
Material:
-
304 Stainless Steel
-
Feature:
-
Automatic Production
-
Package:
-
Wooden Package
-
Type:
-
Fully Automatic Potato Chips Machine
-
Function:
-
Making Fresh Potato Chips
-
Keywords:
-
Potato Chips Crisps Machine
-
Usage:
-
Producing French Fries
-
Power Source:
-
Electric Gas
-
Advantages:
-
High Effiency
Quick Details
-
Marketing Type:
-
New Product 2021
-
Brand Name:
-
JOHTANK
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
local voltage
-
Power:
-
customized
-
Dimension(L*W*H):
-
customized
-
Weight:
-
1500 KG
-
Machinery Function:
-
multifunction
-
Output product name:
-
french fries/potato chips
-
Product name:
-
Automatic Fried Frozen French Fries Production Line
-
Material:
-
304 Stainless Steel
-
Feature:
-
Automatic Production
-
Package:
-
Wooden Package
-
Type:
-
Fully Automatic Potato Chips Machine
-
Function:
-
Making Fresh Potato Chips
-
Keywords:
-
Potato Chips Crisps Machine
-
Usage:
-
Producing French Fries
-
Power Source:
-
Electric Gas
-
Advantages:
-
High Effiency
Products Description
Working Principle

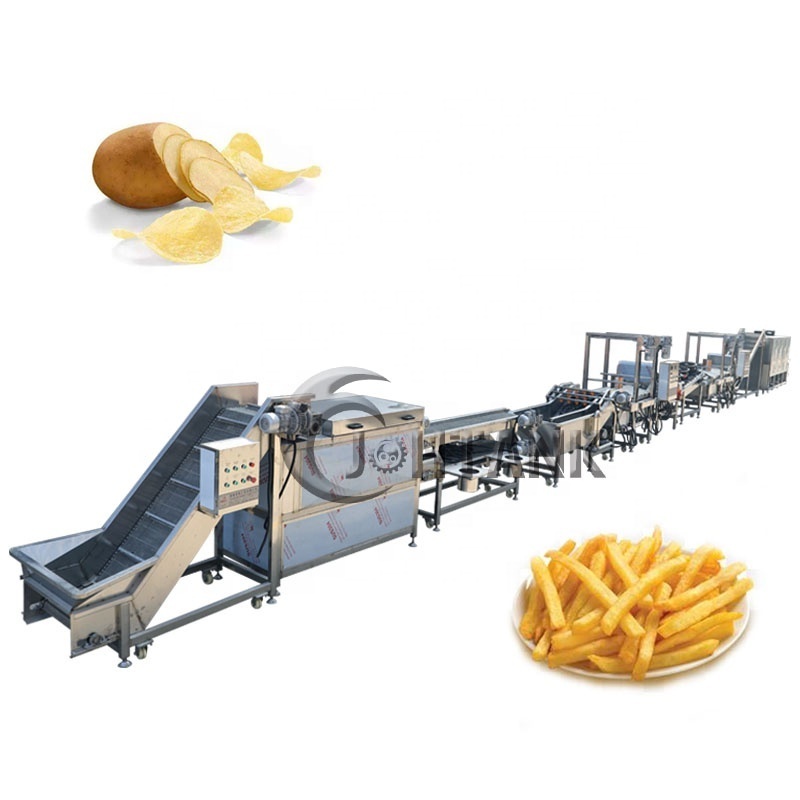

French fries potato chips production line
|
Device Name
|
Quantity
|
(mm)Dimensions
|
(kw/Hz)power
|
|
Conveyor hoist machine
|
1set
|
2000*800*2000mm
|
0.75/380/50
|
|
Cleaning and peeling machine
|
1set
|
1800*900*1500mm
|
4.75/380/50
|
|
Picking machine
|
1set
|
3000*900*900mm
|
0.75/380/50
|
|
Cutting machine
|
1set
|
650*550mm
|
0.75Kw
|
|
Water bucket elevator
|
1set
|
2000*800*2000mm
|
1.5/380/50
|
|
Washing machine
|
1set
|
3000*1600*900mm
|
5.5/380/50
|
|
Blanching machine
|
1set
|
3000*1600*950mm
|
125/380/50
|
|
Vibrating machine to de-water
|
1set
|
4000*1200*1400mm
|
1.5/380/50
|
|
Electric dryer
|
1set
|
4000*1200*1600mm
|
15/380/50
|
|
Continuous frying machine
|
1set
|
3500*1200*2600mm
|
203/380/50
|
|
Vibrating de-oil machine
|
1set
|
4000*1200*1400mm
|
15/380/50
|
|
Electric dryer
|
1set
|
4000*1200*1600mm
|
15/380/50
|
|
Fluidized belt freezer
|
1set
|
980*190*173mm
|
14-24KW
|
|
Packing Machine
|
1set
|
3000*800*1000mm
|
0.75/380/50
|
Product Details
Detailed Description
Converyor hoist machine
*
This elevator is always used in french fries production line.
*
After cutting, the potato strips will go into this elevator and it has 3 functions:
*
: to wash off the starch
*
: water as buffer to prevent the potato strips breakage
*
: to elevate the potato strips into next machine
Cleaning and peeling machine
*
suitable for kinds of fruit, root vegetable, Shellfish, Seafood, Fish scaling and Animal organs washing, etc.
*
High quality ,304 stainless steel and 9 psc roller brush.
*
It can dry clean and wet clean, with flexible spray nozzle.
*
98% peeling rate
*
Customization services, can add washing speed adjustable device, extra water tray, etc.
*
Full computer control, variable frequency speed control, highрhоtоѕеnѕіtіvе ѳуѳ trасkіng, еасh ѕеаlіng tеmреrаturе
*
independent control, suitable for a variety of packaging
*
materials; simple mechanical structure, easy maintenance;smooth operation, less wear, long life
*
Made of high-quality 304 stainless steel, PLC electrical control, high technical content, safe and efficient, the bearings are imported stainless steel bearings, and the electrical appliances are imported brand-name products
*
This machine is widely used for blanching and sterilizing vegetables, fruits, seafood products
before
quick freezing and dehydrating, especially suitable
for
easily damageable products and products in
strips or bar-shaped. It is necessary equipment during
food processing industry.
*
With big air volume centrifugal turbofan, and small sharp air outlet, enable quick drying
*
With SUS 304 mesh belt, mesh belt width could be 500-1000mm
* Mesh speed adjustable by gearbox
* With turnover type or flat type mesh belt, suitable for different products drying
* Each unit of blowing fan can be controlled separately
* Suitable for production line, continuously working
* Mesh speed adjustable by gearbox
* With turnover type or flat type mesh belt, suitable for different products drying
* Each unit of blowing fan can be controlled separately
* Suitable for production line, continuously working
*
Optional heating method: electricity, gas, steam, electromagnetism, etc.
*
Frying time can be set, automatic temperature
control 0-300°C.
* Double mesh belt and the conveyor speed is adjustable.
* Can be equipped with oil filter machine and oil tank.
* Equipped with mesh lifting system, easy to clean.
* With oil storage tank and oil pump.
control 0-300°C.
* Double mesh belt and the conveyor speed is adjustable.
* Can be equipped with oil filter machine and oil tank.
* Equipped with mesh lifting system, easy to clean.
* With oil storage tank and oil pump.
*
Introduction of drum seasoning machine
*
It is made of stainless steel, with simple and practical structure, welding, surface brightness, can make processed food with seasoning material fully mixed uniformity in a short time. It's widely used for snack food seasoning, feeding, mixing materials, hanging pulp and so on.
Application
