Quick Details
-
Brand Name:
-
RUNZHOU
-
Application:
-
FTTH FTTB FTTX Network
-
Color:
-
White
-
Optical connector type:
-
SC/PC
-
Name:
-
optical receiver
-
Frequency range:
-
45Mhz-1000Mhz
-
Material:
-
PC ABS
-
Certification:
-
CE RoHS FCC
-
Wavelength:
-
1310nm/1490nm/1550nm
-
Model:
-
OPT-1000M-2
-
AGC range:
-
-7~+1dBm
Quick Details
-
Type:
-
FTTx Solutions
-
Model Number:
-
OPT-1000M-2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RUNZHOU
-
Application:
-
FTTH FTTB FTTX Network
-
Color:
-
White
-
Optical connector type:
-
SC/PC
-
Name:
-
optical receiver
-
Frequency range:
-
45Mhz-1000Mhz
-
Material:
-
PC ABS
-
Certification:
-
CE RoHS FCC
-
Wavelength:
-
1310nm/1490nm/1550nm
-
Model:
-
OPT-1000M-2
-
AGC range:
-
-7~+1dBm
Products Description
Specification
Introduction
|
|
|

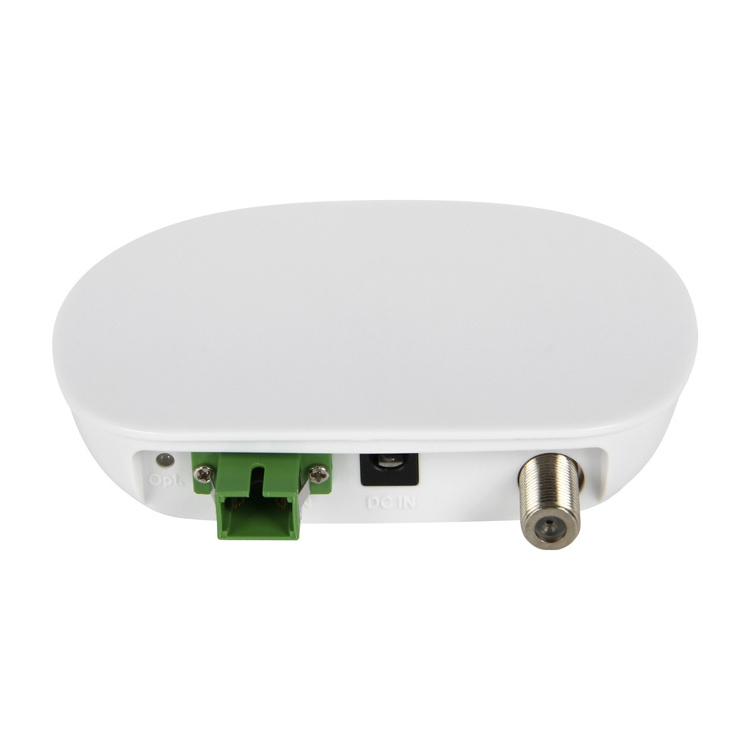

OPT-RX-1G-PS
|
OPT-AS1000WDM
|
OPT-EW1000
|
UNIT
|
|
Optical Parameters
|
Optical Receiving Power
|
-15~+2
|
-16~+2
|
-10~+5
|
dBm
|
|
|
AGC Range
|
-8~+2
|
-16~-8
|
-7~+1
|
dBm
|
|
|
Optical Return Loss
|
>45
|
≥45
|
≥45
|
dB
|
|
|
Optical Receiving Wavelength
|
1100~1600
|
1100~1600
|
1100~1600
|
nm
|
|
|
Optical Connector Type
|
SC/PC
|
SC/PC
|
SC/PC
|
|
|
|
Fiber Type
|
Single Mode
|
Single Mode
|
Single Mode
|
|
|
Link Performance
|
C/N
|
≥51@Pin=-1dBm，Pout=82dBμV,84CHPAL-D,OMI=3.8%
|
≥51
|
≥46
|
dB
|
|
|
C/CTB
|
≥65
|
≥68
|
≤-55
|
dB
|
|
|
C/CSO
|
≥62
|
≥65
|
≤-55
|
dB
|
|
RF Parameters
|
Frequency Range
|
45-1003
|
47~1000MHz
|
40-1000
|
MHz
|
|
|
Flatness in Band
|
±0.75
|
±0.75
|
≤±0.75
|
dB
|
|
|
Output Level
|
≥82（AGC:@-8~+2dBm）（MGC:@-8dBm）
|
≥88
|
≥85
|
dBμV
|
|
|
Output ATT range
|
0~20（Valid in MGC state）
|
non
|
non
|
dB
|
|
|
Optical Return Loss
|
≥16
|
≥16
|
≥16
|
dB
|
|
|
Output Impedance
|
75
|
75
|
75
|
Ω
|
|
|
Consumption
|
<1.2
|
<1.5
|
≤1.5
|
W
|
|
General
|
Operating Temperature
|
-20~+55
|
-25~+55
|
-20~+70
|
℃
|
|
|
Dimension
|
104*85*25
|
105*81*24
|
105*80*28
|
mm
|
|
|
Power Supply
|
DV 5V
|
DV 5V
|
DV 12V
|
V
|
|
|
OPT-RX-1G-PS
|
OPT-AS1000WDM
|
OPT-EW1000
|
|
Std Carton Qty:
|
50pcs
|
50pcs
|
40pcs
|
|
Carton Weight:
|
10kgs
|
10kgs
|
12kgs
|
Feature Include:
Small housing
High performance
GaAs amplifier device
1310nm and 1550nm optional working window
Introduction:
Fiber to the home ( FTTH ) broadband access is the ultimate development goal, optical receiver is the target terminal products for
this goal.
This device adopts technology of high isolation WDM in order to separate CATV and ONU signal. Further more, it also adopts low
optical
power receiving and RF-AGC control technique, whichcould achieve the requirement of ≤-9dBmCATV receiving for FTTH. The optical
power receiving monitoring indicator LED ( ≥-15dBm) is provided on the pane and it supports RF outputs constantly , convenience of
customers use, which isthe ideal receiver equipment for FTTH.
POWER IN :It is the external power supply input port, First should be the DC+12 V external voltage stabilizer output line connected
to the
device POWER IN,than put DC+12V external mano-stat insert 100/240 V,DC12V Face posted power light, show power part is regularly
working.
Optical Fiber Input:
OPTICAL IN:It is input interface of optical signal,In optical access should clean PC TOP by alcohol ,than align adapter sunken
mouth,
fiber mouth march link;When optical signal accesses (≥-15dBm) then lights on in panel, whichshows optical part is regularly
working;ONU is
1490/1310nm connection interface, please do not take off the cover before you use.
RF Output Level Adjustment:
value is the minimum.When the output level and the design requirements has any deviation, it can adjust the attenuation amount,
with the design requirements.
This device is low optical power receive, suggest-12 ~-9 dBm advisable.
Install Test Matter Need Attention:
1.This device is indoor type structure,Not to be used in place of harassment by the rain;Packed in the box of the indoor
appropriate space,For cooling;The
output of the cable shielding network must be grounded,Grounding resistance should be less than 4 Ω,The local power supply for
electrical shell has to be grounded,Above ground resistance.
2.Tail fiber input and output cable has to be reserved certain length,Reduce accident's occurrence; optical interface do not move
if not use, This device is with LC/PC,do not link with LC/PC.
High performance
GaAs amplifier device
1310nm and 1550nm optional working window
Introduction:
Fiber to the home ( FTTH ) broadband access is the ultimate development goal, optical receiver is the target terminal products for
this goal.
This device adopts technology of high isolation WDM in order to separate CATV and ONU signal. Further more, it also adopts low
optical
power receiving and RF-AGC control technique, whichcould achieve the requirement of ≤-9dBmCATV receiving for FTTH. The optical
power receiving monitoring indicator LED ( ≥-15dBm) is provided on the pane and it supports RF outputs constantly , convenience of
customers use, which isthe ideal receiver equipment for FTTH.
POWER IN :It is the external power supply input port, First should be the DC+12 V external voltage stabilizer output line connected
to the
device POWER IN,than put DC+12V external mano-stat insert 100/240 V,DC12V Face posted power light, show power part is regularly
working.
Optical Fiber Input:
OPTICAL IN:It is input interface of optical signal,In optical access should clean PC TOP by alcohol ,than align adapter sunken
mouth,
fiber mouth march link;When optical signal accesses (≥-15dBm) then lights on in panel, whichshows optical part is regularly
working;ONU is
1490/1310nm connection interface, please do not take off the cover before you use.
RF Output Level Adjustment:
RF OUT:It is RF output port,when optical input -2~-9/-12/-15dBm,RF output 82/76/70dBuv±1;ADJ:it is RF Output levelattenuator,
default
value is the minimum.When the output level and the design requirements has any deviation, it can adjust the attenuation amount,
with the design requirements.
This device is low optical power receive, suggest-12 ~-9 dBm advisable.
Install Test Matter Need Attention:
1.This device is indoor type structure,Not to be used in place of harassment by the rain;Packed in the box of the indoor
appropriate space,For cooling;The
output of the cable shielding network must be grounded,Grounding resistance should be less than 4 Ω,The local power supply for
electrical shell has to be grounded,Above ground resistance.
2.Tail fiber input and output cable has to be reserved certain length,Reduce accident's occurrence; optical interface do not move
if not use, This device is with LC/PC,do not link with LC/PC.
