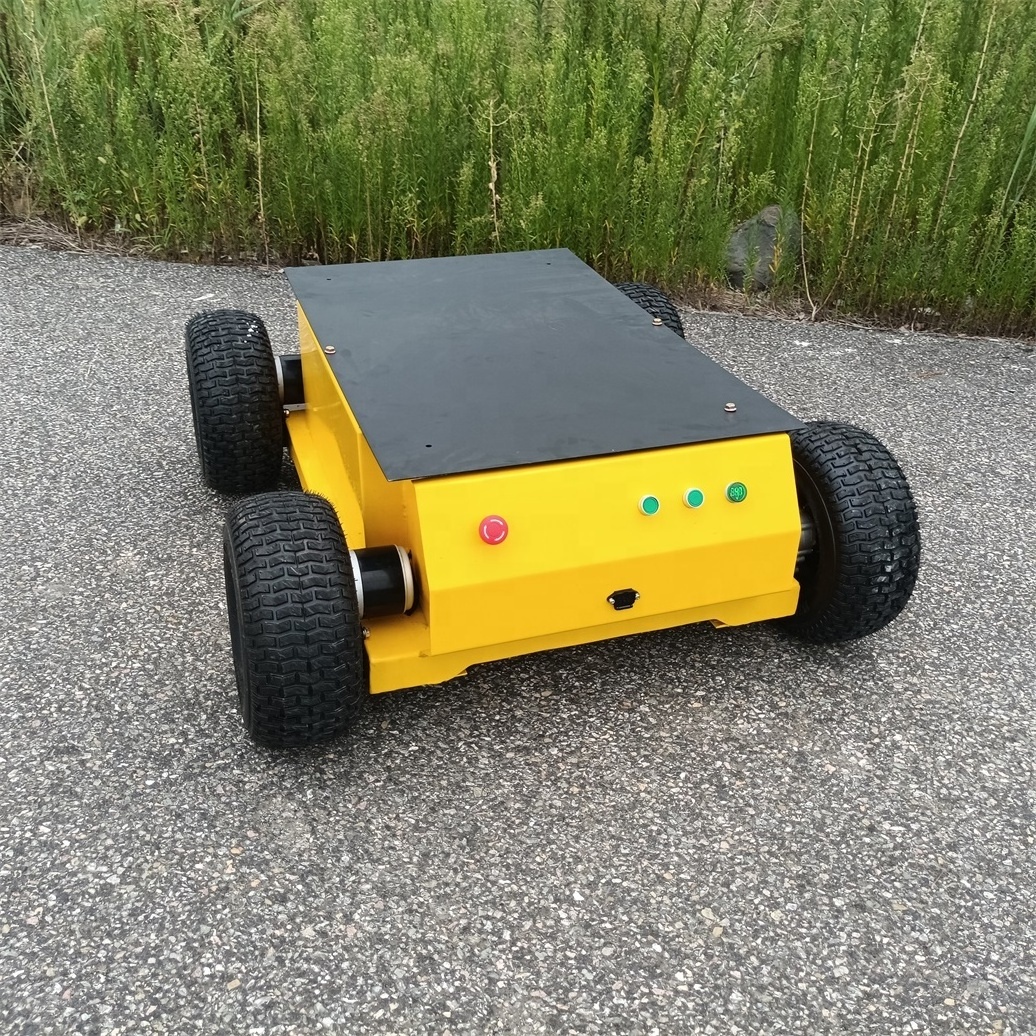

DIY working temperature -20-55 degree high speed cordless wheeled chassis platform

DIY working temperature -20-55 degree high speed cordless wheeled chassis platform

FOB Reference Price: Get Latest Price

≥1 Sets

US $1300

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: DIY 4 Extended Controllable Channel wireless wheel robot tank

Application:: Agriculture, industrial, commercial and so on

Type:: Wheeled

Function:: Carry Cargo or DIY

Material:: Iron

Power supply:: Battery Power

Control Method:: Remote Control

Battery:: 2*12V/12AH

Color:: Yellow or customized

The largest load(Kg):: 300

Quick Details

Marketing Type:: New Product 2023

Place of Origin:: Shandong, China

Brand Name:: VIGORUN

Product name:: DIY 4 Extended Controllable Channel wireless wheel robot tank

Application:: Agriculture, industrial, commercial and so on

Type:: Wheeled

Function:: Carry Cargo or DIY

Material:: Iron

Power supply:: Battery Power

Control Method:: Remote Control

Battery:: 2*12V/12AH

Color:: Yellow or customized

The largest load(Kg):: 300

Product Paramenters

Model	RRB300	RTC300
Walking Speed	0-6km/h	0-4km/h
Working Temperature	-20~55°	-20~55°
Remote Control Range	200m	200m
Walking Motor
Motor Type	Brush electric traction	Brush electric traction
Voltage / Power	24V / 350W	24V / 1000W
Reduction Ratio	23.2:1	30:1
Rotating Speed	75RPM	80RPM
Output Torque	55Nm	80Nm
Wheel	15X6.00-6 vacuum tire	/
Rubber Track
Width	/	150mm
Pitch	/	60mm
Links	/	32
Driving Wheel
Pitch	/	60mm
Tooth number	/	11
Battery	24V 20Ah	24V 20Ah
Remote Control Channel	7	7
Extended Controllable Channel	4	4
Max Payload	300kg	300kg
Wheelbase/Truck Bed	810mm	695595175mm
Track	890mm	/
Overlay Panel	990*625mm	/
Machine Size	10701035430mm	900920580mm
Machine Weight	98kg	113kg
Package Size	11501120600mm	9801000750mm
Gross Weight	130kg	145kg

Key Components

Frame

The frame of the fuselage is reinforced to prevent deformation and displacement. The bottom of the fuselage is reinforced to carry heavy loads.

Tires

The tires are lawn tires with a width of 15cm, which are beautiful, durable, large in width and strong in support.

Track

The track is 15cm wide and capable of working in muddy, rough, and sloping environments.

Emergency Stop Button

It serves as a safety mechanism that allows for the immediate and abrupt stopping of a system or machinery. When pressed, this button activates an emergency braking system, which triggers a rapid and forceful cessation of the operation.

Motor Controller

It adopts the mature walking motor controller on our remote control lawn mower, which has the characteristics of sensitive response and fast response speed.

Function Expansion HUB

The function expansion HUB can control additional 4 channels. It can easily control and expand other functions required by customers without professional remote control knowledge.

Features

1) Beautiful The cordless wheeled chassis platform is beautiful in appearance. The fuselage is large, and the space reserved for development is sufficient.

2) Strong

The bottom of the fuselage is reinforced to carry heavy loads. The installation position of the travel motor has also been reinforced to prevent deformation and displacement.

3) Mature technology

This product is modified on the basis of our very mature cordless wheeled chassis platform , an economical chassis product. The built-in smart chip can intelligently detect the current and heating conditions, which can ensure stable use all year round.
