Quick Details
-
Product name:
-
automatic boom barrier
-
Arm Length:
-
3-6m
-
Rated Power:
-
120W
-
Related Humidity:
-
≤90%
-
Working Temperature:
-
-35℃ to +75℃
-
Remote Control Distance:
-
>30M
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UNIQSCAN
-
Model Number:
-
UT530-C
-
Product name:
-
automatic boom barrier
-
Arm Length:
-
3-6m
-
Rated Power:
-
120W
-
Related Humidity:
-
≤90%
-
Working Temperature:
-
-35℃ to +75℃
-
Remote Control Distance:
-
>30M
180 degree folding arm Barrier Gate Parking lot automatic boom barrier system gate
Features :
- 0.8 second fastest action and 100% duty cycle operation with 5 million MTBF
- Easy installation and maintenance reduces your labor cost
- Heavy-duty and simple-design housing
- System automatically self-checks operation status and reports errors
- Sine lever drive mechanism ensures smooth landing of boom without shaking
- Anti-collision protects boom arm and vehicle (optional)
- Safety--- Anti-hit by pressure resistance bounce
- Safety--- Anti-hit by Loop Detector (Optional)
- Safety--- Anti-hit by IR photocell (Optional)
- Safety--- Anti-hit by “Opening Priority”
- Closing Priority
- Automatically close after the given time
- Automatically close or open by loop detector (Optional)
- Manually control in case of no power
- Boom open up fully or close down in case of power failure
- Anti-condensation in cold climate
- Transparent plastic covers on Control Board
Specifications :
| Product name | automatic boom barrier |
| Open/close time | 1-6s depends on the arm length |
| Octagonal Arm | 3-6m |
| Power Supply | AC 220V±10%,50/60HZ |
| AC Motor | 90W concreted decelerating torque motor |
| Controller | Intel 80C51 MCU, 40 MHz,controlled silicon motor control |
| Remote distance | >30M |
| RS 485 interface | 9600bps, ASCII decimal encoded |
| Housing material | 2mm cold-roller sheet |
| Housing Painting | Automobile Painting, 5 years without rust,shedding and fading |
| IP level | IP 54 |
| Housing size | 345*310*1000mm |
| Package size | 450*420*1200mm |
| G.W | 60 KG |
| Operating temperature | -25°c -70°c |
| Humidity | 10%-95% |
Characters :
- For security, the barrier will automatically go back when meet obstacles during closing.
- Brushless DC motor is more powerful and no maintenance.
- Beam can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1s to 6s.
- The barrier can be installation both rightward and rightward.
- All the operation process is soft without any noise and shaking.
- Infrared photocell interface, Loop detector interface and IC system interface are reserved for the other functions.
- Green light and red light are used inside for indication the position of the beam.
- Manual release device to operate the barrier when power failure.
- Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation.
- Motor cooling fan to avoid the over-heating possibility.
- Auto closing realization through menu setting on the control panel.
- Wire control, remote control optional
- Infrared protection (requires correlation infrared device)
- Optional housing color: yellow, orange, white, red and blue etc.
- Variable frequency controller automatically detects and optimizes boom moving, ensures

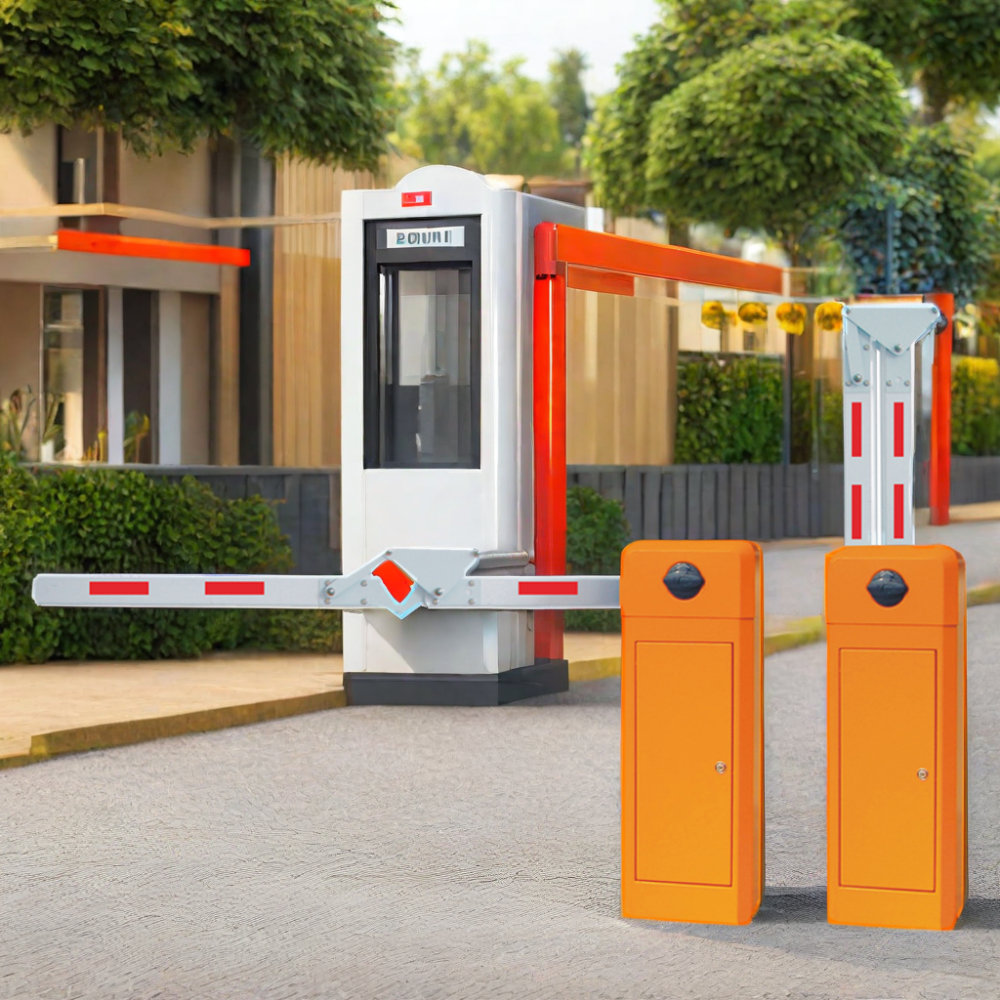

Photo :
