Quick Details
-
Dimension(L*W*H):
-
115*130*120cm
-
Weight:
-
800 KG
-
Pick up width:
-
930mm
-
Bale size:
-
80*93 CM
-
Bale weight:
-
30-45KG
-
Machine size:
-
1540*1400*1360MM
-
Total Weight:
-
800kg
-
Work efficiency:
-
3-8km/h
-
Tire size:
-
155/60R13
-
Match power(hp):
-
45-70
-
PTO speed:
-
540rpm
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Creations
-
Application:
-
agriculture
-
Dimension(L*W*H):
-
115*130*120cm
-
Weight:
-
800 KG
-
Pick up width:
-
930mm
-
Bale size:
-
80*93 CM
-
Bale weight:
-
30-45KG
-
Machine size:
-
1540*1400*1360MM
-
Total Weight:
-
800kg
-
Work efficiency:
-
3-8km/h
-
Tire size:
-
155/60R13
-
Match power(hp):
-
45-70
-
PTO speed:
-
540rpm
-
After Warranty Service:
-
Video technical support
Product Description

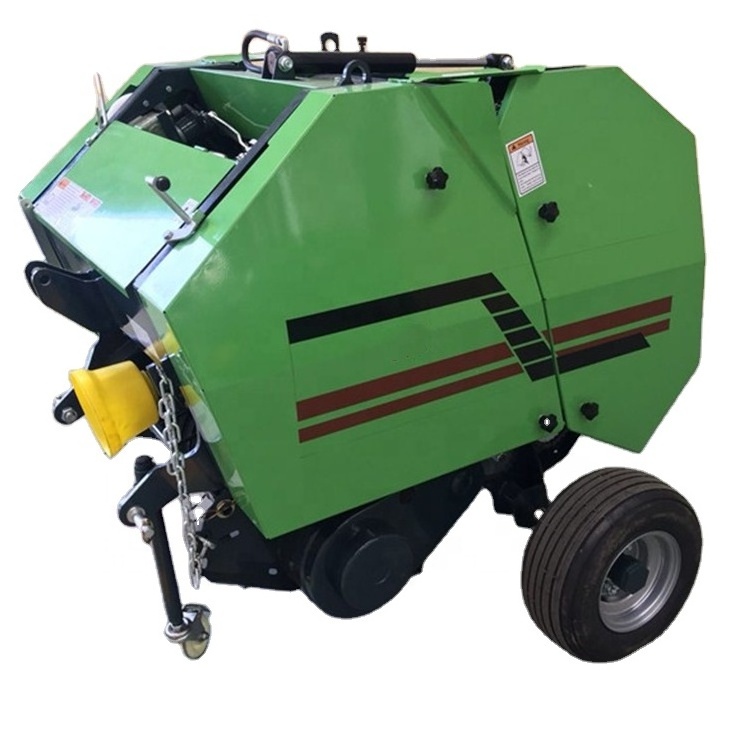

Mini round baler Feature:
1,High efficiency pick up device
2,High success rate of knotting
3,Bale size uniform and solid
4,high efficiency with 3-5 area/hour
5,small volume ,light weight,easy to operate
6,convenience of transportation, storage and processing and can be used with coated machine to realizes the silage capsule.
Product show
Pick up ● Cut and crush
Dual-purpose interchangeable
Product Parameters
The hay mini baler machine is used to pack the remaining straw and forages in the rural and used as feed for ruminants such as cattle and sheep and can be used as reserve feed in pastoral areas.
|
Model
|
kw850
|
kw870
|
kw930
|
kw1090
|
kw1220
|
|
Bale size
|
φ57*63cm
|
φ57*70cm
|
φ57*93
|
φ80*93
|
φ80*120
|
|
Bale weight
|
15-20kg
|
20-30kg
|
25-40kg
|
30-45kg
|
|
|
Machine size(cm)
|
115*115*116
|
115*130*115
|
130*132*120
|
154*140*136
|
154*160*130
|
|
Total Weight
|
430Kg
|
465kg
|
520kg
|
800kg
|
900kg
|
|
Pickup width
|
80cm
|
80cm
|
93cm
|
93cm
|
120cm
|
|
Work efficiency
|
3-5km/h
|
3-5km/h
|
3-8km/h
|
3-8km/h
|
|
|
Tire size
|
16x6.5-8-4PR
|
16x6.5-8-4PR
|
16x6.5-8-4PR
|
155/60R13
|
155/60R13
|
|
Match power(hp)
|
25-45
|
25-50
|
30-50
|
45-70
|
45-70
|
|
Baling way
|
Rope wraping
|
Rope wraping
|
Rope wraping
|
Rope wraping
Net wraping
|
Net wraping
|
|
PTO speed
|
540rpm
|
540rpm
|
540rpm
|
540rpm
|
540rpm
|
