Quick Details
-
Input Ports:
-
16x HDMI, 1x RS232
-
Output Ports:
-
1x HDMI
-
Resolution:
-
Up to 1080P
-
Display Modes:
-
16x1 Seamless Switcher; 4x1/9x1/16x1 Multi-Viewer
-
Feature:
-
Seamless Switch
-
Control Ways:
-
Panel buttons, RS232
-
Certification:
-
FCC, ce, RoHS
Quick Details
-
Brand Name:
-
LINK-MI
-
Model Number:
-
LM-S161
-
Place of Origin:
-
Guangdong, China
-
Input Ports:
-
16x HDMI, 1x RS232
-
Output Ports:
-
1x HDMI
-
Resolution:
-
Up to 1080P
-
Display Modes:
-
16x1 Seamless Switcher; 4x1/9x1/16x1 Multi-Viewer
-
Feature:
-
Seamless Switch
-
Control Ways:
-
Panel buttons, RS232
-
Certification:
-
FCC, ce, RoHS

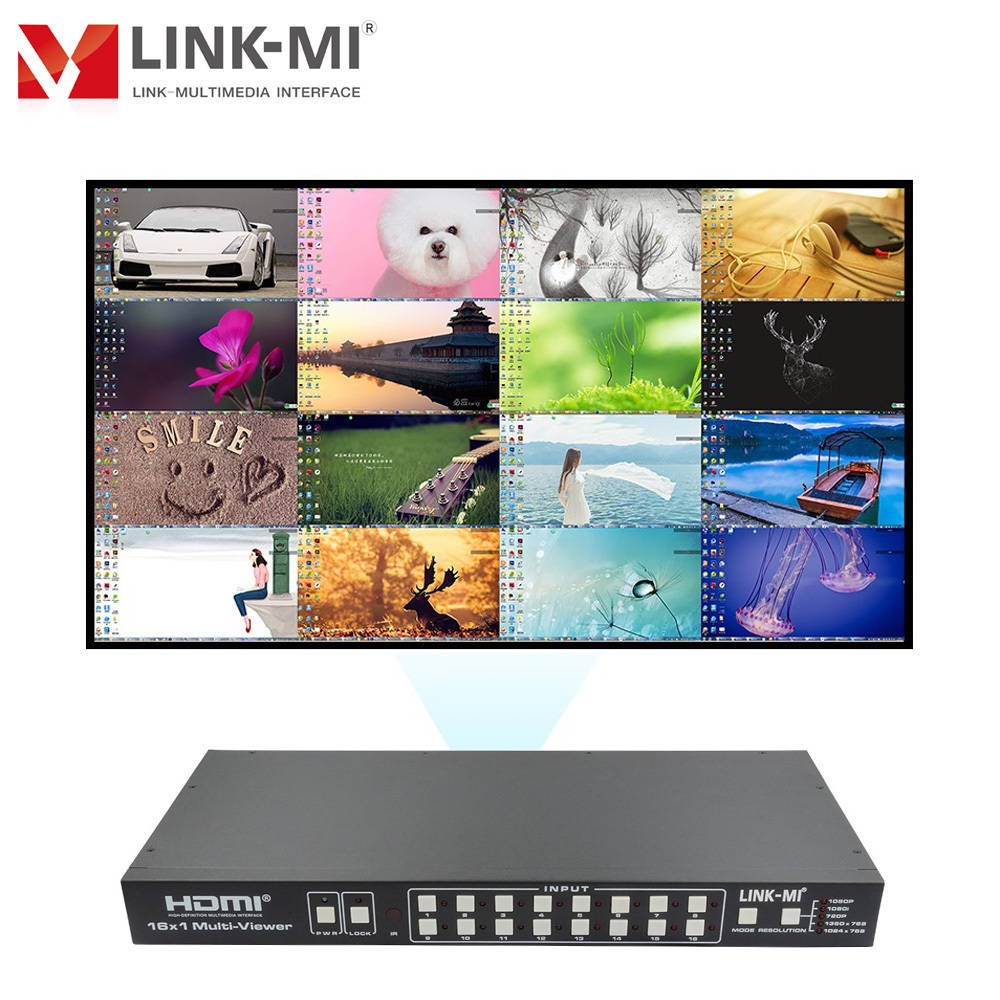

LINK-MI LM-S161 is a high performance 16x1 Multi-Viewer with seamless switcher. It supports 16 High definition input source display on one screen. As a switcher, it can also seamlessly switch the 16 HD inputs freely. The product can be controlled by various ways, through the front panel button control and RS-232 control etc.
1. 4 Display Modes
16x1 Seamless Switcher; 4x1 Multi-Viewer; 9x1 Multi-Viewer; 16x1 Multi-Viewer
2. Interfaces
Support multiplexed HDMI 16-input and 1-output
3. Seamless Switch
Support 16x1 Quad Multi-viewer and seamless switch
4. High Resolution
Support up to 1080p High Definition resolution
5. Multiple output resolution
1080p, 1080i, 720p, 1024x768, 1360x768
6. Scaler Function
Support scale up, scale down function
7. Audio
Support digital audio format LPCM/AC3/DTS
8. Multiple Control Ways
Support panel button and RS-232 control
9. Control Software Interface
| Model No. | LINK-MI LM-S161 |
| Interfaces | |
| Inputs | 16x HDMI (Female type) |
| Outputs | 1x HDMI (Female type) |
| Other | 1x RS232 (for PC Control); 1x IR Ext (in developing) |
| Technical | |
| HDMI Compliance | HDMI 1.3a |
| HDCP Compliance | HDCP 1.2 |
| Video Bandwidth | 2.25Gbps |
| Input Resolution | 480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz, 1080i50/60Hz,1080p 24/30/50/60Hz,800x600@60, 1024x768@60,1280x720@60,1920x1080@60; |
| Output Resolution | 1080p, 1080i, 720p, 1024x768, 1360x768 |
| Audio Output Formats | PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1 |
| ESD Protection Human- body |
Model: ±8kV (Air-gap discharge) , ±4kV (Contact
|
| Function | |
| Display Modes |
16x1 Seamless Switcher; 4x1/9x1/16x1 Multi-Viewer |
| Control Ways | Panel buttons, RS232 |
| Mechanical | |
| Power Supply |
12V/5A DC (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 24W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Housing | |
| Material | Metal Enclosure |
| Color | Black |
| Dimension | 440mm(W)x200mm(D)x45mm (H) |
| Weight | 1.8kg |
| Note: Specifications are subject to change without notice | |
1) 1x Main Unit (16x1 HDMI Multi-Viewer)
2) 1x Power Adapter (12V/5A DC)
3) 1x RS232 Cable
4) 2x Mounting Ears
5) 1x User Manual
