Quick Details
-
Warranty:
-
25years, 30years
-
Brand Name:
-
Trina solar
-
Model Number:
-
TSM-NEG09.28-450w
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1762*1134*30 mm
-
Application:
-
Commercia,Industrial,Homel
-
Certificates:
-
CE TUV ISO PID
-
Solar cell:
-
A-grade
-
Frame:
-
Anodized Aluminium Alloy
-
Cable:
-
4mm ^2 300mm PV Cable
-
Glass:
-
3.2mm Tempered Low Iron
-
Junction Box:
-
IP68 Rated
-
Cell Type:
-
Mono Perc 166*166mm
-
Weight:
-
22.5 kg
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
22.1%
-
Warranty:
-
25years, 30years
-
Brand Name:
-
Trina solar
-
Model Number:
-
TSM-NEG09.28-450w
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1762*1134*30 mm
-
Application:
-
Commercia,Industrial,Homel
-
Certificates:
-
CE TUV ISO PID
-
Solar cell:
-
A-grade
-
Frame:
-
Anodized Aluminium Alloy
-
Cable:
-
4mm ^2 300mm PV Cable
-
Glass:
-
3.2mm Tempered Low Iron
-
Junction Box:
-
IP68 Rated
-
Cell Type:
-
Mono Perc 166*166mm
-
Weight:
-
22.5 kg
Product Description
|

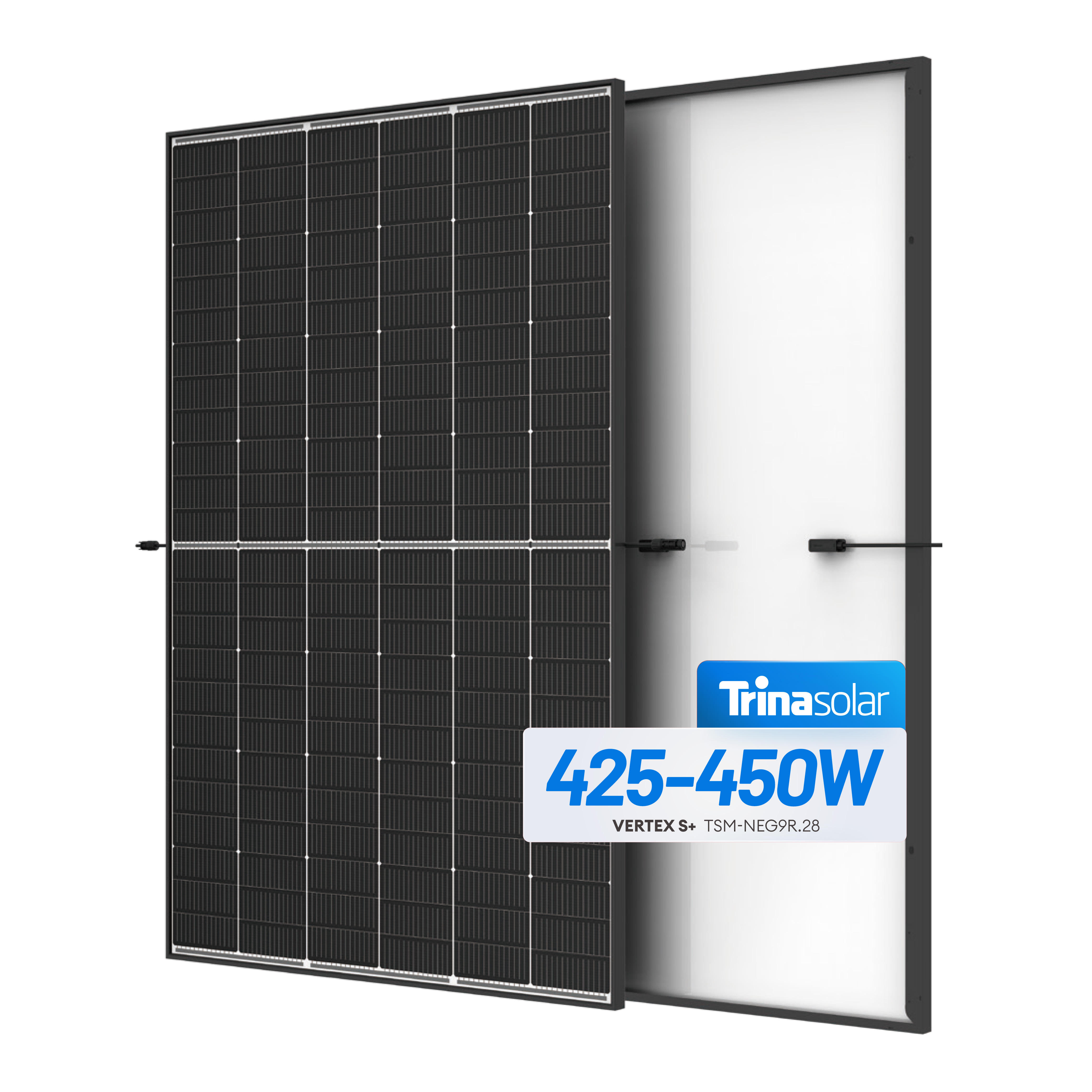

Module Type: TSM-NEG9R.28 425-450M
|
425
|
430
|
435
|
440
|
445
|
450
|
|||||
|
Peak Power Watts-Pmax(Wp)*
|
425
|
430
|
435
|
440
|
445
|
450
|
|||||
|
Power Tolerance-Pmax(W)
|
0 ~ +5
|
|
|
|
|
|
|||||
|
Maximum Power Voltage-Vmpp(V)
|
42.9
|
43.2
|
43.6
|
44.0
|
44.3
|
44.6
|
|||||
|
Maximum Power Current-Impp(A)
|
9.92
|
9.96
|
9.99
|
10.01
|
10.05
|
10.09
|
|||||
|
Open Circuit Voltage-Voc(V)
|
50.9
|
51.4
|
51.8
|
52.2
|
52.6
|
52.9
|
|||||
|
Short Circuit Current-Isc(A)
|
10.56
|
10.59
|
10.64
|
10.67
|
10.71
|
10.74
|
|||||
|
Module Efficiency(%)
|
21.3
|
21.5
|
21.8
|
22.0
|
22.3
|
22.5
|
|||||
|
Maximum System Voltage
|
1500V DC (IEC)
|
|
|
|
|
|
|||||
|
Max Series Fuse Rating
|
20A
|
|
|
|
|
|
|||||
|
Operational Temperature
|
-40~+85ºC
|
|
|
|
|
|
|||||
|
Temperature Coeffcient of Pmax
|
- 0.34%/°C
|
|
|
|
|
|
|||||
|
Temperature Coeffcient of Voc
|
- 0.24%/°C
|
|
|
|
|
|
|||||
|
Temperature Coeffcient of Isc
|
0.04%/°C
|
|
|
|
|
|
|||||
Product details
Production process
Factory
Project Cases
Packing & Delivery
|
|
PACKAGE CONFIGURATION
|
|
|
||
|
Container
|
JAM60S10/PR
|
JAM72S20/MR
|
JAM72S20/MR
|
||
|
Pallet
|
27PCS
|
31PCS
|
31PCS
|
||
|
20GP
|
270PCS
|
310PCS
|
310PCS
|
||
|
40GP
|
648PCS
|
682PCS
|
620PCS
|
||
