Quick Details
-
Brand Name:
-
Allway
-
Application:
-
Welding, polishing, cutting,soldering
-
Outside Size:
-
800*600*1700mm
-
filter cartridge:
-
325*500mm
-
Air volume:
-
3800m³/h
-
Efficiency:
-
99.9%
-
Fan:
-
2.2kw
-
Bottom wheel:
-
four universal wheels
-
Power:
-
2.5kw 220V 1phase 50Hz and 380V 3phase 50Hz
Quick Details
-
Weight (KG):
-
150
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Allway
-
Application:
-
Welding, polishing, cutting,soldering
-
Outside Size:
-
800*600*1700mm
-
filter cartridge:
-
325*500mm
-
Air volume:
-
3800m³/h
-
Efficiency:
-
99.9%
-
Fan:
-
2.2kw
-
Bottom wheel:
-
four universal wheels
-
Power:
-
2.5kw 220V 1phase 50Hz and 380V 3phase 50Hz
Product Description
FUME EXTRACTORS THAT WORK AS HARD AS YOU DO
Welding and metal fabricating can be tough, dirty jobs. But they should never be unsafe. Protecting workers from dangerous weld fumes and particulates is our priority. We understand your needs because we’re a manufacturer ourselves.

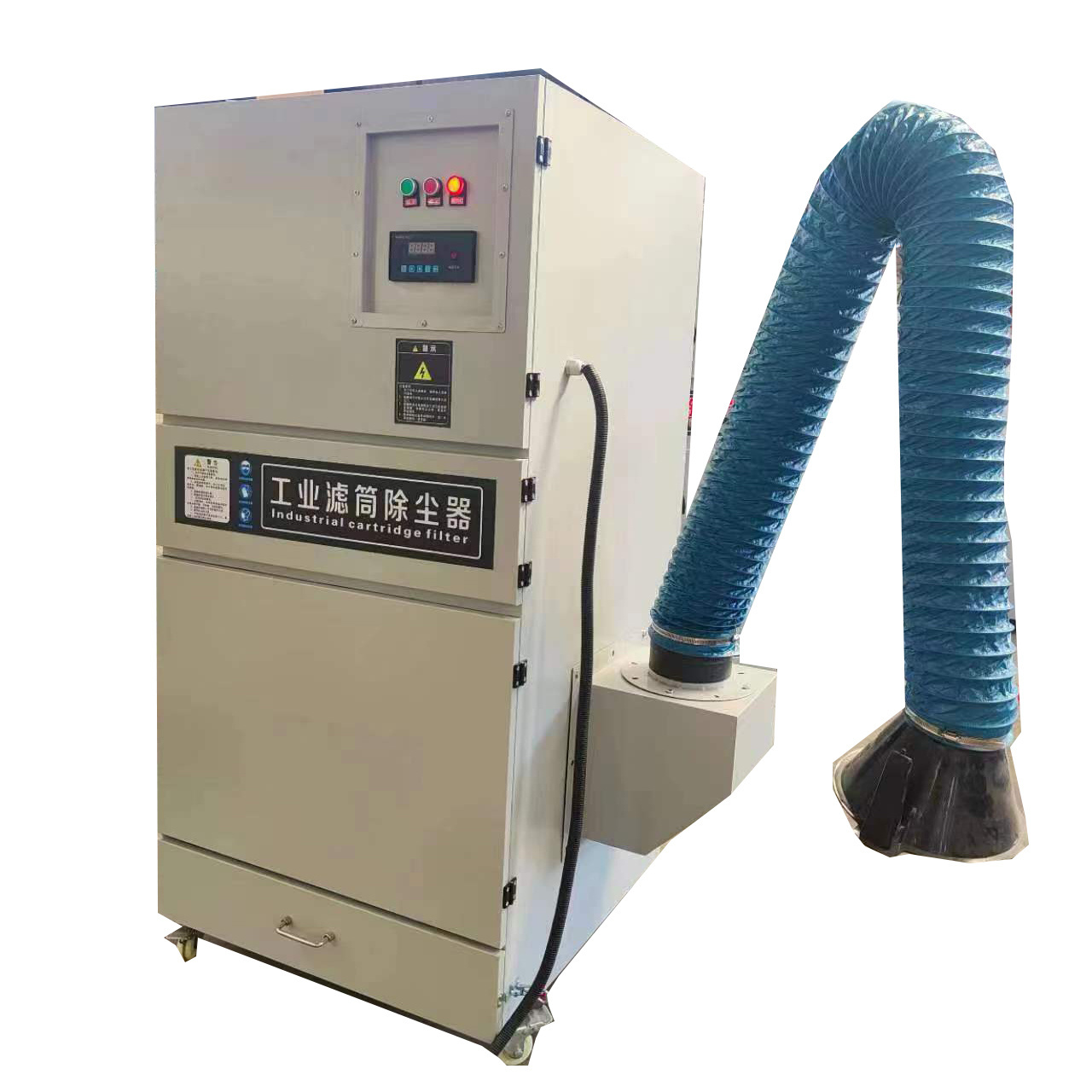

Welding Fume Extractor -The solder fume extractor is a kind of industrial environmental protection equipment, which is mainly used in arc welding, CO2 protection welding, MAG protection welding, special welding, cutting and polishing place.The purified air can be directly discharged indoors.
Welding Fume Extractor -The solder fume extractor is a kind of industrial environmental protection equipment, which is mainly used in arc welding, CO2 protection welding, MAG protection welding, special welding, cutting and polishing place.The purified air can be directly discharged indoors.
Specification
|
Model
|
AW-W002
|
|
Outside Size
|
800*600*1700mm
|
|
Arm
|
1set of arm,Φ160*2000mm,with horn month for collecting the smoke
|
|
Wall panel
|
Carbon steel board with powder coating, the main body is 1.2mm thick
|
|
Air exhaust system
|
1 set of 2.2kw outlay motor fan. Each fan air flow capacity:3000m³/h,pressure is 800Pa, speed is 2900r/min,fan is China Yinniu
brand |
|
Filters
|
2pcs filter cartridge inside, each filter size: 325*500mm, 0.5um,with pulse shaking device for clean the filter in time.Air
compressor pressure:0.6-0.8MPa,valve pressure:0.6Mpa. Finial filter rate is 98% |
|
Control system
|
Electric control panel.Power on/off control, fan controls, pulse controls, light control,emergency stop.The electric components
use Delixi Brand |
|
Bottom wheel
|
Four universal wheels on bottom for moving the machine easily
|
|
Power
|
2.5kw, 220V 1phase 50Hz and 380V 3phase 50Hz
|
Product structure
FUME EXTRACTOR ADVANTAGE
1.Telescopic flexible suction arm can be turned at 360 degrees and can be stretched to any position.
2.The integrated high efficiency filter element can filter the welding fume (0.3 mu m) up to 99.97% and maintain extremely high gas flow rate.
3.Compact and compact, it can be used even in narrow workplaces.
4.Installed with a universal wheel, mobile and flexible and flexible.
5.Equipped with high-performance turbine fans, large air intake and low noise.
6.The consumables in the purifier are stable and easy to replace.
7.There are 2 pieces pulse valves & 1 set air header for filter self cleaning .
8.Dust fall down on the tray, the tray can be taken out for cleaning .
