Quick Details
-
Brand Name:
-
A&ELAB
-
Model Number:
-
AE-05C
-
Power supply:
-
AC220V±10% ?50Hz (Can be changed to your country request)
-
Furnace Volume Movements Adjustable:
-
50mm
-
Flask Branch Aperture Plate:
-
Diameter 50mm and Two 37.5mm
-
Bath Condensation Temperature Range:
-
?Room Temperature ~ 80 ℃
-
Standard:
-
ASTM D86
Quick Details
-
Warranty:
-
2 years
-
Power:
-
0 ~ 1200W Continuously Adjustable
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
A&ELAB
-
Model Number:
-
AE-05C
-
Power supply:
-
AC220V±10% ?50Hz (Can be changed to your country request)
-
Furnace Volume Movements Adjustable:
-
50mm
-
Flask Branch Aperture Plate:
-
Diameter 50mm and Two 37.5mm
-
Bath Condensation Temperature Range:
-
?Room Temperature ~ 80 ℃
-
Standard:
-
ASTM D86
Product Description
Features & Specification
Features:
1.Standards to be met: ASTM D92, IP 36, ISO 2592
2.HS code: 9027809900
3.Specifications:
1.Temperature range: ambient and with a recommended minimum range of up to +400 °C.
2.Temperature sensor: PT100 stainless steel.
3.Automatic barometric correction by pressure sensor.
4.Automatic cooling device.
5.Automatic gas ignition source.
6.Superficial skin remover for samples that form skin (skimmer).
7.Automatic flash point detection.
8.Automatic safety shutdown.
9.Storage of results: minimum 100 results, with facilities to download information.
10.Electrical requirement connection to 220V, 50/60 Hz
11.Equipment use and management manual, in digital and physical format.
12.Equipment installation tests.
13.Training of personnel for the correct use of equipment handling.
Technical Specifications:
|
No.
|
Tech Indicator
|
Description
|
|
1
|
Power
|
AC220V±10% 50Hz (Can be changed to your country request)
|
|
2
|
Distillate Heating Power
|
0 ~ 1200W Continuously Adjustable
|
|
3
|
Furnace Volume Movements Adjustable
|
50mm
|
|
4
|
Flask Branch Aperture Plate
|
φ50mm and Twoφ37.5mm
|
|
5
|
Bath Condensation Temperature Range
|
Room Temperature ~ 80 ℃
|
|
6
|
Standard
|
ASTM D86
|
|
7
|
Characteristics
|
♦Double Tue Room
|
|
|
|
♦Can be Added Cooling System
|
|
|
|
♦Digital Temp. Control
|
|
|
|
♦Cooling Fast
|
|
|
|
♦Easy to Operation
|
|
|
|
♦Testing Exactly
|
|
|
|
♦Result Reliable
|
Standard Accessories:
|
No.
|
Description
|
Note
|
Unit
|
Qty
|
|
1
|
Certification & Operation Video
|
|
Copy
|
1 Each
|
|
2
|
Main Part
|
|
Set
|
1
|
|
3
|
Rubber Plug
|
|
Piece
|
6
|
|
4
|
Graduated Cylinder
|
|
Piece
|
2
|
|
5
|
Fuse
|
25A
|
Piece
|
2
|
|
6
|
Thermometer
|
0~100℃
|
Piece
|
1
|
|
7
|
Thermometer
|
-2~300℃
|
Piece
|
2
|
|
8
|
Thermometer
|
-2~400℃
|
Piece
|
2
|
|
9
|
Flask
|
|
Piece
|
2
|
|
10
|
Furnace Mat
|
φ37.5, φ50
|
Piece
|
Each 2
|
Packing Information
:
|
Catalog Number
|
Dimension (L×W×H) (mm)
|
Net Weight (Kg)
|
Gross Weight (Kg)
|
Materials of Package
|
|
AE-05C
|
850×600×720
|
86
|
92
|
Treated Wooden Package
|
Ordering Information
:
|
Catalog Number
|
Product Description
|
Electrical Requirements
|
|
AE-05C
|

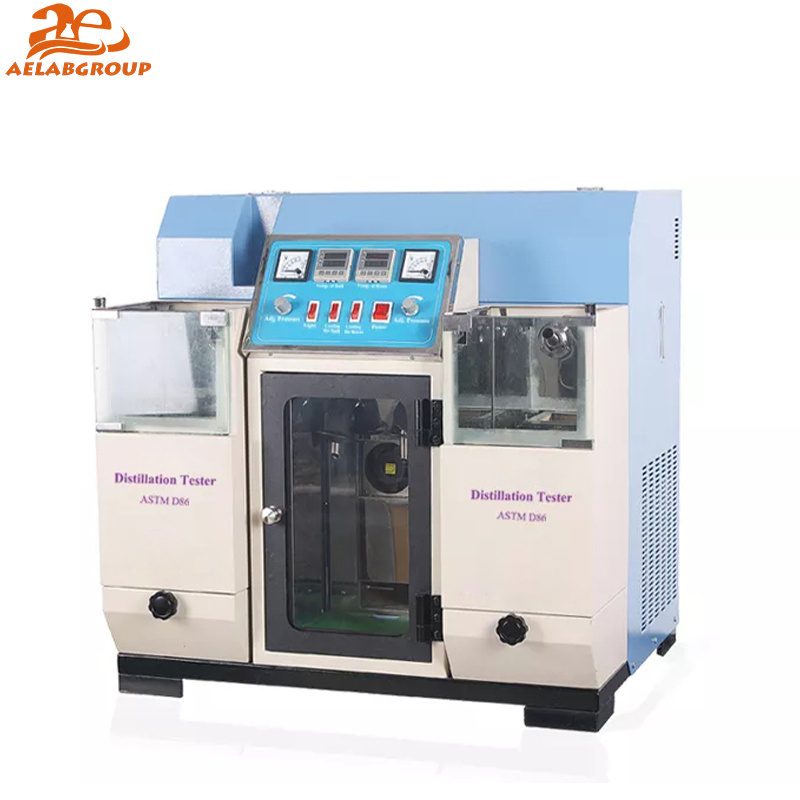

Distillation Tester
|
AC220V±10% 50HZ
(Can be changed to your country requirement)
|
