Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAYANG
-
Model Number:
-
DY-T980
-
Warranty:
-
1 Years
-
Product name:
-
tyre machine and wheel balancer
-
Color:
-
blue or customized
-
Rim clamping from inside:
-
14"-30"
-
Outside clamping:
-
0
-
Bead breaker force:
-
2500kg
-
Gross Weight:
-
632kg
-
Certification:
-
CE ISO
-
Max. wheel diameter:
-
51"(1300mm)
-
Model:
-
DY-T980
Quick Details
-
Motor Power:
-
0.75/1.1KW/0.55KW
-
Operating Pressure:
-
8-10bar
-
Power Supply:
-
110V-415V,50/60HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAYANG
-
Model Number:
-
DY-T980
-
Warranty:
-
1 Years
-
Product name:
-
tyre machine and wheel balancer
-
Color:
-
blue or customized
-
Rim clamping from inside:
-
14"-30"
-
Outside clamping:
-
0
-
Bead breaker force:
-
2500kg
-
Gross Weight:
-
632kg
-
Certification:
-
CE ISO
-
Max. wheel diameter:
-
51"(1300mm)
-
Model:
-
DY-T980

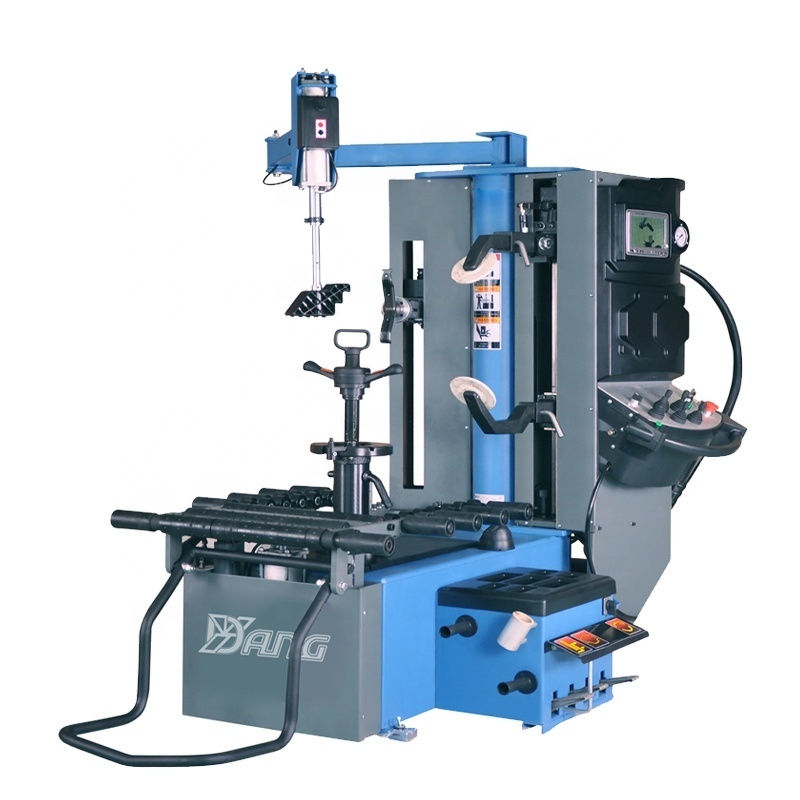

1. Pictures of tire changer
2. Main features of tire changer
1. Main shaft can move longitudinally with double speed.
2. Mounting head can be in center automatically.
3. Bead breaker is centering with the center of main shaft, position can be adjustable.
4. Tire lifter can rotate the tire automatically.
5. High strength design of the upper gearbox can ensure the machine to demount stiff tire.
6. Monitor system is convenient to watch the working process.
7. Fast air inflating can be operated by two hands, more safe.
8. Stop on the condition of non-operation automatically, saving electric power.
9. Imported pump station.
Specifications
Motor power--------------- 0.85/1.1KW
Rim Clamping inside-------------14"-30"
Max. tire diameter------------- 51”(1300mm )
Max. tire width----------------- 3”-13”(330mm )
Working pressure------------8-10bar
Bead breaker force----------1400kg
Power supply-----------------100V-415V,50/60HZ
N.W-----------------------------632kg
Package size---------------- 1680*1150*2000mm
4. Factory
5. Our machines in worldwide
6. Delivery
Warranty will continue to be valid for a period of 12 months provided the following warranty conditions are observed.
Warranty Conditions:
1. This warranty is valid from the date of receiving equipments.
2. This warranty is given for the benefit of the first owner only and claims by parties other than the original purchaser will not be recognized, as the warranty is not transferable.
3. This warranty is only valid when the product has been used in accordance with the Installation, Operation, Maintenance and Instruction Manual and by a competent person trained in its use.
4. This warranty does not apply to damage or deterioration, which is caused by human.
5. During warranty period, shipping cost of replacement products or parts are our responsibility.
6. Beyond the warranty period, we provide spare parts to customers at factory cost.
