Quick Details
-
Model Number:
-
TZ-93BPG02
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-30℃~+70℃
-
Max. Current:
-
3A
-
Product name:
-
Interlocking Switch
-
Operating speed:
-
0.1m-0.5m/s
-
Contact resistance:
-
25mΩ or less
-
Applied edge resistance:
-
Above 100MΩ (under 500VDC)
-
Insulation voltage:
-
400V
-
Withstand voltage:
-
AC2500V/Umip 4KV
-
humidity:
-
95% RH
-
Short circuit protection:
-
Fuse 10A
-
Installation method:
-
Vertical
-
WARRANTY:
-
1year
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
240v
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
Tend
-
Model Number:
-
TZ-93BPG02
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-30℃~+70℃
-
Max. Current:
-
3A
-
Product name:
-
Interlocking Switch
-
Operating speed:
-
0.1m-0.5m/s
-
Contact resistance:
-
25mΩ or less
-
Applied edge resistance:
-
Above 100MΩ (under 500VDC)
-
Insulation voltage:
-
400V
-
Withstand voltage:
-
AC2500V/Umip 4KV
-
humidity:
-
95% RH
-
Short circuit protection:
-
Fuse 10A
-
Installation method:
-
Vertical
-
WARRANTY:
-
1year
-
Certification:
-
CE

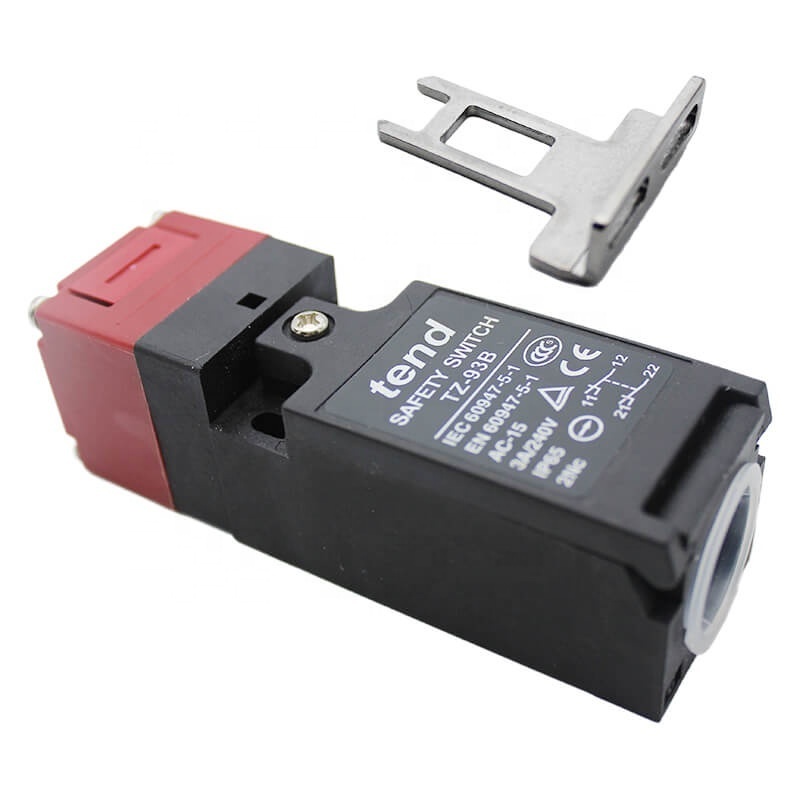

TZ-93B TZ-93BPG02 Taiwan Tend Original safety door limit switch with vertical latch
TZ-93BPG02
Taiwan Tend Double Pole Safety Key Interlock Switch limit switch
with Lock vertical installation type
Product Description
Technical Specifications
| Operating speed | 0.1m-0.5m/s |
| Contact resistance | 25mΩ or less |
| Applied edge resistance | Above 100MΩ (under 500VDC) |
| Insulation voltage | 400V |
| Withstand voltage | AC2500V/Umip 4KV |
| vibration | Maloperation durability:10-50Hz, 0.65mm amplitude |
| Shock | Mechanical durability :1.000m / s 2 ~ above (above 100G) |
| Maloperation durability:300m / s ~ or more (about 30G or more) | |
| Use week temperature | -30 ° C- + 70 * C |
| humidity | 95% RH |
| Service life | Machinery: 1 million times or more |
| Electrical: more than 150,000 times | |
| waterproof level | IP65 (EN60947-5-1) |
| Short circuit protection | Fuse 10A |
Dimensions(mm)
Q:How to order our product?
A: 1) Please tell us the model and quantity and other request you need.
2) We make the PI for you.
3) After you confirm the PI, we arrange the order for you after receiving your payment.
4) After the goods finished, we send the goods out to you and tell you the tracking number.
5) We will track your goods until you receive the goods.
Q: What's your warranty?
A: One year.
Q: What's your contact information?
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What about MOQ?
A: First order MOQ=1pcs.
Q: If I want to release order, what's the payment method you accept?
A: We accept T/T, Paypal, Western union, L/C.
Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
