Quick Details
-
Model Number:
-
ZW-10W-18V
-
Type:
-
Standard Solar Panel
-
Solar cell:
-
Poly Cell
-
Frame:
-
Aluminium Frame
-
Glass:
-
3.2mm Tempered Low Iron
-
Efficiency:
-
18~21%
-
Max Voltage:
-
18V
-
Open Voltage:
-
21.5V
-
Max Current:
-
0.55A Poly
-
Short Current:
-
0.6A Poly
Quick Details
-
Warranty:
-
2 years, 3 Years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Zhiwang
-
Model Number:
-
ZW-10W-18V
-
Type:
-
Standard Solar Panel
-
Solar cell:
-
Poly Cell
-
Frame:
-
Aluminium Frame
-
Glass:
-
3.2mm Tempered Low Iron
-
Efficiency:
-
18~21%
-
Max Voltage:
-
18V
-
Open Voltage:
-
21.5V
-
Max Current:
-
0.55A Poly
-
Short Current:
-
0.6A Poly

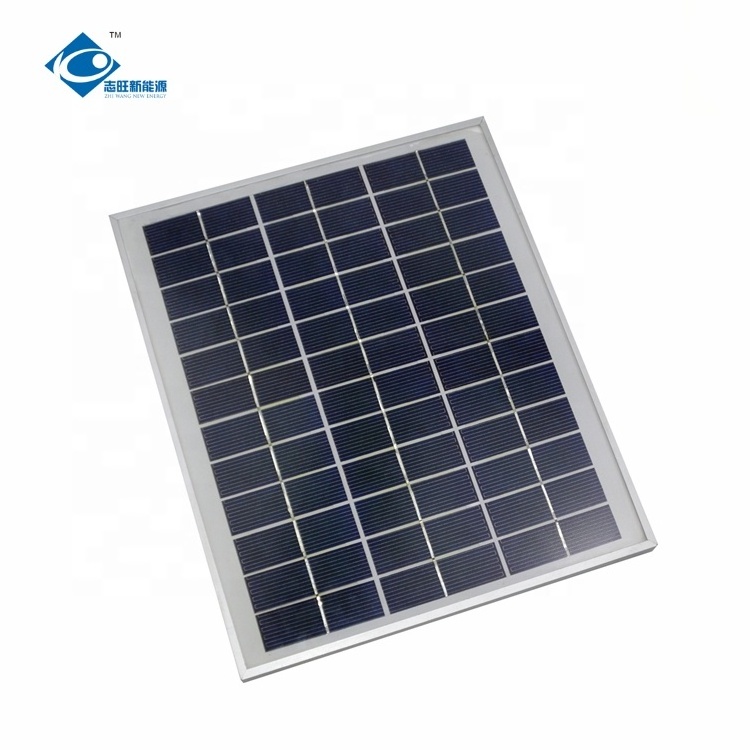

High quality 18V mini save energy solar panels ZW-10W-18V 10W for home solar panels system power
|
Model: |
ZW-10W-18V-1 |
|
|
Brand: |
Zhiwang |
|
|
Size: |
330x250x17mm |
|
|
Material: |
Polycrystalline silicon plastic (aluminum) border color material can be customized. |
|
|
Battery: |
36 |
|
|
Peak power: |
10W |
|
|
Size of Cell |
31.2*52mm |
|
|
Max voltage: |
18V |
|
|
Max current: |
0.55A |
|
|
Open voltage: |
20.8V |
|
|
Short current: |
0.65A |
|
|
Weight: |
1.7KG |
|
|
Keyword: |
Glass Laminated Solar Panel |
|
|
Front Glass: |
3.2mm, High Transmission, Low iron, tempered Glass |
|
|
Color: |
Customize |
|
|
Raw Material: |
Glass and Plastic Frame Poly-crystalline or Mono-crystalline Silicon EVA-------excellent anti-aging EVA TPT-------TPT hot seal made of flame resistance |
|
|
Operating Temperature(°C) |
-40°C ~ + 85°C |
|
|
Maximum System Voltage |
20V(UL)/25V(IEC) DC |
|
|
Maximum Rated Current Series |
3A |
|
|
Nominal Operating Cell Temperature (NOCT) |
47+/-2°C |
|
|
Current temperature coefficient |
%/K |
0.06+/-0.01 |
|
Voltage temperature coefficient |
mV/K |
-(78+/-10) |
|
Power temperature coefficient |
%/K |
-(0.5+/-0.05) |
Module characteristic:
1. High conversion rate and efficient output Poly crystalline Silicon.
2. Mini Solar Panels with excellent weak light effect to charge solar kits system.
3. High quality and high transmittance of toughened glass special for mini solar panels.
4. The unique process makes the components look strong and anti-snow, and easy to install.
5. Special techniques to avoid Mini Solar Panels the freezing and deformation of water in the frame Suitable for all kinds of small power appliances, emergency lights, advertising lights, traffic lights, household lights, electric fans, such as solar water pumps, solar street lamps, small solar systems.
6.Mini Solar Panels suitable for all kinds of small power appliances, emergency lights, advertising lights, traffic lights, household lights, electric fans, such as solar water pumps, solar street lamps, small solar systems.
7. Quality solar cells with high solar energy conversion up to 19.5%.
8. Mono-crystalline or poly-crystalline silicon solar cells are for options.
9. Transparent low-iron tempered glass and anodized aluminum frame to ensure modules working in extreme outdoor environment.
10. Lifespan up to 3 years for solar panel photo-voltaic.
11. Circuit board 1.0mm board or 1.2mm board or 1.5mm board
12. Silicon wafer 18% or more multi-chip or 20% or more single chip
13. High transparency epoxy resin, PET, EVA film or semi-explosion-proof transparent glass
14. Black high temperature protection strip sticking in.
15. Packing method Carton packing
Product specification
Battery type monocrystalline silicon or polysilicon
Product process plastic frame or aluminum frame
Glass laminate
Standard cable for the solar panel optional: Type -c male, 1m long, 1A, 5V SBU signal output
International solar energy inspection standard: solar radiation 1000W/M², temperature 25℃, atmospheric quality AM15.
The test conditions can be replaced by 500W halogen tungsten lamp, the illumination is adjusted to 38000LUX, and the test distance is 15CM.
The test temperature shall be controlled at 25 ° C for no more than 30 minutes, and the high-temperature test at 60 ° C for no more than 1 minute.
1. No shelter under the sun
2. Operating temperature -20°C-80° C
3. Iron temperature :360+10℃, welding time is not more than 3 seconds
Q. Are you a manufacturer or a trading company?
A. We are two factories in Yuyao,Zhejiang and Xuzhou, Jiangsu, we can deal with OEM & ODM, customization available.
Q. Is it OK to print my logo on solar paenl product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q. What is your terms of delivery?
A: EXW, FOB, CIF. And other accepted payment method.
Q. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q.How many years for warranty?
A: Our warranty is 5 -10 years.
