Quick Details
-
Part name:
-

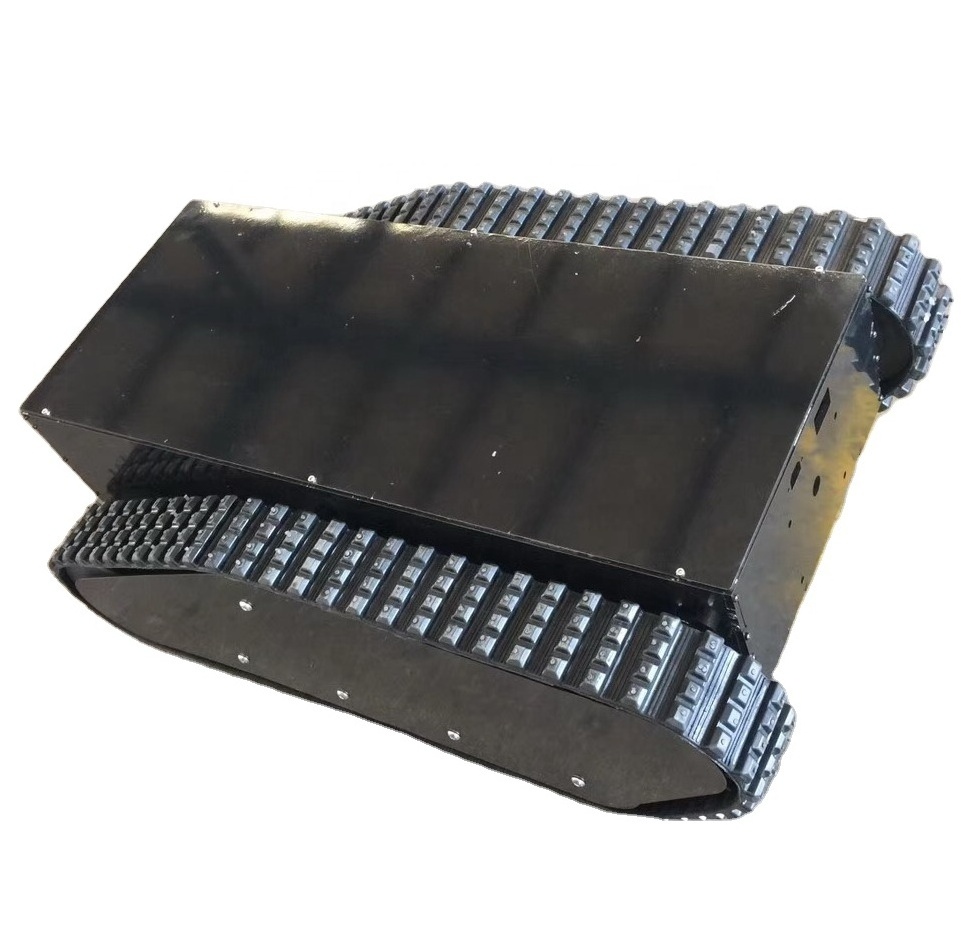

Rubber Track Chassis
-
Keyword:
-
tracked vehicle chassis rubber track undercarriage
-
Model:
-
Customer Required customization
-
Usage:
-
fire fighting chassis farm chassis
-
Material:
-
rubber track &steel frame
-
Package:
-
Plywood package
-
Delivery:
-
about 7days
-
Shipment:
-
sea, DHL TNT UPS FEDEX
-
Payment:
-
TT Western Union. Paypal
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
KCM
-
Applicataion:
-
ATV/UTV,agriculture,wheelchair etc
-
Part name:
-
Rubber Track Chassis
-
Keyword:
-
tracked vehicle chassis rubber track undercarriage
-
Model:
-
Customer Required customization
-
Usage:
-
fire fighting chassis farm chassis
-
Material:
-
rubber track &steel frame
-
Package:
-
Plywood package
-
Delivery:
-
about 7days
-
Shipment:
-
sea, DHL TNT UPS FEDEX
-
Payment:
-
TT Western Union. Paypal
We have developed various tracked undercarriage systems and the load capacity is from 0.5 ton to 20 ton. It has been widely applied in drilling machines (core drill, horizontal directional drilling rig, belt engineering drill, and engineering rig), engineering machines, mining, colliery, agricultural and gardening machines. Meanwhile, we have a lot of experience engineers who can provide you technical support and technical consultancy to meet your needs.
Special Features:
♦ Adopt high strength engineering rubber track.
♦ The track motor can be fixed displacement or variable displacement concealed planetary gearbox and hydraulic motor, such as Nabtesco (Japen), Brevini (Italia). If you need, we can also provide track motor made by our own factory.
♦ The beam is made of Q345B with high loading capacity.
♦ It can also be designed and manufactured on customers’ request.
♦ It is widely applied in all kinds of large drilling rig, excavator, paver, Aerial Working Platform and construction engineering machines.
Rubber tracked chassis part of the small size as below , for big size ,please kindly contact us
|
Small size rubber track undercarriage chassis platform |
|||||||||
|
Model |
Length |
Width |
Height |
Sprocket Diameter |
Rubber Track Model/Width |
Rubber Track Link |
Weight |
Load-bearing Weight |
Stent |
|
KCM-40 |
540mm |
545mm |
150mm |
140mm |
40/40mm |
27 |
26.5kg |
50kg |
Aluminum Alloy Bracket |
|
KCM-50 |
810mm |
377mm |
165mm |
99mm |
KCMDG-50/50mm |
75 |
50kg |
100kg |
Stainless Steel Bracket |
|
KCM-76 |
940mm |
550mm |
210mm |
200mm |
KCM-A/76mm/KCM-B/60mm |
138/84 |
24.15kg |
150kg |
Aluminum Alloy Box |
Spare Parts for the rubber tracked chassis undercarriage:
Packing for shipment:
