Quick Details
-
Model Number:
-
AXLCDS194
-
Place of Origin:
-
Henan, China
-
Warranty:
-
5 Years/60 Months
-
Port connector:
-
USB&PS2/VGA
-
Control port type:
-
USB/VGA
-
Computer selection:
-
On-screen menus, hotkeys, buttons
-
Hotkeys:
-
Scroll-Lock/Caps-Lock/Num-Lock/KVM OSD
-
Humidity:
-
5-90%@45℃
-
Display specification:
-
15"/15.6"/17"/17.3"/18.5"/19"/21.5"
-
Display ratio:
-
4:3; 16:9
-
Gross weight of the model:
-
17-20KG
Quick Details
-
Monitor Connections:
-
1 Ports
-
Resolution:
-
1920 X 1440
-
Brand Name:
-
Axtron
-
Model Number:
-
AXLCDS194
-
Place of Origin:
-
Henan, China
-
Warranty:
-
5 Years/60 Months
-
Port connector:
-
USB&PS2/VGA
-
Control port type:
-
USB/VGA
-
Computer selection:
-
On-screen menus, hotkeys, buttons
-
Hotkeys:
-
Scroll-Lock/Caps-Lock/Num-Lock/KVM OSD
-
Humidity:
-
5-90%@45℃
-
Display specification:
-
15"/15.6"/17"/17.3"/18.5"/19"/21.5"
-
Display ratio:
-
4:3; 16:9
-
Gross weight of the model:
-
17-20KG

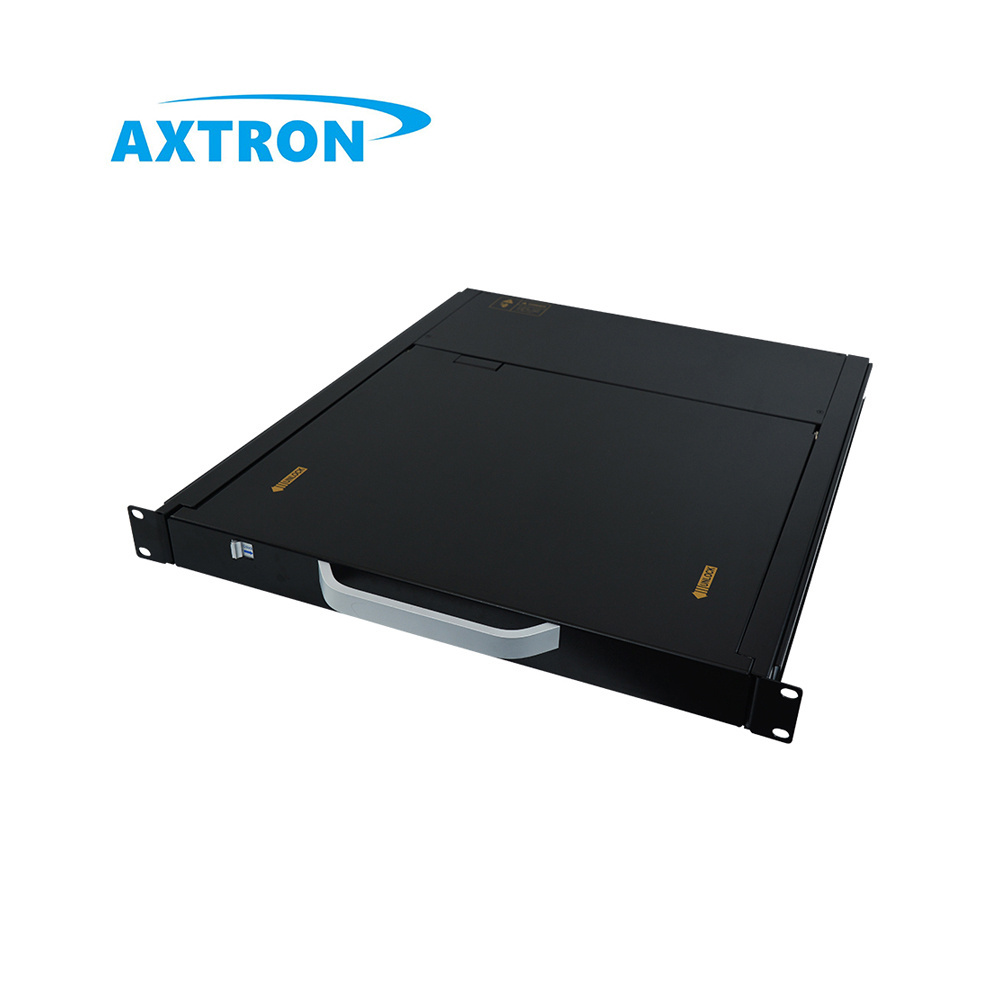

KVM control platform is a control platform that integrates multi-port KVM switching function in 1U height space. It realizes the operation of multiple computers through a group of devices (including LCD display, keyboard and mouse). Thus, the cost of configuring the keyboard, mouse, and monitor separately for each computer and the space occupied by them are saved.
Installation is fast and simple, requiring only cables to the right port and no software configuration, so there are no complex installation processes or incompatibilities. The KVM control platform can directly connect and control 16 hosts, and support multiple hardware platforms and multiple operating systems.
-
4/8/16 port KVM switch
- Support a local control terminal
- Support multiple system: Microsoft Windows, Netware, Unix, Linux, Kylin
- Not need to install software, and you can simply select your computer through on-screen menus, buttons, or hotkeys
- Provide multiple hotkey combinations for switching computer ports and other control functions . So the hotkey function can be used on multiple types of keyboards and also prevent the hotkey duplication problem
- Support two levels password security
- Provides ACL (Access Control List) security f unction s, can store eight independent control lists
- Hot pluggable: add or remove connected computers without shutting down the KVM switch or computer
- Support display plug and play
- When switching computers, the keyboard state can be restored
|
|
|
Port connector |
USB&PS2/VGA |
|
Number of ports |
4/8/16 |
|
Control port type |
USB/VGA |
|
Longest VGA Cable |
1.8-10m |
|
Image resolution (local control end) |
1920 x 1440 |
|
Computer selection |
On-screen menus, hotkeys, buttons |
|
Hotkeys |
Multiple hotkeys (Scroll-Lock/Caps-Lock/Num-Lock/KVM OSD) |
|
Computer port light |
LED light for each port: digital display and blue LED signal light |
|
Auto scan time |
10-255 seconds |
|
Keyboard |
USB&PS2 notebook 104 keyboard, mechanical life: 1 million times |
|
Mouse |
PS2 Notebook Touchpad |
|
Maximum number of cascade |
Up to 256 computers 16-port model |
|
LCD displays parameters |
Display specification: 15"/15.6"/17"/17.3"/18.5"/19"/21.5" |
|
Display ratio: 4:3; 16:9 |
|
|
Display type: XVGA -- FHD TFT LCD |
|
|
Display brightness: 300--1000 ( can customized) |
|
|
Display contrast ratio: 1000:1 |
|
|
Display resolution: 1024 * 768 -- 1920 * 1080 Full HD |
|
|
Display color: 16.7 M |
|
|
Display backlight: LED life, working 30,000-40,000 hours |
|
|
Display pixels: see Appendix A for details. |
|
|
Display visual surface: see Appendix Form A for details |
|
|
Power supply type |
DC 12V adapter (built-in power supply random) |
|
Power supply input |
AC 100-240V, 50/60HZ, DC12V 3.33A. |
|
Model structure |
1U 19” Rack, |
|
Enclosure material |
Aluminum alloy + electrolytic plate |
|
Case color |
Industrial paint black sprinkle dot (color can be customized) |
|
Model power |
About 19 W |
|
Operating humidity |
0-80%, no condensation |
|
Operating temperature |
0~60℃ |
|
Storage temperature |
-20~60℃ |
|
Gross weight of the model |
17-20KG |
|
Model size (mm) |
See Appendix Table A |
|
Model size: MM |
Model display resolution: |
|
15" Series Size: 445 x440 x44 |
Display: 1024 * 768 60/75HZ |
|
15.6" Series Size: 445 X 440 44 |
Display: 1920 * 1024 60HZ |
|
17" Series Size: 445 x520 X 44 |
Display: 1280 * 1024 60/75HZ |
|
17.3" Series Size: 445 X 475 X 44 |
Display: 1920 * 1080 60HZ |
|
19" Series Size: 445 x585 x44 |
Display: 1280 * 1024 60/75HZ |
|
18.5" Series Size: 445 x530 x44 |
Display: 1366 * 768 60/75HZ |
|
21.5" series size: 445 x668 x44 |
Display: 1920 * 1080 60HZ |
|
18.5" HD Series Size: 445 x530 x44 |
Display: 1920 * 1080 60HZ |
|
23.8" HD Series Size: 445 x705 x44 |
Display: 1920 * 1080 60HZ |
|
Model display screen: |
Display visual type: MM |
|
15" Series |
305 * 203 4:3 Pixels: 0.264 * 0.264 |
|
15.6" Series |
346 * 194 16:9 Pixels: 0.180 * 0.180 |
|
17" Series |
338 * 269 4:3 Pixels: 0.264 * 0.264 |
|
17.3" Series |
380 * 215 16:9 Pixels: 0.198 * 0.198 |
|
19" Series |
377 * 300 4:3 Pixels: 0.293 * 0.293 |
|
18.5" HD Series |
408 * 230 16:9 Pixels: 0.213 * 0.213 |
|
18.5" SD series |
408 * 230 16:9 Pixels: 0.299 * 0.299 |
u 1 * LCD KVM Switch
u 1 * AC to DC Adapter (internal power supply without configuration)
u 2 * Rack Mounting
u 1 * Warranty Card
u 1 * Qualified Certificate
u 1 * AC Power Cord
How long is the warranty on your product?
Our product warranty is 3 years.
Can you accept customized products? OEM and ODM?
We accept customization, our mature R&D team can accept all kinds of customization
About customized products, can I customize them according to the use environment?
Our professional engineering team has provided solutions to many Different use requirements clients.
How can i get a sample?
You can contact us directly and we will arrange samples for you.
Can your products be used in the international rail transit industry?
Yes, we can. Our certificates are certified by formal institutions. Our products guarantee reliability, safety and environmental protection.
Can you provide product inspection report service and online video tracking inspection service?
We provide product test report, you can also directly through the phone video tracking product performance test, we will provide you with test project information. However, please note that long time test items need to make an appointment.
