Quick Details
-
Certificate:
-
ISO9001
-
Feature:
-
mineral equipment
-
Keywords:
-
Underground Mining scraper
Quick Details
-
Place of Origin:
-
Shandong, China
-
Warranty:
-
whole life
-
Application:
-
mining
-
Certificate:
-
ISO9001
-
Feature:
-
mineral equipment
-
Keywords:
-
Underground Mining scraper

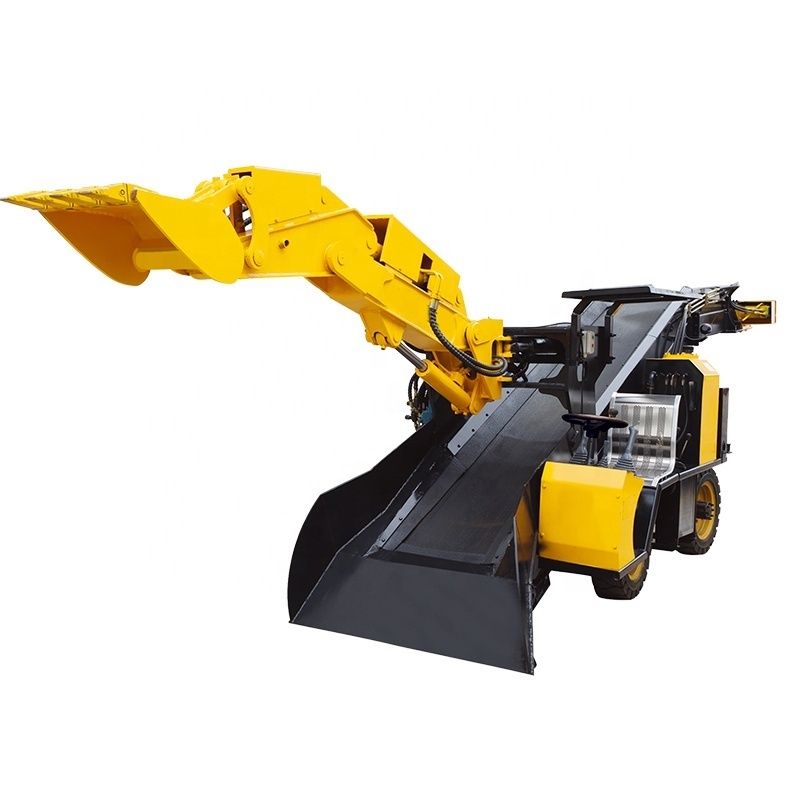

Wheel conveyor Type Underground Mining scraper Mucking Loader Machine equipment
STB-60TS tire conveyor belt type slag machine is a high efficiency continuous production mining equipment. It is mainly used for narrow hole mining operations, such as metal mines, non-metallic mines, water diversion tunnels, etc. It is suitable for roadways with a section above 1.8×1.8 meters.
This machine adopts electric full hydraulic transmission, including hydraulic walking,excavation collection,transportation and loading total four functions. It has compact structure, large propulsion force and wide extraction range. Itcan be installed in full section without leaving dead corners and without manual auxiliary cleaning. This machine adopts hydraulic pilot operation, which is easy and convenient to operate, reliable in performance and convenient in maintenance. The machine has excellent humanized design, the hydraulic system adopts air cooling, has seats, and has a driving shed, which greatly reduces the workers' labor intensity, light work, accurate positioning. fast transportation, the machine has safe, reliable, environmentally efficient and lots of manpower saving characteristics, fully ergonomic, its power can be divided into motor and diesel type.
| Type | STB-60TS | STB-80TS |
| Loading capacity(m3/h) | 60 | 80 |
| Min.turning radius(mm) | 4600 | 5000 |
| Gradient( ° ) | <10(hard ground) | <10(hard ground) |
| Traveling speed(m/min) | 2-4.5m/min | 2-4.5m/min |
| Ground clearance(mm) | 200 | 260 |
| Nominal working pressure(Mpa) | 20 | 20 |
| Motor Power(kw) | 18.5/22 | 22/30 |
| Max.materials by size(L*W*H)MM | 810*580*420 | 810*580*500 |
| Applicable section(W*H)M | 1.8*1.8m | 1.8*1.8m |
| Weight(T) | 5.8 | 7.2 |
| Overall dimension(L*W*H) | 5600*1650*1700 | 6000*1700*1800 |
Q: What is the delivery time ?
A: Normally the leadtime is 10 days after receipt of the deposit.
Q: What is the Payment terms ?
A: TT Or L/C.
Q: What is the warranty of the products ?
A: One year.
Q: Are you manufacturer or trading company ?
A: We are manufacturer,not dealer.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
Q: Can you customize the products as per request ?
A: Yes,we can customize your products.
Q: Where is the products are used?
A: The products are used for mining in the tunnel of coal mine or metal mine or non-metal mine.
Q: What is the drive mode of your products ?
A: The products drive mode is electric drive.
Q: Can the products be installed dual power –diesel engine and electric power ?
A: Yes,we can make the products with diesel engine and electric power
.
Q: What is the usage of the products ?
A: The products are multiple function integrating walking, digging,collecting,conveying,discharge.
