- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
S1
-
Size:
-
standard & customer size
-
Application:
-
Trailer Wall Hospital
-
Thickness:
-
1.2-3mm
-
Product name:
-
FRP insulated wall panels
-
Color:
-
White ,Grey or customized
-
Material:
-
fiberglass reinforced plastic
-
Advantage:
-
Light Weight
-
Certificate:
-
ISO9001:2008
-
width:
-
max width 2750mm
Quick Details
-
Project Solution Capability:
-
graphic design, total solution for projects
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HIGOAL, HIGOAL
-
Model Number:
-
S1
-
Size:
-
standard & customer size
-
Application:
-
Trailer Wall Hospital
-
Thickness:
-
1.2-3mm
-
Product name:
-
FRP insulated wall panels
-
Color:
-
White ,Grey or customized
-
Material:
-
fiberglass reinforced plastic
-
Advantage:
-
Light Weight
-
Certificate:
-
ISO9001:2008
-
width:
-
max width 2750mm

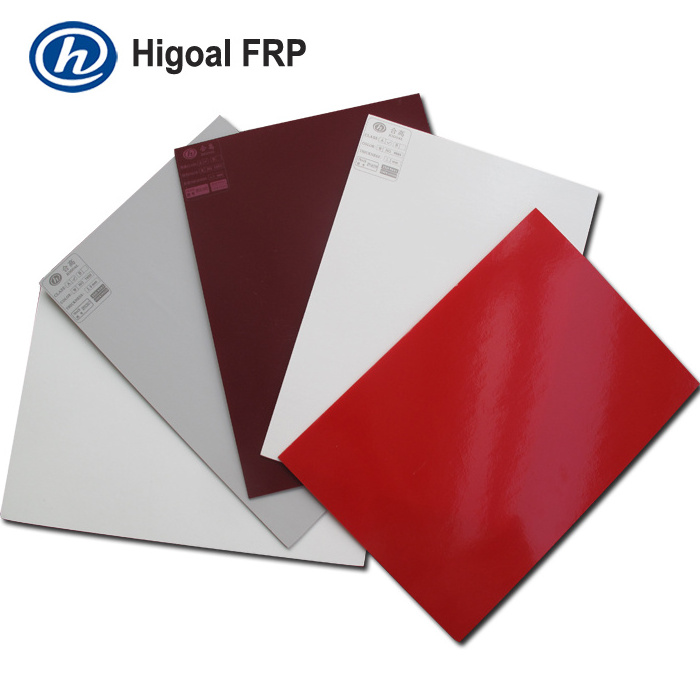

Pebbled Texture Panel
Thickness:1.2mm-3.0mm
Max width: 2750mm
Feature: anti-aging, good decorative surface, impact resistant.
Standard color: white, creamy, yellow etc.
Smooth Panel
Thickness:1.0-3.0mm
Feature: anti-aging, smooth glossy surface.
Standard color: White, Creamy, Black, etc.
FRP Leaf Texture Panel
With 300μm gel coating on surface, anti-skid
Thickness:1.2-3.0mm
Standard color: White, Grey, Blue etc.
The above mentioned panels can be combined with the froth, gypsum, polywood, aluminium, PP, XPS, honeycomb ,the lsandwich panels is a more strengthen, better rigidity panel, sandwich panels will be easier to install, the installation efficiency will be improved greatly, furthermore, the requirement of wall coarseness will be reduced also.
Higoal FRP Fiberglass Panel features:
1) Machine continuously made flat panels,
no limit on length
;
2)
Anti-impact
: much better stiffness and strength than plastic, due to fiberglass reinforced;
3)
Fire resistant
: made by thermosetting resin;
4)
Mildew resistant:
Effectively inhibit the growth of mildew;
5)
Easy install
: No other tools are needed except for rivet or glue only;
6)
Anti-corrosive
: stay good condition immerged into 10% Hydrochloric acid or 3% NAOH solvent for long time;
7)
Easy cleaning
: It can be easy cleaned by steam or high-pressured squirt gun;
8) Extreme
temperature resistant
: Withstand temperature at -40 -110 degree C for long time;
9) Rolled up by machine with 50-100m length as a coil, to
save shipping cost
.
|
Items
|
Performance
|
|
|
||
|
Material
|
Gel coating: 300um ISO-phthalic polyester gel coat
Matrix resin: unsaturated polyester resin Reinforce fiber: E-glass |
|
|
||
|
FRP panel size
|
Thickness: 1.0mm-3.0mm
Width: ≤2750mm ; Length: customer length |
|
|
||
|
Tensile strength
|
≥75MPa
|
|
|
||
|
Tensile modulus
|
≥4800MPa
|
|
|
||
|
Bending strength
|
≥120MPa
|
|
|
||
|
Bending modulus
|
≥5GPa
|
|
|
||
|
Impact strength
|
≥35KJ/m2
|
|
|
||
|
Compression strength
|
≥35MPa
|
|
|
||
|
Distortion temperature(1.8MPa)
|
>230℃
|
|
|
||
|
Thermal expansivity
|
2.4×10-5℃-1
|
|
|
||
|
Gravity
|
1.6-1.7g/cm3
|
|
|
||
|
Water Absorption
|
0.16%/24hrs, 25C
|
|
|
||
|
Stickiness
|
≥42dyne
|
|
|
||
|
Approval test standards:
|
ASTM-E84, RoHS 2002/95/EC
|
|
|
||
|
Chemical resistance
|
Can be used in foggy environment of 10% HCl and 3% NaOH solvent for long. For usage in other solvent, please contact our engineer.
|
|
|
||
|
FRP insulated wall panels
|
|
|
|
|||
|
Packing
|
1. Protected by stretch film;
|
|
|
|||
|
|
2. Fasten by packing banding and packed on pallet;
|
|
|
|||
|
Delivery
|
1. Stock panel: 3-5 working days.
|
|
|
|||
|
|
2. Manufacturing: 1-2 weeks, or depends on the order quantity.
|
|
|
|||
