Quick Details
-
Brand Name:
-
Gui Bei
-
Weight (KG):
-
3900
-
Power (kW):
-
15
-
Name:
-

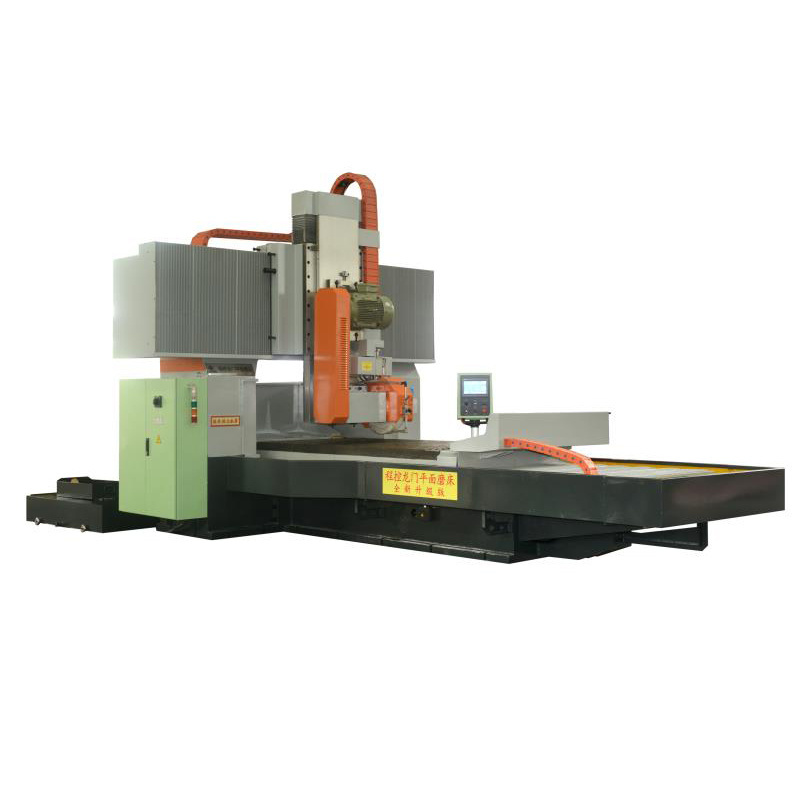

Grinder Machine
-
Usage:
-
Surface Polishing
-
Application:
-
Stainless Steel
-
Keywords:
-
Standard Surface Grinder
-
Model:
-
AHD
-
Machine Type:
-
Suface Grinding Machine
-
Function:
-
Grinding Material
-
Grinding wheel motor power:
-
15
-
Surface roughness:
-
Ra0.63
-
Wheel size (O.D*W*I.D):
-
500*75*203
Quick Details
-
Wheel Size(mm):
-
500*75*203
-
Year:
-
2023
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Gui Bei
-
Weight (KG):
-
3900
-
Power (kW):
-
15
-
Name:
-
Grinder Machine
-
Usage:
-
Surface Polishing
-
Application:
-
Stainless Steel
-
Keywords:
-
Standard Surface Grinder
-
Model:
-
AHD
-
Machine Type:
-
Suface Grinding Machine
-
Function:
-
Grinding Material
-
Grinding wheel motor power:
-
15
-
Surface roughness:
-
Ra0.63
-
Wheel size (O.D*W*I.D):
-
500*75*203
|
Main Specifications |
unit |
GM-K**16 GM-C**16 |
GM-K**20 GM-C**20 |
GM-K**25 GM-C**25 |
|
Width |
mm |
1600 |
2000 |
2500 |
|
Length |
mm |
2000~10000(refer to technology agreement) |
||
|
Height |
mm |
800,1000(refer to technology agreement) |
||
|
Distance between gantry columns |
mm |
2200 |
2500 |
3000 |
|
Table longitudinal travel (Hydraulic) |
mm |
given by table length |
||
|
Speed of table(stepless) |
m/min |
5~25(5~27) |
||
|
Distance from wheel center to table |
mm |
200~1050,200~1350(refer to technology agreement) |
||
|
Max.travel wheel-head(vertical) |
mm |
680,850,1100(refer to technology agreement) |
||
|
Wheel size (O.D×W×I.D) |
mm |
Φ500×75×Φ203 |
||
|
Handwheel Min.scale value of vertical feed |
mm |
0.005 |
||
|
Grinding wheel motor power |
KW |
15(refer to technology agreement) |
||
|
Working surface to base parallelism |
mm |
0.015/1000 |
||
|
Surface roughness |
μm |
Ra0.63 |
||
|
Max.allowable weight overall dimensions of machine,weight,total electrical
|
||||
