Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Leyon
-
Model Number:
-
Grooved Pipe Fittings
-
Product name:
-
grooved fittings
-
Models:
-
Banded with or without ribs, Beaded
-
Treaded:
-
BSPT, NPT, Grooved
-
Standard:
-
ANSI, BS, DIN
-
Certificate:
-
BSI, ANAB, ISO9001B
-
Application:
-
Steam, air, gas and oil pipes
-
Surface treatment:
-
Hot dipped galvanized and Epoxy Painting
-
Specification:
-
Elbow, socket, Tee, Union, Bushing, Plug
-
other product name:
-

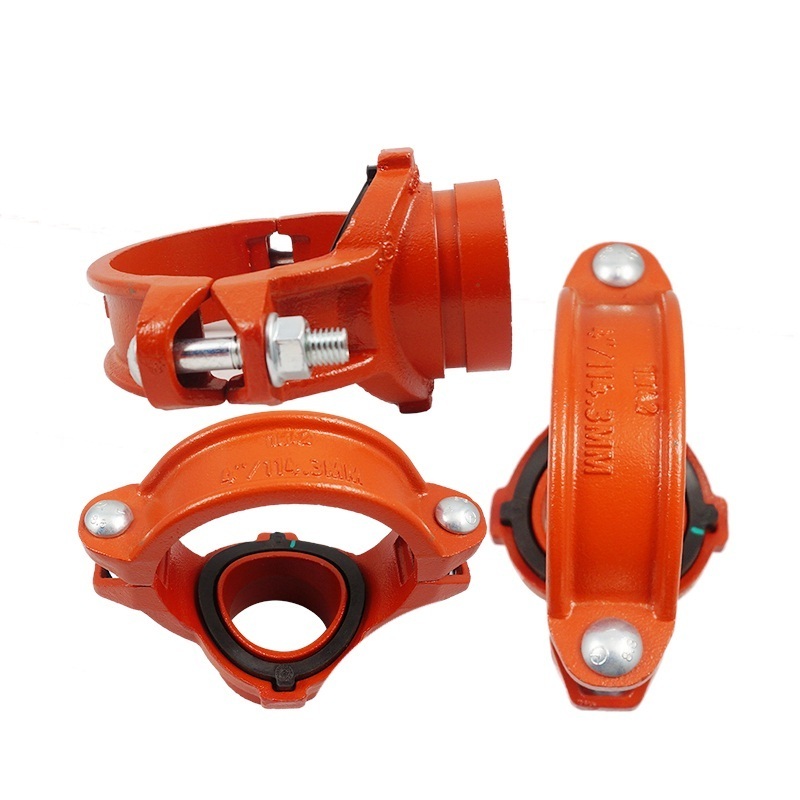

Grooved Tee fittings
-
Certification:
-
UL FM
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Equal
-
Head Code:
-
Square
-
Place of Origin:
-
China
-
Brand Name:
-
Leyon
-
Model Number:
-
Grooved Pipe Fittings
-
Product name:
-
grooved fittings
-
Models:
-
Banded with or without ribs, Beaded
-
Treaded:
-
BSPT, NPT, Grooved
-
Standard:
-
ANSI, BS, DIN
-
Certificate:
-
BSI, ANAB, ISO9001B
-
Application:
-
Steam, air, gas and oil pipes
-
Surface treatment:
-
Hot dipped galvanized and Epoxy Painting
-
Specification:
-
Elbow, socket, Tee, Union, Bushing, Plug
-
other product name:
-
Grooved Tee fittings
-
Certification:
-
UL FM
Manufacture introduce
You may also like our other products such as stainless steel, brass copper ,ductile iron and carbonsteel pipe and fittings
Please click the below picture for your choice
AWWA size fittings are supplied with rigid radius grooves in accordance with ANSI/AWWA C-606
Fittings conform to ANSI 21.10/AWWA C-110 for center-to-end dimensions and AWWA C-153 or ANSI 21.10/AWWA C-110 for wall
thicknesses
Available with a wide variety of coatings and linings
Unwelded fittings can supply tapped fittings that meet ANSI B16.1 dimension locations
Sizes from 3 – 36″ | DN80 – DN900
Pressure rated up to 350 psi | 2413 kPa | 24 bar
Fittings conform to ANSI 21.10/AWWA C-110 for center-to-end dimensions and AWWA C-153 or ANSI 21.10/AWWA C-110 for wall
thicknesses
Available with a wide variety of coatings and linings
Unwelded fittings can supply tapped fittings that meet ANSI B16.1 dimension locations
Sizes from 3 – 36″ | DN80 – DN900
Pressure rated up to 350 psi | 2413 kPa | 24 bar
|
Material
|
Ductile iron Malleable iron
|
|
Standard
|
Grooved Ends
|
|
|
ANSI/AWWA C606; NAPF 400
|
|
Physical Property
|
Tensile strength>=350Mpa,Elongation>=10%,Hardness<=150HB
|
|
Working Pressure
|
ANSI/AWWA C151/A21.51; NAPF 100. Suitable class thickness pipe is rated at the pipe foundry according to the tables contained
therein |
|
Model
|
Elbow,Tees,Crosses,Bends,Unions,Bushing,Lateral Braches,Sockets,Nipples,Hexagon/Round,Caps,Plugs,Locknuts,Flanges,Side outlet
Tees,Side Outlet Elbows and etc |
|
Connection
|
Grooved Ends with threaded Ends
|
|
Shape
|
Equal,Reducing
|
|
Certificate
|
ISO9001,ANSI/AWWA C606;
|
|
Size
|
Fittings available from 3/4 – 24″ | DN20 – DN600
|
|
Application
|
Suitable for air, water, sewage, oil, and other liquids where owners, specifiers, and contractors express a preference in lieu of flanged
fabrication. |
|
|
Buyer's drawing or designs are available
|
|
Package
|
Cartons without pallet
|
|
|
Cartons with pallet
|
|
|
Double woven bags
|
|
|
Or as buyer's requirements
|
|
Delivery Details
|
According to the quantities and specifications of each order
|
|
|
Normal delivery times is from 30 to 45 days after receiving the deposit
|
