Quick Details
-
Clean level:
-
Grade 100(209 E U.S. Federal)
-
Number of bacteria:
-
≤0.5per utensil.hour(90mm utensil)
-
Inside the door wind speed:
-
0.38±0.025 m/s
-
Middle wind speed:
-
0.26±0.025 m/s
-
Inside wind speed:
-
0.27±0.025 m/s
-
Front suction wind speed:
-
0.55m±0.025m/s (70% air exhaust)
-
Noise:
-
≤62dB(A)
-
Working area dimension(W*D*H):
-
1000*650*620mm
-
HEPA filter specifications and quantity:
-
955*554*50mm*1pc
-
lamp specifications and quantity:
-
20W*1PC/20W*1PC
Quick Details
-
Weight (KG):
-
140
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
DRAWELL
-
Clean level:
-
Grade 100(209 E U.S. Federal)
-
Number of bacteria:
-
≤0.5per utensil.hour(90mm utensil)
-
Inside the door wind speed:
-
0.38±0.025 m/s
-
Middle wind speed:
-
0.26±0.025 m/s
-
Inside wind speed:
-
0.27±0.025 m/s
-
Front suction wind speed:
-
0.55m±0.025m/s (70% air exhaust)
-
Noise:
-
≤62dB(A)
-
Working area dimension(W*D*H):
-
1000*650*620mm
-
HEPA filter specifications and quantity:
-
955*554*50mm*1pc
-
lamp specifications and quantity:
-
20W*1PC/20W*1PC
Application Field

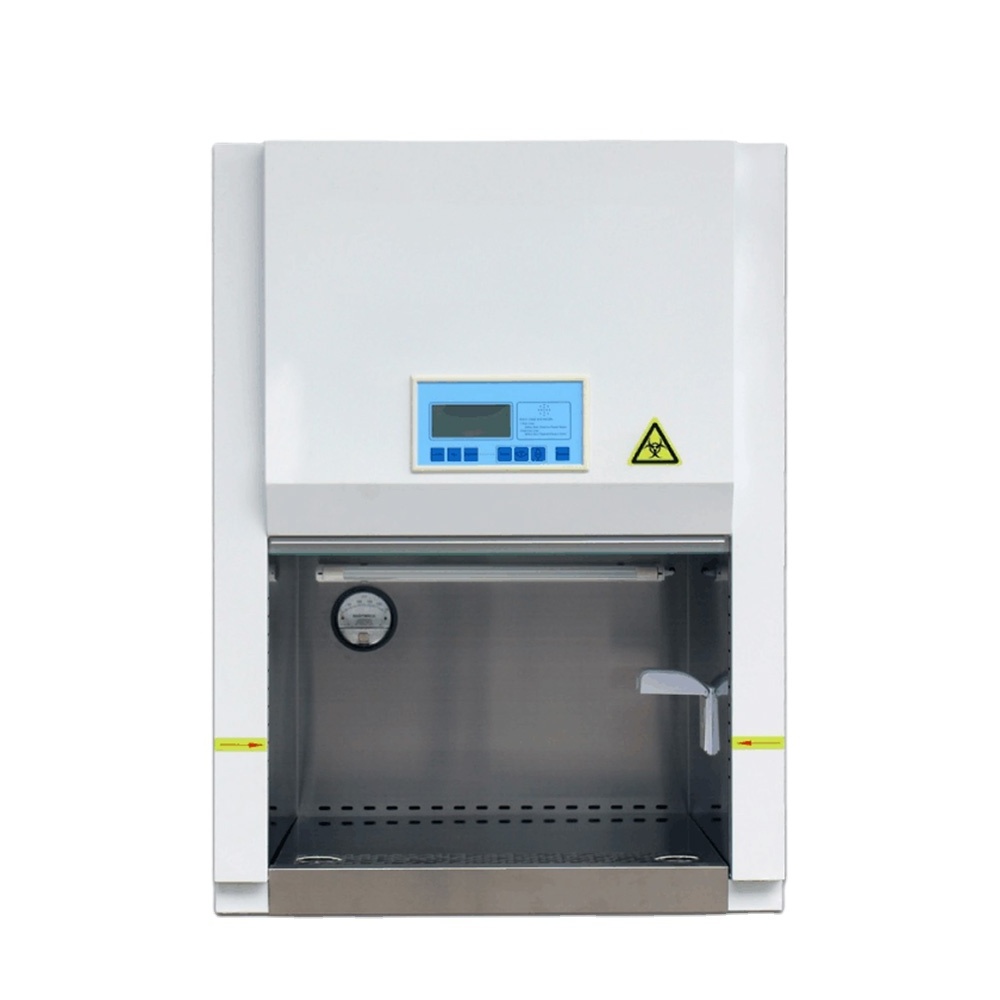

Product Description
Features
1. Air curtain isolation design to prevent internal and external cross contamination, 30% of the airflow is discharged to 70% of the internal circulation, negative pressure vertical laminar flow, no need to install pipes
2. The glass door can be moved up and down, which can be positioned arbitrarily, easy to operate, and can be completely closed for sterilization, and the positioning height limit alarm prompts.
3. The power output socket in the work area is equipped with a waterproof socket and a sewage interface to provide great convenience for the operator
4. There is a special filter at the exhaust to control emission pollution.
5. The working environment is made of high-quality 304 stainless steel, which is smooth, seamless, and has no dead ends, which can be easily and thoroughly disinfected, and can prevent the erosion of corrosive agents and disinfectants.
6. Controlled by LED LCD panel, built-in UV light protection device, can only be opened when the safety door is closed
7. With DOP detection port, built-in differential pressure gauge.
8. The operation surface of the equipment is face-to-face, compact and easy to operate.
Technical Parameters
|
Model
spec. |
BSC-700IIA2-EP
|
|
Cleanliness |
100级@≥0.5μM（209E）
Class 100@≥0.5μM (US Federal 209E) |
|
Number of colonies |
≤0.5个/皿·时（Φ90mm）
≤0.5/dish hour (Φ90mm culture dish) |
|
Wind speed
|
≥0.55±0.025m/s
Average suction wind speed: ≥0.55±0.025m/s ≥0.3±0.025m/s Average descending wind speed: ≥0.3±0.025m/s |
|
Filtration Level / Filtration Efficiency |
H14，≥99.995%, @0.3μm
HEPA of borosilicate glass fiber material: ≥99.995%, @0.3μm |
|
noise
|
≤65dB(A)
|
|
Power
|
AC220V/50Hz
|
|
work area size
W1×D1×H1 |
600×500×520
|
|
external size
W×D×H |
760×650×1230
|
|
HEPA filter size &qty
|
560×440×50×①
380×380×50×① |
|
LED/UV lamp specifications & qty |
8W×①/20W×①
|
|
Model
|
|
BSC-1000IIA2
|
BSC-1300IIA2
|
BSC-1600IIA2
|
|||
|
Clean level
|
|
Grade 100(209 E U.S. Federal)
|
|
|
|||
|
Number of bacteria
|
|
≤0.5per utensil.hour(90mm utensil)
|
|
|
|||
|
Average wind speed
|
Inside the door
|
0.38±0.025m/s
|
|
|
|||
|
|
Middle
|
0.26±0.025m/s
|
|
|
|||
|
|
Inside the cabinet
|
0.27±0.025m/s
|
|
|
|||
|
Inflow velocity
|
|
0.55m±0.025m/s (30% discharged)
|
|
|
|||
|
Noise
|
|
≤65dB(A)
|
|
|
|||
|
illumination
|
|
≥650LX
|
|
|
|||
|
Work area size (W*D*H)
|
|
1040*650*620mm
|
1340*650*620mm
|
1640*650*620mm
|
|||
|
Overall dimension (W*D*H)
|
|
1200*800*2100mm
|
1500*800*2100mm
|
1800*800*2100mm
|
|||
|
HEPA filter size
|
|
980*490*50×①
520*380*70×① |
1280*490*50×①
820*380*70×① |
1580*490*50×①
1120*380*70×① |
|||
|
Fluorescent/UV lamp specifications and quantity
|
|
12W×②/20W×①
|
20W×②/30W×①
|
20W×②/30W×①
|
|||
|
Item
|
Model
|
working size
(mm) |
overall dimension
(mm) |
|
class II A2
|
BSC-1000IIA2
|
1000*650*620
|
1195*720*1950
|
|
|
BSC-1300IIA2
|
1300*650*620
|
1495*720*1950
|
|
|
BSC-1600IIA2
|
1600*650*620
|
1795*720*1950
|
|
class II B2
|
BSC-1000IIB2
|
1000*650*620
|
1195*720*1950
|
|
|
BSC-1300IIB2
|
1300*650*620
|
1495*720*1950
|
|
|
BSC-1600IIB2
|
1600*650*620
|
1795*720*1950
|
|
all steel
class II A2 |
BSC-1000IIA2
|
1040*650*620
|
1200*800*2100
|
|
|
BSC-1300IIA2
|
1340*650*620
|
1500*800*2100
|
|
|
BSC-1600IIA2
|
1640*650*620
|
1800*800*2100
|
|
all steel
class II B2 |
BSC-1000IIB2
|
1040*650*620
|
1200*800*2270
|
|
|
BSC-1300IIB2
|
1340*650*620
|
1500*800*2270
|
|
|
BSC-1600IIB2
|
1640*650*620
|
1800*800*2270
|
