Quick Details
-
Model Number:
-
SINOY-CSP-SM
-
Solar Power (W):
-
25kw-200MW
-
Specification:
-
1.1MM 3.2MM 4.0MM
-
Application:
-
Industrial
-
Output Voltage (V):
-
110V-380v
-
back side paint color:
-
white
-
Work Time (h):
-
24 Hours
-
Visible Light reflectively:
-
> 92.8%
-
UV-resistant:
-
Yes
-
Material Glass:
-
Low iron ultra clear glass for solar mirror
-
Packing:
-
wooden box with paper interleaved
-
Certification:
-
ISO9001
Quick Details
-
Warranty:
-
20 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SINOY MIRROR
-
Model Number:
-
SINOY-CSP-SM
-
Solar Power (W):
-
25kw-200MW
-
Specification:
-
1.1MM 3.2MM 4.0MM
-
Application:
-
Industrial
-
Output Voltage (V):
-
110V-380v
-
back side paint color:
-
white
-
Work Time (h):
-
24 Hours
-
Visible Light reflectively:
-
> 92.8%
-
UV-resistant:
-
Yes
-
Material Glass:
-
Low iron ultra clear glass for solar mirror
-
Packing:
-
wooden box with paper interleaved
-
Certification:
-
ISO9001
Product Description

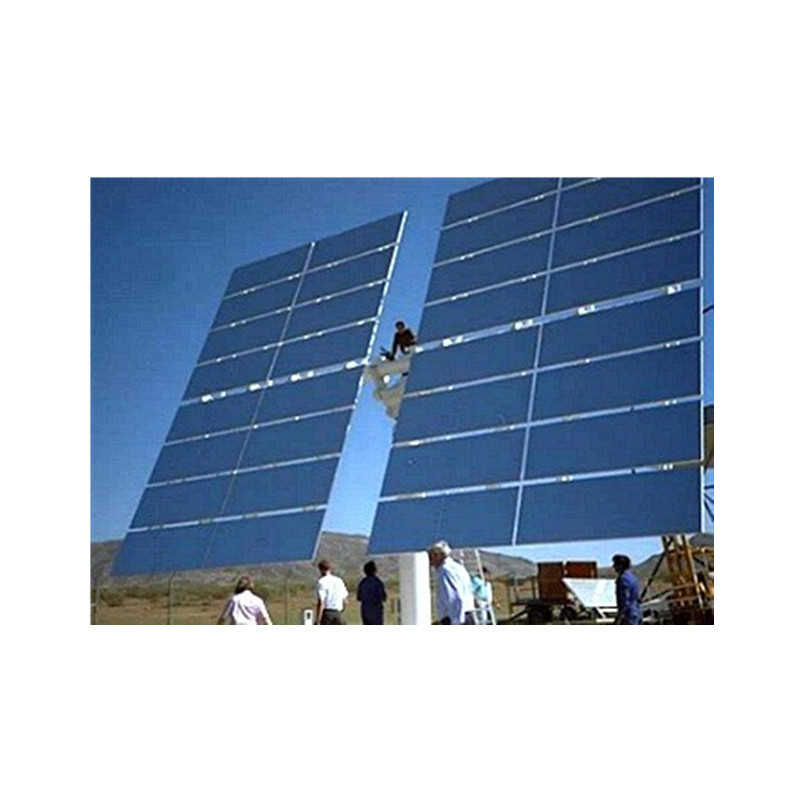

Solar mirror is a reflective surface used for gathering an reflecting solar energy in a system being powered by solar energy it comprices a glass substrate,a reflective layer for reflecting the solar energy,and an interference layer. The purprose of the solar mirror is to achieve a substantially concentrated reflection factor for solar energy systems.
Features:
1)Made of quality low iron extra clear glass
2)thickness:1.1mm, 3mm, 3.2mm or 4mm.
3)Silver coated with copper, 3 layers of protective back paints
4)Water-resistance ,Scratch-resistance
5) Anti-UV
6) Can bear complex climate environment
7) Outdoor shelf time up to 25 years
Thickness:1.1mm / 3.0mm /3.2mm/4.0mm
Brief Information
|
Delivery Time |
3-4 weeks after receipt of deposit |
|
Form of Payment |
L/C or deposit by T/T, the balance before shipment etc |
|
Shipment |
From Qingdao, China |
|
Inspection standard |
Surface no scratches, no handprint, no depletion mark, no stain, no mildew, avalanche edge, lack of Angle etc. Glass mirror, mirror clean, and there can be no stain, besmirch. Reflectivity visible light > 93% |
|
Packaging Request |
1) standard wooden crates; 2) end-caps packing; 1) or 2) into container truck transportation. We, Sinoy , INC. Expert in wooden crates packing reinforce measures. Pls rest assure that it can prevent possible breakage on the road of long distance of transportation. |
|
Attention for process of package |
Use scratch proof material between mirror sheets and strictly prohibit sliding one mirror sheet on the other mirror sheet surface. |
|
Transportation and storage |
Put in dry and airy place, not to be laid flat or sideling, prevent touching acid-base etc corrosion materials. |
|
Material Standard |
SMFG2004-03 standard, top quality mirror grade glass |
|
Certificate |
CE, ISO9001:2008,SGS etc |
|
Spraying the Code |
As specific request |
|
Mark |
As specific request |
|
Other Accessory
|
Dryer etc, fixing pad available |
|
After-Sale Service |
1) common samples are free. |
|
2)special processing samples’ design fee will be decucted when the order is placed. |
|
|
3)Quality discrepancy expiry date: within 30days after receiving the cargo. |
Mirror Size and Shape
* Flat mirror extra clear and extra thin.
* Dimensions: 3210 ( ± 1) x 1350 ( ± 1) x 3 ( ± 0.1) mm.
* Width, length and diagonal tolerance to be 1 mm.
* White glass with silver plating.
* Coatings to be defined by supplier.
* Outer coating in white colour.
* Coatings shall protect mirror silver plating in mirror edges.
* Coating to be compatible with neutral silicone.
* Mirrors to be UV resistant.
*Diagonal length tolerance (rectangularity):
(32102 +13502 )= 3482.33 ( ± 1 ) mm
* Thickness tolerance: 0.1 mm. Maximum difference in 100 mm <= 0.08 mm
* Thickness : 3 ( ± 0.1) mm
* Energy reflectivity > 91%. Energy reflectivity shall be measured according to Parry
Moon Air Mass 2 curve.
* Coating adherence by cut and grating according to UNE-EN 2409: Classification 0.
* Traceability shall be clearly marked in outer mirror coating using permanent paint.
* Mirror to be supported and fixed by metallic elements and silicone (by Abener).
* Fixing element shall be made of stainless steal metal.
* Metallic fixing elements to be stuck by using neutral silicone as “Silkraf Mirror”
silicone or similar.
* Mirrors to be cleaned on a monthly basis by using osmotized water and with
rubbing.
* Mirror shall be cold bended. Maximum radius of curvature to be no less than
150m.
* Supplier shall guarantee his mirrors for 5 years working in the solar plant.
* Mirror shall be designed for 20 year operation under location environmental
Conditions.
Outdoor Environmental Conditions
* Aprox. elevation (of the Plant) above sea level: 70 m
* Atmospheric environment: Powdery
* Average annual temperature: 20 ºC
* Average absolute maximum temperature: 34.9 ºC
* Average absolute minimum temperature: 3.7 ºC
* Maximum design temperature: 50 ºC
* Minimum design temperature: -10º C
* Relative air humidity: 45 %
* Average design wet bulb temperature: 19.43 ºC
* Maximum wind speed: 140 km/h
* Seismic acceleration: <0.08g
* Risk of hailstorm and frost at site.
*High UV radiaton at site.
* Risk of bird droppins at both sides of mirror.
* Herbicide shall be used at site.
