Quick Details
-
Brand Name:
-
Sinotech
-
Model Number:
-
FMC-80
-
Product Name:
-
PD Flow Meter FMC-80
-
Size:
-
80mm/3''
-
Flow range:
-
75-750L/Min
-
Max.working Pressure:
-
150PSI
-
Accuracy:
-
0.2%
-
Repeatability:
-
0.07%
-
Product Packaging Size:
-
70*40*58cm
-
Gross Weight (kg):
-
70kg
-
Net Weight:
-
56kg
-
Standard Packaging:
-
1pcs/Wooden Case
Quick Details
-
Type:
-
Variable Area Petrolum Flowmeters
-
Warranty:
-
12 months
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sinotech
-
Model Number:
-
FMC-80
-
Product Name:
-
PD Flow Meter FMC-80
-
Size:
-
80mm/3''
-
Flow range:
-
75-750L/Min
-
Max.working Pressure:
-
150PSI
-
Accuracy:
-
0.2%
-
Repeatability:
-
0.07%
-
Product Packaging Size:
-
70*40*58cm
-
Gross Weight (kg):
-
70kg
-
Net Weight:
-
56kg
-
Standard Packaging:
-
1pcs/Wooden Case

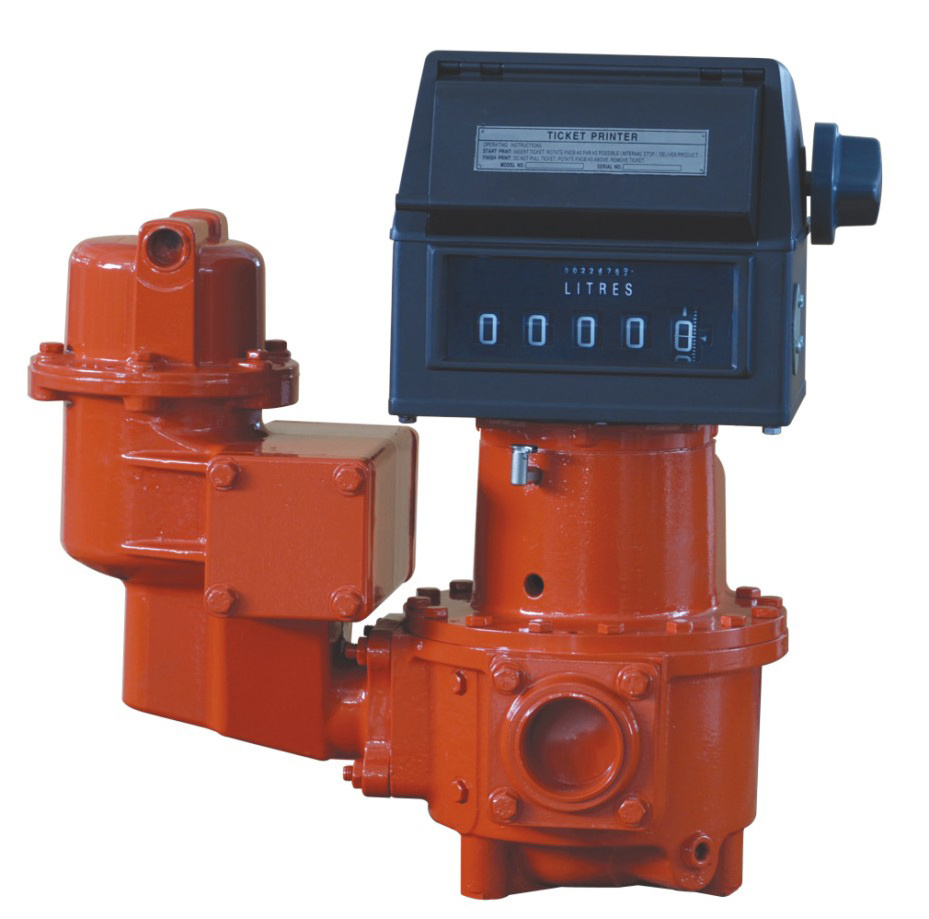

Positive Displacement Flow Meter Fuel Station Uses High-precision FMC-80 Mechanical Flow Meter
Product Description
Component:
meter with mechnical register, air eliminater and stainer
Advantage:
*FMC series PD rotary vane meters are single case, angle-type, rotary vane, positive displacement meters.
*Superior accuracy and a wide range of products from gasoline to kerosene to fuel oils can be metered.
*Compact, versatile design can be readily fit into nearly all installations.
*Low pressure drop meter results in low meter slippage and thus superior meter accuracy.
*Long service life, low friction ball bearings, fixed cam-type timing, and rugged construction give sustained accuracy and long
time operation.
*FMC series PD rotary vane meters are single case, angle-type, rotary vane, positive displacement meters.
*Superior accuracy and a wide range of products from gasoline to kerosene to fuel oils can be metered.
*Compact, versatile design can be readily fit into nearly all installations.
*Low pressure drop meter results in low meter slippage and thus superior meter accuracy.
*Long service life, low friction ball bearings, fixed cam-type timing, and rugged construction give sustained accuracy and long
time operation.
Construction
Inlet/outlet Position Arrangements
Application:
blending, batching, dispensing, inventory control, and custody transfer of oils, solvents, chemicals, paints, fats and fertilizers.
Specification
|
Technical Specification
|
value
|
|
|
|||
|
Model
|
FMC-50
|
FMC-80
|
FMC-100
|
|||
|
Size
|
50mm/2''
|
80mm/3''
|
100mm/4''
|
|||
|
Flow Rate Range(L/min)
|
38-380
|
75-750
|
150-1500
|
|||
|
Max.working Pressure
|
150PSI
|
|
|
|||
|
Accuracy
|
±0.2%
|
|
|
|||
|
Repeatability
|
≤0.07%
|
|
|
|||
Packing & Delivery
|
Packing Data
|
|
|
|
Dimension
|
70*40*58cm
|
|
|
Net Weight
|
56kg
|
|
|
Gross Weight
|
70kg
|
|
|
Package
|
1pc/Wooden Case
|
|
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
