Quick Details
-
Model Number:
-
Expanded
-
Thickness:
-
1mm ~10mm
-
Size:
-
1500mm*1500mm
-
Color:
-
White
-
Application:
-
Sealing,Buiding,Electrict
-
Density:
-
1.0g/cm3
-
Surface:
-
Flat,smooth
-
Certificate:
-
ISO9001/ROHS
Quick Details
-
Processing Service:
-
Cutting, Moulding
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Chunhuan
-
Model Number:
-
Expanded
-
Thickness:
-
1mm ~10mm
-
Size:
-
1500mm*1500mm
-
Color:
-
White
-
Application:
-
Sealing,Buiding,Electrict
-
Density:
-
1.0g/cm3
-
Surface:
-
Flat,smooth
-
Certificate:
-
ISO9001/ROHS

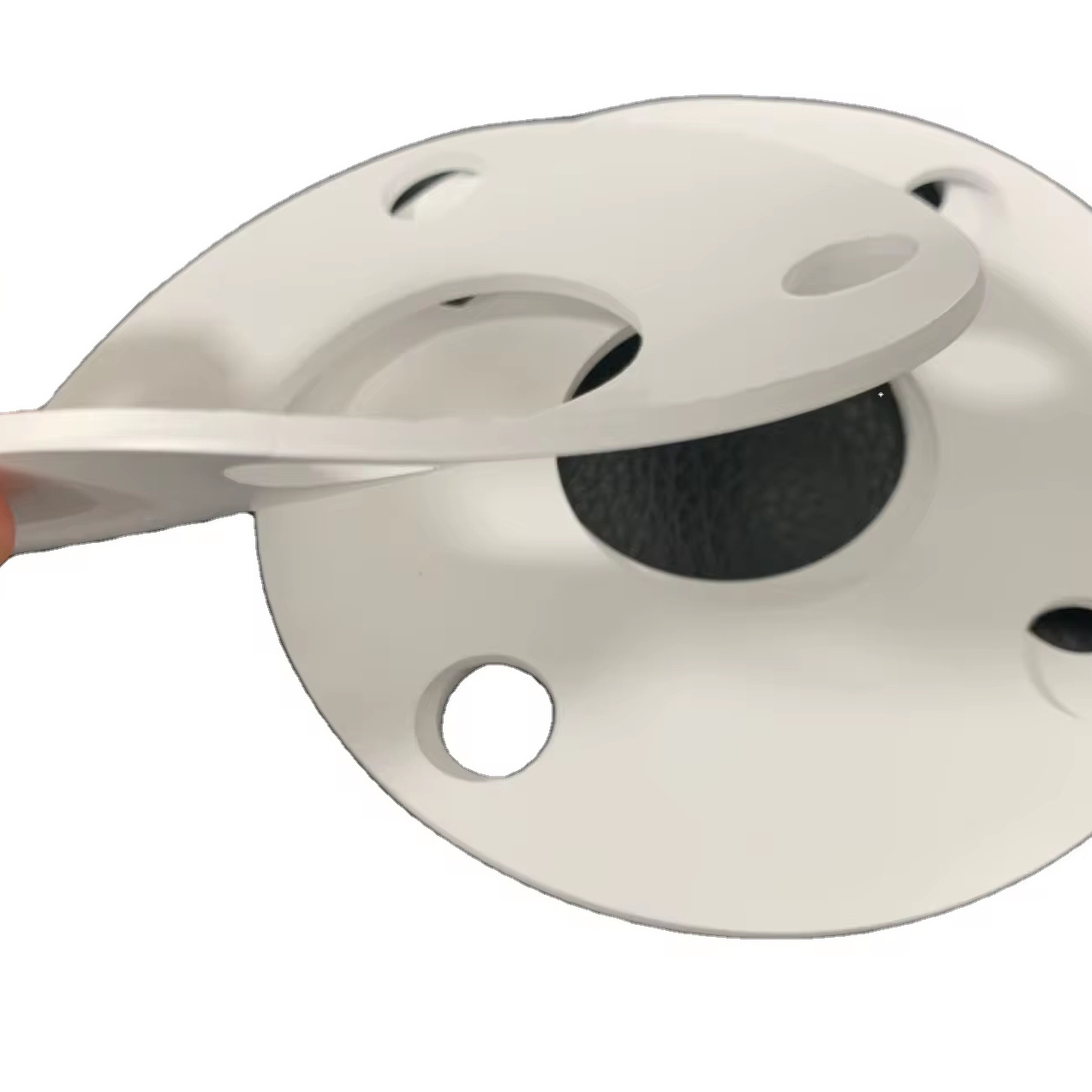

Expanded PTFE Gasket is made of 100% PTFE of puffed PTFE material cut or punched. Expanded PTFE material (eptfe) expands PTFE into a unique material with strong, tough and porous properties and is highly fibrotic.
It not only maintains the unique properties of PTFE itself - excellent chemical stability (not affected by general chemicals); extremely low coefficient of friction; wider operating temperature; non-aging and permanent durability.
Application
Chemical, petrochemical, oil refining, chlor-alkali, acid making,
phosphate fertilizer, pharmaceutical, pesticide, chemical fiber, dyeing, coking, gas, organic synthesis, non-ferrous smelting,
iron and steel, atomic energy and high-purity products production (such as ion membrane electrolysis),
viscous material transportation and operation, highly strict hygiene requirements of food, beverage and other processing and production departments.
REGULAR SIZE LIST
|
DN |
Size(mm) |
DN |
Size(mm) |
|
DN 15 |
50*15*3 |
DN 80 |
135*80*3 |
|
DN 20 |
55*20*3 |
DN 100 |
155*100*3 |
|
DN 25 |
65*25*3 |
DN 125 |
185*125*3 |
|
DN 32 |
78*32*3 |
DN 150 |
210*150*3 |
|
DN 40 |
85*40*3 |
DN 200 |
265*200*3 |
|
DN 50 |
100*50*3 |
DN 250 |
320*253*3 |
|
DN 65 |
120*65*3 |
DN 300 |
360*300*3 |
MAIN PROPERTIES
|
Inspection Item |
Unit |
Standard |
|
Work Temperature |
℃ |
-240 ~270,Melt 315 |
|
Tensile strength |
Mpa |
≥10 F-152 |
|
Compressive Strength |
Mpa |
≤ 140 |
|
Compression(35mpa load) |
% |
65 F-36 |
|
Recovery(35mpa load) |
% |
11.61 F-36 |
|
Creep(100 degC ×22hr) |
% |
68.32 F-38 |
|
Nitrogen-seal(mi/hr-17.25mpa) |
Mpa |
0.16Internal Pressure 4 |
|
Nitrogen-seal(ml/hr-35mpa) |
Mpa |
0.0037 Internal Pressure 4 |
|
Density |
g/cm 3 |
0.9 to 1.0 |
