Quick Details
-
Effective Volume:
-
2.75*9CBM
-
Dimension(L*W*H):
-
according to the size customized
-
Voltage:
-
380V3phase 50HZ or customized
-
Power:
-
1.5kw
-
Product name:
-
smokeless wood briquette carbonizer furnace
-
Raw material:
-
wood, log, branch, briquette, coconut shell, bamboo etc
-
Carbonization time:
-
8 Hours
-
Cooling Time:
-
6-8hours
-
Capacity:
-
4.5-6t/day
-
Fuel:
-
firewood, gas, coal etc
-
Operation:
-
Including Hoist System
-
Advantage:
-
Energy saving, Continuous Working Environment Friendly
-
Installation:
-
Engineer Guide
-
Factory name:
-
Gongyi Xiaoyi Mingyang Machinery Plant
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Weight:
-
10500kg
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
Henan, China
-
Core Components:
-
stove
-
Brand Name:
-
Mingyang
-
Effective Volume:
-
2.75*9CBM
-
Dimension(L*W*H):
-
according to the size customized
-
Voltage:
-
380V3phase 50HZ or customized
-
Power:
-
1.5kw
-
Product name:
-
smokeless wood briquette carbonizer furnace
-
Raw material:
-
wood, log, branch, briquette, coconut shell, bamboo etc
-
Carbonization time:
-
8 Hours
-
Cooling Time:
-
6-8hours
-
Capacity:
-
4.5-6t/day
-
Fuel:
-
firewood, gas, coal etc
-
Operation:
-
Including Hoist System
-
Advantage:
-
Energy saving, Continuous Working Environment Friendly
-
Installation:
-
Engineer Guide
-
Factory name:
-
Gongyi Xiaoyi Mingyang Machinery Plant
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Weight:
-
10500kg
-
Certification:
-
CE ISO

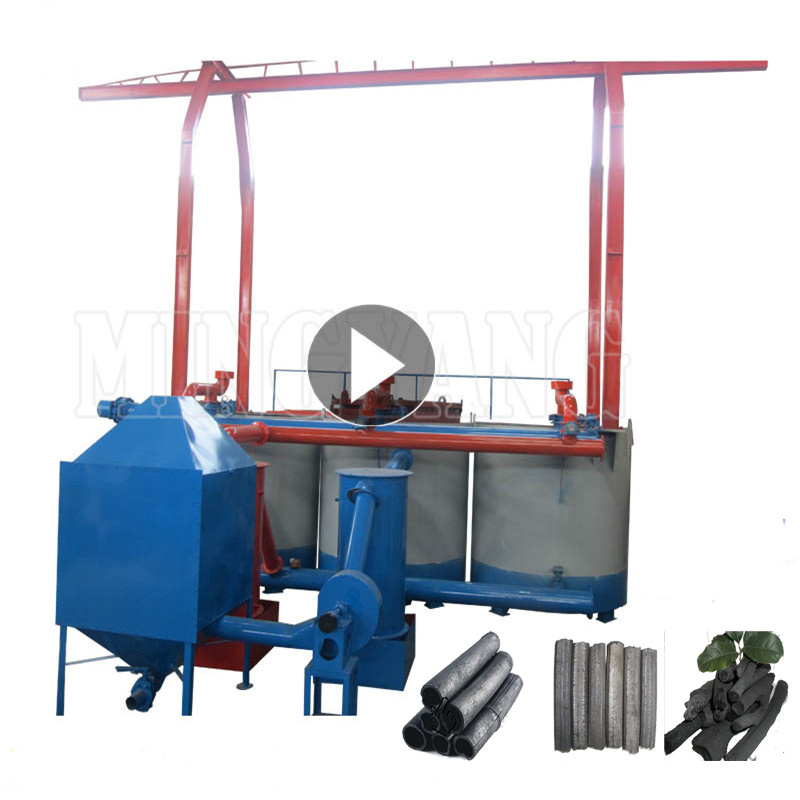

smokeless wood briquette carbonizer furnace/biochar charcoal making machine/nuts shell carbonziation stove
1. smokeless wood briquette carbonizer furnace main data:
| model |
capacity t/24h |
inner volume |
temperature degree |
machine include |
| QHL-1 | 1.5-2 | 2.75*3CBM | 400-600 | 1outer stove, 3inner stoves with 3 caps, 1 3ton lifting device, 1smoking tank |
| QHL-2 | 3-4 | 2.75*6CBM | 400-600 | 2 outer stove, 6 inner stoves with 6 caps, one 5-ton hoisting equipment with e-motor, 1smoking tank |
| QHL-3 | 4.5-6 | 2.75*9CBM | 400-600 | 3 outer stove, 9 inner stoves with 9caps, one 5-ton hoisting equipment with e-motor, 1smoking tank |
| QHL-4 | 6-8 | 2.75*12CBM | 400-600 | 4 outer stove, 12 inner stoves with 12caps, one 5-ton hoisting equipment with e-motor, 4smoking tank |
2. What raw material can be used for the smokeless wood briquette carbonizer furnace:
Wood, log, branch, sawdust briquette, bamboo, coconut shell, nuts shell, palm nut shell, walnut shell, macadamic nutshell, and other hard raw material etc.
3. Working principle of the smokeless wood briquette carbonizer furnace:
A: Prepare the raw material and pack them in the inner stove;
B: Use the hoist to hang the inner stove to the outer stove, and then cover the cap; and then connect the cap and inner stove and seal them;
C: then fire the outer stove, and use the purification tank to collect the smoke;
D: when it produce the fuel gas, you can use the fuel gas to carbonzie the raw material which save a lot of fire material.
E: when finish the carbonization, use the hoist to hang the inner stove out to the ground, and then use the hoist to hang another inner stove to carbonize again.
4. Other parts in the smokeless wood briquette carbonizer furnace:
A: inner stove and cover:
B: Outer stove:
C: Purification system:
D: Hoist:
