Quick Details
-
Mounting Type:
-
Magnetic Proximity Sensor
-
Description:
-
contact us, Inductive Sensor
-
Manufacturing Date Code:
-
contact us
-
Model Number:
-
BL-JJ-SP11G
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Beelee
-
Theory:
-
Inductance Sensor
-
Output:
-
Analog SENSOR
-
Contact power:
-
70 W-max
-
Switching voltage:
-
DC 200 V-max
-
breakdown voltage:
-
DC 400 V-min
-
Switching current:
-
1.0 A-max
Quick Details
-
Use:
-
Position Sensor
-
Series:
-
proximity switch
-
Features:
-
magnet sensor
-
Mounting Type:
-
Magnetic Proximity Sensor
-
Description:
-
contact us, Inductive Sensor
-
Manufacturing Date Code:
-
contact us
-
Model Number:
-
BL-JJ-SP11G
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Beelee
-
Theory:
-
Inductance Sensor
-
Output:
-
Analog SENSOR
-
Contact power:
-
70 W-max
-
Switching voltage:
-
DC 200 V-max
-
breakdown voltage:
-
DC 400 V-min
-
Switching current:
-
1.0 A-max

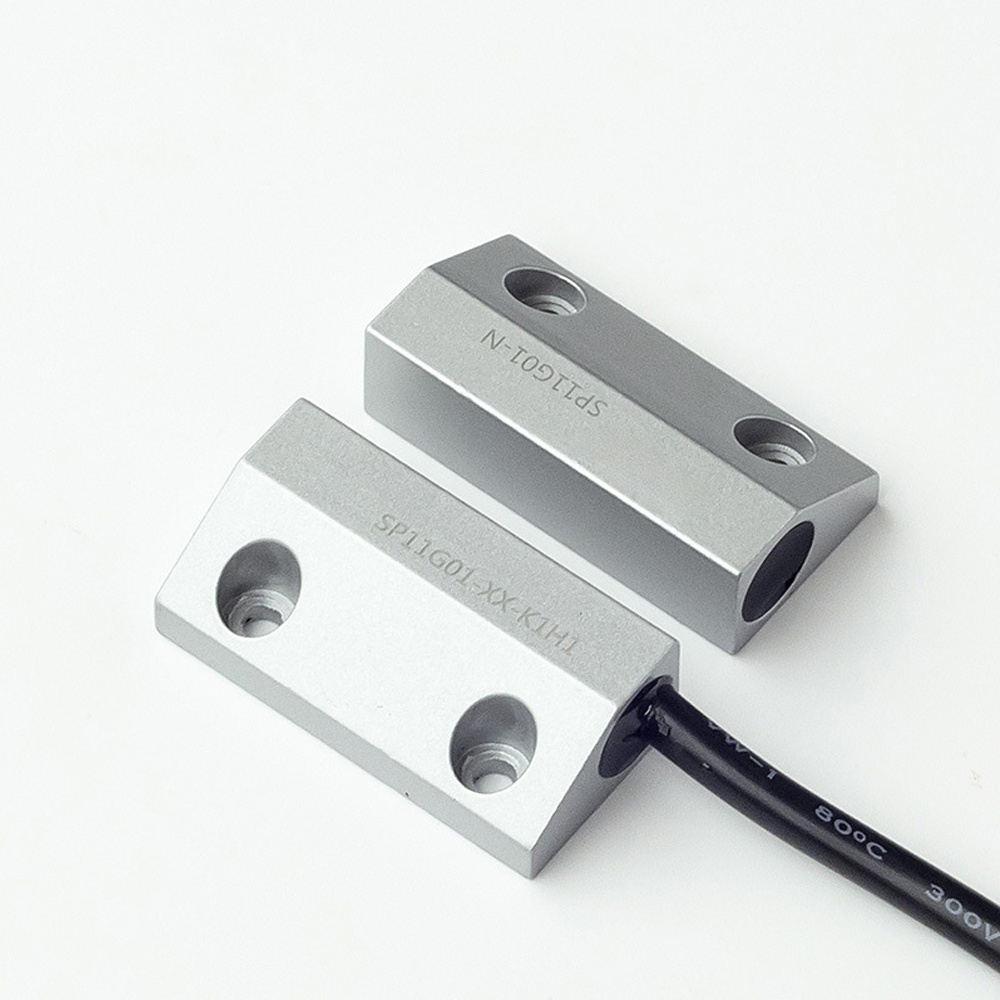

The proximity switch generates a magnetic field around the sensor by changing the position and polarity of the trigger.
So that the contact of the sensor acts. The design life of the seal is more than 1 million times, which is convenient to install and can be adjusted according to different application environments of customers.
* Product specifications can be customized according to customer requirements.
| Projects | Parameter |
| Contact form |
Type a contact
(normally open type) |
| Contact power | 70 W-max |
| Switching voltage | DC 200 V-max |
| breakdown voltage | DC 400 V-min |
| Switching current | 1.0 A-max |
| load current | 1.75 A-max |
| Contact impedance | 1.0 Ω-max |
| Insulation impedance | 1010 Ω-min |
| Contact capacity | 0.3 Pf-typ |
| temperature range | -25℃ ~ +95℃ |
