Quick Details
-
Voltage:
-
220v single phase,380v three phase, 50Hz
-
Power:
-
5.0kw
-
Dimension(L*W*H):
-
2940*1160*1700mm
-
Weight:
-
1800 kg
Quick Details
-
Production Capacity:
-
50 pcs/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DUSH
-
Voltage:
-
220v single phase,380v three phase, 50Hz
-
Power:
-
5.0kw
-
Dimension(L*W*H):
-
2940*1160*1700mm
-
Weight:
-
1800 kg

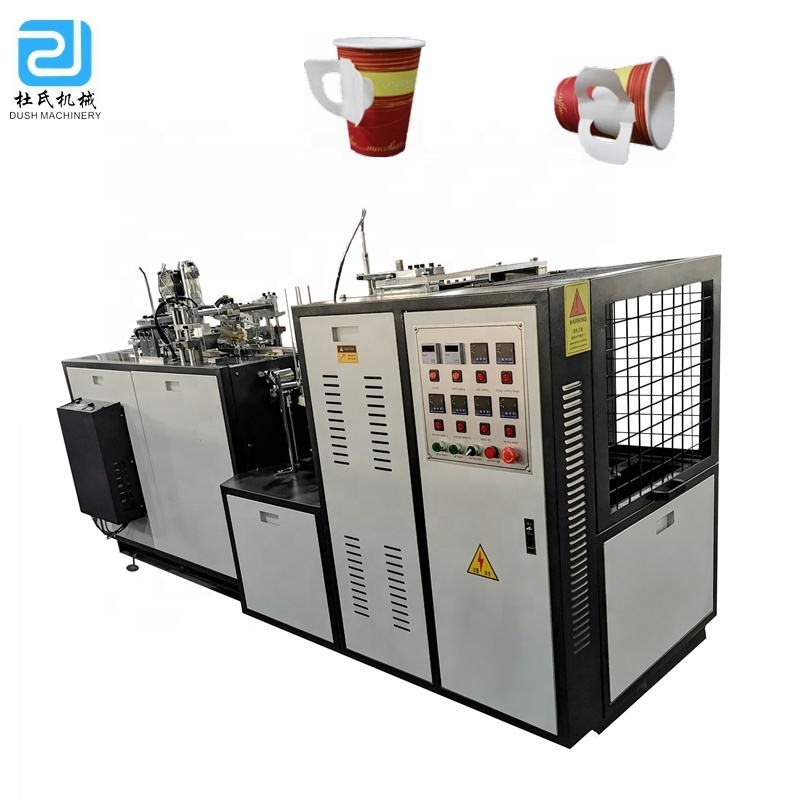

DS-DB Handle Sealing Lessclay Paper Cup Making Machine with Handle Affixing
You are in : Home >> Paper Cup Machine >> Automatic Paper Cup Handle Machine >>
| DS-DB Handle Sealing Lessclay Paper Cup Making Machine with Handle Affixing |
| This machine is our economical and classical paper cup handle machine which can make cups 4-12oz , can take copper |
| heating and ultrasonic sealing as favorable option, handle applicator is cutted in advance, and handle sealed in this machine |
|
too. The paper cup forming & handle cutting and sealing are formed together . We design two cutting devices for cutting |
|
both paper botto m & paper handle. |
|
TECHNICAL DATA |
|
| Model Name | DS-DB-02 |
| Suitable Size | 4-12oz |
| Raw Material | 180-280gsm single/double PE coating/side paper |
| Capacity | 40-50pcs/min |
| Total Power | 5.0-6.0kw |
| N.W./G.W. | 1700/1800kg |
| Air Flow | >0.6mpa |
| Air Pressure | 0.4m 3 /min, need to cooperate with air compressor |
| Power | 380v three phase,220v single phase,50hz, pls consult supplier for other type. |
| Packaging | 2940*1160*1700mm |
| model name | DS-DB | DS-DB-01 | DS-DB-02 |
| ultrasonic | yes | no | yes |
| handle cutting | yes | no | no |
| handle sealing | yes | yes | yes |
| cup mold | changeable | changeable | changable |
| handle mold | fixed | changeable | changable |
|
THE MAIN CHARACTERISTICS OF PAPER CUP HANDLE MACHINE: |
|
1-Steel anix is Φ30mm instead of Φ25mm. |
|
2-Protective door and counting system is optional. |
|
3-Divided box/gear box 100 or 125 can be optional. |
|
4-Straight bearings are adopted to keep stable running. |
|
5-Speed reducer is 1:30 100 type instead of 1:20 80 type. |
|
6-Machine is with/without ultrasonic sealing system, can be an option. |
|
7-Knurling device for bottom heating is three times power than former old type. |
|
Pingyang Dush Machinery Co., Ltd is developed in various aspects for usage of machines. F or example, the machine for |
|
coffee cups, tea cups, cold drinking cups(double sleeve), paper cups with handle, cake cups, paper plates/dishes, ripple |
|
wave papers, paper lunch boxes, tea hidden cups, hotel cups covers, paper bowls , some machines is not listed above, as |
|
tulip cups, automotive filters, filling and sealing cups, etc. I f you have great interest in these machine, please click here for |
|
all catalog to check, or send an email to Ms. Daisy Shen for enquiry. |
