Quick Details
-
Input:
-
8 HDMI, 8 SDI, 1 ASI
-
Output:
-
MPTS or 8 SPTS UDP IP Output
-
Video Encoding:
-
MPEG4 AVC/H.264
-
Audio Encoding:
-
MPEG-1 Layer 2 (HE-AAC V2/AAC-LC optional)
-
control:
-
LCD/NMS/SNMP
-
application:
-
hdmi encoder for iptv, digital head end system
-
Certificate:
-
CE,CB,FCC
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
DEXIN
-
Model Number:
-
NDS3218A
-
Input:
-
8 HDMI, 8 SDI, 1 ASI
-
Output:
-
MPTS or 8 SPTS UDP IP Output
-
Video Encoding:
-
MPEG4 AVC/H.264
-
Audio Encoding:
-
MPEG-1 Layer 2 (HE-AAC V2/AAC-LC optional)
-
control:
-
LCD/NMS/SNMP
-
application:
-
hdmi encoder for iptv, digital head end system
-
Certificate:
-
CE,CB,FCC

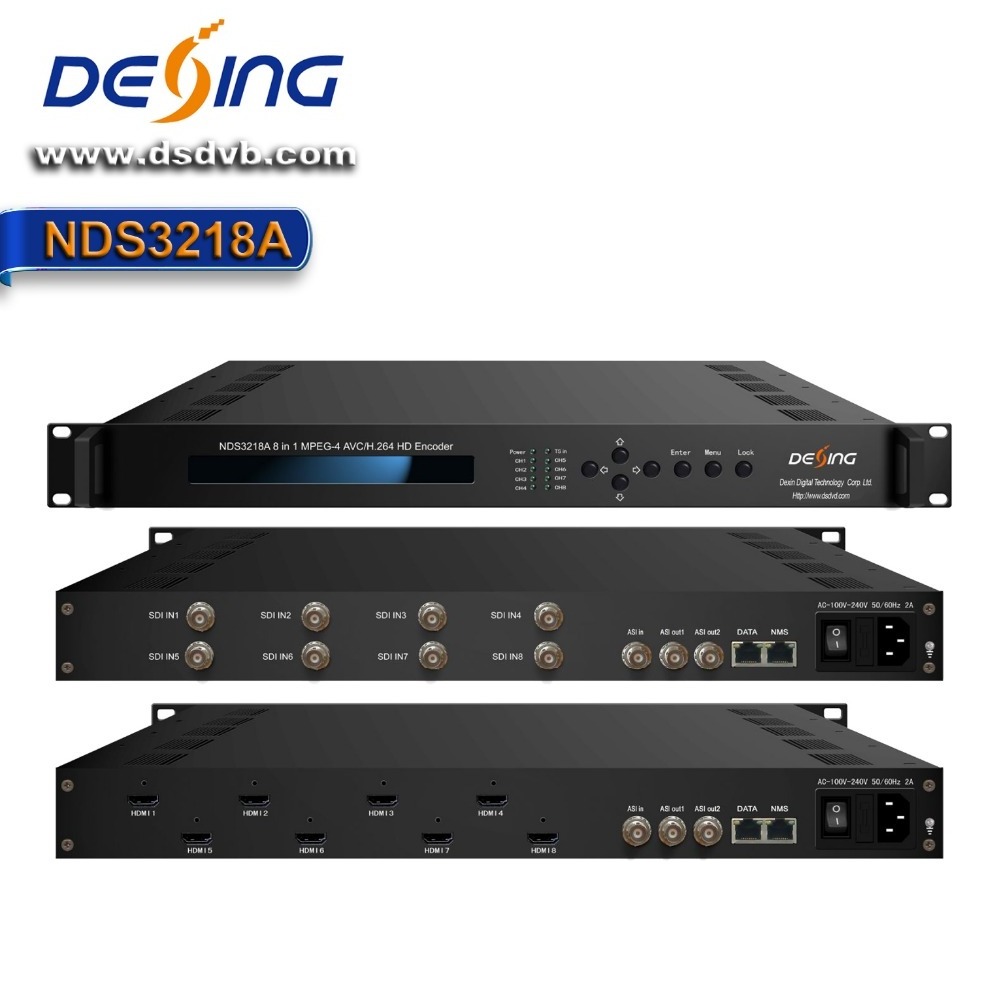

NDS3218A HDMI in MPEG4 HD HE AAC 8in1 hd encoder with ip
Product Overview
The DEXIN NDS3218A 8 -in-1 MPEG-4 AVC/H.264 HD encoder is our newest professional HD audio & video encoding and multiplexing device with powerful functionality. It is equipped with 8 HDMI (or SDI) channels input supporting MPEG-4 AVC/H.264 High Profile code format & main Profile code format, and also 1 ASI input for re-mux. It can multiplex the ASI input TS and the 8 encoded SPTS to generate a MPTS output with the inserted PSI/SI information. In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.
Key Features
l Support 8 HDMI/SDI channels input & 1 ASI Input
l Support MPEG-4 H.264/AVC video encoding
l Support 720P, 1080I, 1080P HD video format, and HD (1080i/720p) to SD (576p/480p) downscale conversion
l Support MPEG1 Layer 2 (HE-AAC (V2), LC -AAC optional) audio encoding; AC3 Passthrough (For HDMI)
l Support ASI output as mirror of MPTS or one of 8 encoder channels
l Support IP Output MPTS and 8 SPTS over UDP and RTP/RTSP
l Support audio gain control(For HDMI)
l Support PSI/SI editing and inserting
l Support VBR/CBR video bitrate mode
l Support IP null packet filter
l Real-time output bit-rate monitoring
l Update device through NMS port
l Support LCD / keyboard operating, and network management (Web)
Specifications
|
Input |
8×HDMI (or 8×SDI) inputs |
|
|
1 ASI input, BNC interface |
||
|
Video |
Encoding |
MPEG-4 AVC/H.264 |
|
Resolution |
||
|
1920×1080_60i, 1920×1080_50i |
||
|
1280 × 720_60P, 1280×720 _50P |
||
|
720×576_50i, 720×480_60i |
||
|
Resolution Downsacle |
1080i/720p to 576p/480p |
|
|
Bit-rate |
0.8Mbps~19Mbps (each channel) |
|
|
Rate Control |
CBR/VBR |
|
|
GOP Structure |
IBBP |
|
|
Advanced Pretreatment |
De-interlacing, Noise Reduction, Sharpening |
|
|
Audio |
Encoding |
MPEG-1 Layer 2 (HE-AAC V2, LC- AAC Option); AC3 passthrough (for HDMI) |
|
Sampling rate |
48KHz |
|
|
Resolution |
24-bit |
|
|
Bit-rate |
64Kbps,96Kbps,112Kbps,128Kbps,160Kbps,192Kbps,224Kbps,256Kbps,320 Kbps,384Kbps each channel |
|
|
Audio Gain |
0-400 |
|
|
Multiplexing |
1 ASI input multiplexed with local 8 channels of TS |
|
|
Stream output |
2*ASI output, BNC interface |
|
|
MPTS and 8 SPTS over UDP and RTP/RTSP, 1000 Base-T Ethernet interface (unicast / multicast); |
||
|
System function |
LCD/keyboard operating, net manager (Web) |
|
|
Chinese-English control interface |
||
|
Ethernet software & hardware upgrade |
||
|
Miscellaneous |
Dimension (W× L× H) |
440mm×410mm×44.5mm |
|
Temperature |
0~45 ℃ (work), -20~80 ℃ ( Storage ) |
|
|
Power |
AC 100V-220V±10%, 50/60Hz |
|
