Quick Details
-
Brand:
-
YLIES
-
Application:
-
PCB
-
Color:
-
Red, Red
-
Material:
-
PBT
-

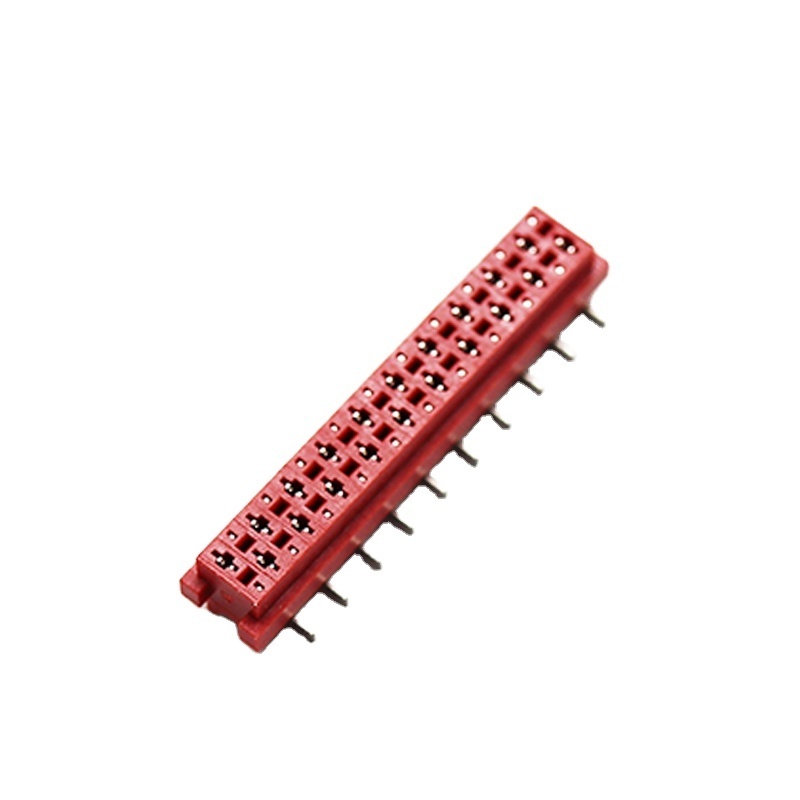

Product name:
-
micro match Socket connector
-
Contact:
-
Brass/0.8u MIN
-
Rubber core:
-
PBT+30%G.F UL94V-0
-
Rating Current:
-
3 AMP
-
Contact Resistance:
-
20MΩ Max
-
Insulating Resistance:
-
1000MΩ Min
-
Withstanding Voltage:
-
AC 500V
-
Temperture Range:
-
-40℃to +105℃
-
Four guidelines:
-
Brass/nickel/gold plated surface
Quick Details
-
Model Number:
-
56R-XX150XXFMX1
-
Type:
-
connector
-
Place of Origin:
-
Guangdong, China
-
Brand:
-
YLIES
-
Application:
-
PCB
-
Color:
-
Red, Red
-
Material:
-
PBT
-
Product name:
-
micro match Socket connector
-
Contact:
-
Brass/0.8u MIN
-
Rubber core:
-
PBT+30%G.F UL94V-0
-
Rating Current:
-
3 AMP
-
Contact Resistance:
-
20MΩ Max
-
Insulating Resistance:
-
1000MΩ Min
-
Withstanding Voltage:
-
AC 500V
-
Temperture Range:
-
-40℃to +105℃
-
Four guidelines:
-
Brass/nickel/gold plated surface
Drawing renderings
| Rated Current: | 1.0AMP |
| Contact Resistance: | 20mΩ Max |
| Withstand Voltage: | 500V AC/DC |
| Insulation Resistance: | 1000MΩ Min |
| Operation Temperature: | - 40°c to + 105°c |
| Contact Material : | Brass or Gold Plated |
| Contact Plating: | Au Over Ni |
| Insulator Material : | Polyester (UL94V-0) |
| Standard: | PBT |
| Max.Processing Temp: | 180°c for 30-60 Seconds / (200°c for 10 Seconds) |
Product Photograph
