Quick Details
-
Warranty:
-
2 years
-
Brand Name:
-
Beigong
-
Model Number:
-
50ZJ-I-A46
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
75 hp
-
Cable Length:
-
Based on customer needs
-
Outlet Size:
-
2 inch
-
Power:
-
55 kw
-
Product name:
-
Slurry Pump
-
Type:
-
ZJ Slurry Pump
-
Material:
-
High Chrome Alloy
-
Usage:
-
Slurry
-
Function:
-
Slurry Transmission
-
Pump body:
-
High Chrome Alloy
-
Motor:
-
3 Phase Motor
-
Mechanical Seal:
-
SiC/Carbon/SS304
-
Advantage:
-
Wide Application
-
Packing:
-
Wooden Case
Quick Details
-
Application:
-
Other, Commercial Buildings, Developing World Water Solutions, District Energy, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Metal and Equipment Manufacturers, Mining industry, wastewater treatment, Water Treatment Solutions, Other
-
Pressure:
-
High Pressure
-
Voltage:
-
220v 380v 400v
-
Warranty:
-
2 years
-
Brand Name:
-
Beigong
-
Model Number:
-
50ZJ-I-A46
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
75 hp
-
Cable Length:
-
Based on customer needs
-
Outlet Size:
-
2 inch
-
Power:
-
55 kw
-
Product name:
-
Slurry Pump
-
Type:
-
ZJ Slurry Pump
-
Material:
-
High Chrome Alloy
-
Usage:
-
Slurry
-
Function:
-
Slurry Transmission
-
Pump body:
-
High Chrome Alloy
-
Motor:
-
3 Phase Motor
-
Mechanical Seal:
-
SiC/Carbon/SS304
-
Advantage:
-
Wide Application
-
Packing:
-
Wooden Case
Categories
Click for more Mud pumps
Click for more Irrigation pumps
Click for more Sand pumps

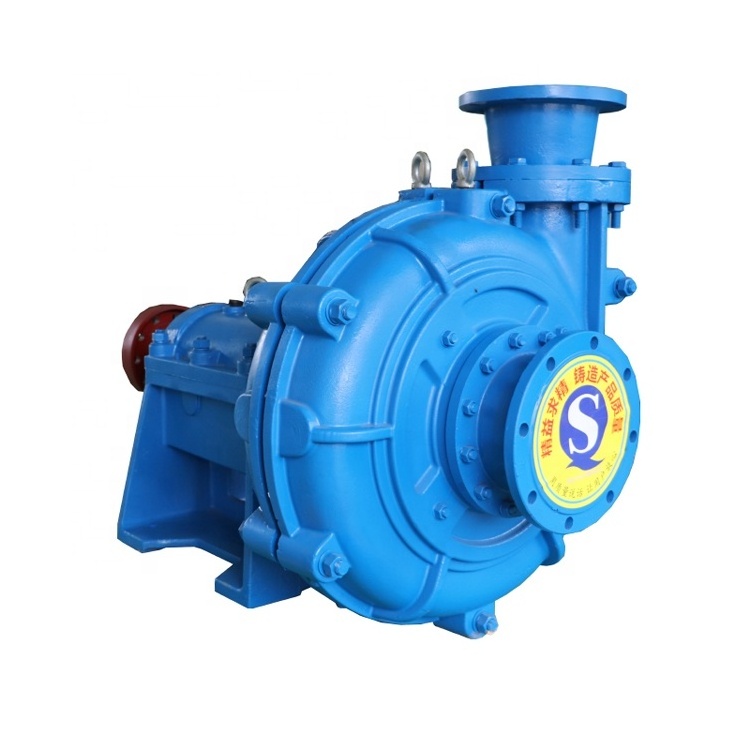

Product Introduction
Multiple driving methods
Tight shaft seal (three options):
Packing seal (default): PTFE composite, strong toughness, strong stability, easy to replace
Mechanical seal: low friction rate, no leakage, external water lubrication, no need for frequent replacement
Kettle type mechanical seal: Kettle type mechanical seal can realize self-circulating lubrication, saving worry and effort
Series and parallel installation (optional):
The pump has a wide performance range, good cavitation performance and high efficiency.
Multi-stage series and parallel technology can be used,
To meet the needs of long-distance transportation and large-flow feeding.
Product application：
ZJ series slurry pump is suitable for electric power, metallurgy, coal, building materials and other industries. The processing medium is abrasive or corrosive slurry containing solid particles. Solid-liquid mixed concentration: 45% for mortar, 60% for ore slurry, and medium temperature ≤60°C. This type of pump can be used in multi-stage cascade.
Product parameter table
|
Types
|
Power
|
Capacity
|
pressure
|
Speed
|
efficiency
|
NPSH
|
Particle size
|
Weight
|
|
|
(KW)
|
(m³/h)
|
(Bar)
|
(r/min)
|
%
|
(m)
|
(mm)
|
（kg)
|
|
300ZJ-I-A65
|
160-500
|
589-2166
|
0.14-0.66
|
490-980
|
77.4
|
3.7
|
92
|
3531
|
|
250ZJ-I-A68
|
110-450
|
272-1342
|
0.17-0.8
|
490-980
|
73.5
|
2.7
|
72
|
3432
|
|
200ZJ-I-A68
|
90-315
|
199-948
|
0.183-0.82
|
490-980
|
74.6
|
2.8
|
56
|
2453
|
|
150ZJ-I-A55
|
37-110
|
124-504
|
0.123-0.534
|
490-980
|
73
|
2.3
|
48
|
2019
|
|
100ZJ-I-B42
|
22-90
|
83-365
|
0.127-0.67
|
700-1480
|
71.6
|
2.5
|
40
|
1085
|
|
80ZJ-I-A52
|
30-160
|
51-242
|
0.22-1.1
|
700-1480
|
56.3
|
2.1
|
21
|
1465
|
|
65ZJ-I-A27
|
3-11
|
20-71
|
0.06-0.282
|
700-1460
|
61.5
|
1.8
|
19
|
500
|
|
50ZJ-I-A50
|
22-90
|
27-111
|
0.223-1.1
|
700-1480
|
45
|
3.0
|
13
|
1378
|
|
40ZJ-I-A19
|
1.5-11
|
8-35
|
0.128-0.57
|
1430-2900
|
58.8
|
1.3
|
11
|
173
|
The performance parameter table only shows part of the products. For details, please consult our company’s account manager, so that you can choose products for you more professionally.
Workshop product physical map
Warm reminder: The price of the product is mainly in kind! For details, consult our customer manager
You May Like
Our Company
Company office area
Integrated CNC machine tool
Heavy processing machine tools
CNC Castings
Product assembly
Quality inspection station
Transportation and service
Support freight, air, sea, express and other transportation methods to provide you with better service, which is the purpose of our company!
Hebei Beigong Pump Industry Co., Ltd. wins the trust of customers with quality. All products are strictly inspected before leaving the factory to ensure product quality. During the warranty period, if the product fails to work normally due to poor manufacturing, the company will replace and repair the product and parts for the user free of charge. Beigong Pump Industry has a complete after-sales service system to ensure that customers have no worries about using any product.
