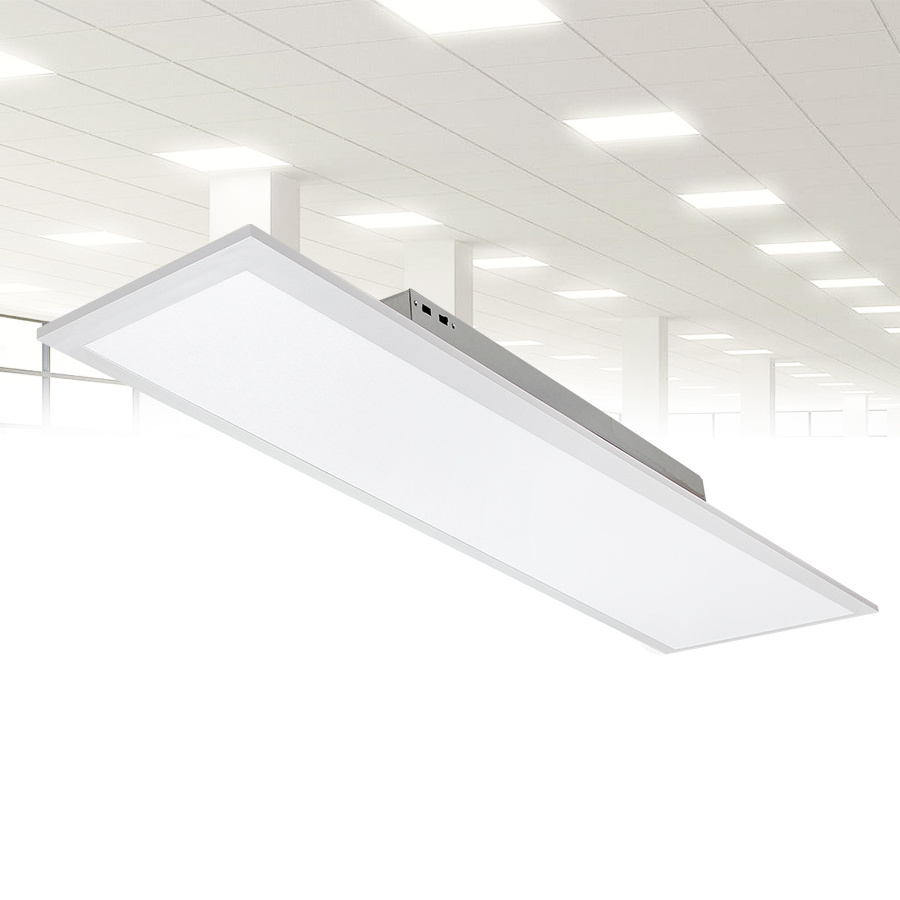

1x4 2x4 2x2FT 120LM/W 3Power 3CCT Switchable IP50 Dimmable LED Flat Panel Light

1x4 2x4 2x2FT 120LM/W 3Power 3CCT Switchable IP50 Dimmable LED Flat Panel Light

FOB Reference Price: Get Latest Price

≥1 Pieces

US $19.92

≥1000 Pieces

US $17.93

≥3000 Pieces

US $14.33

≥5000 Pieces

US $11.37

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty(Year):: 5-Year

Color Temperature(CCT):: 3500K,4000K,5000K,3CCT Switchable

Product Weight（kg）:: 3

Input Voltage(V):: 100-277V/347V

Lamp Luminous Flux(lm):: 6000-8400

CRI (Ra>):: 80

Working Temperature(℃):: 0 - 40

Working Lifetime(Hour):: 50000

Place of Origin:: Guangdong, China

Brand Name:: OEM

Model Number:: PN22/14/24

Product name:: Back Lit LED Flat Panel Light

Power:: 30/40/50/60/70W Switchable

CCT:: 3500K 4000K 5000K/3CCT Switchable

Beam angle:: 120°

Dimmable:: 0-10V

PF:: 0.95

Color:: White (RAL 9003)

Over load/short Circuit:: Protection

Installation:: Reccessed /Surface/ Suspended

No LGP:: No yellowish worries or other major

Quick Details

Lamp Luminous Efficiency(lm/w):: 120

Application:: Office Building

Lamp Body Material:: Aluminum +PC

Warranty(Year):: 5-Year

Color Temperature(CCT):: 3500K,4000K,5000K,3CCT Switchable

Product Weight（kg）:: 3

Input Voltage(V):: 100-277V/347V

Lamp Luminous Flux(lm):: 6000-8400

CRI (Ra>):: 80

Working Temperature(℃):: 0 - 40

Working Lifetime(Hour):: 50000

Place of Origin:: Guangdong, China

Brand Name:: OEM

Model Number:: PN22/14/24

Product name:: Back Lit LED Flat Panel Light

Power:: 30/40/50/60/70W Switchable

CCT:: 3500K 4000K 5000K/3CCT Switchable

Beam angle:: 120°

Dimmable:: 0-10V

PF:: 0.95

Color:: White (RAL 9003)

Over load/short Circuit:: Protection

Installation:: Reccessed /Surface/ Suspended

No LGP:: No yellowish worries or other major

We have launched a new type design---Power & CCT Tunable Back-lit LED Panel Light Series, From product design, mold development,material selection, automated production,etc, we will strictly control every procedures and present the best quality products for our customers.

Product Description

Specification

Product	CGT LED Eco Back-Lit Panel Light
Power	40W/30W/20W Switch 50W/40W/30W Switch 70W/60W/50W Switch
CCT	3500K 4000K 5000K 3-CCT Selectable
Input Voltage	100-277Vac/100-347Vac
Dimmable	1-10V dim
Size	2x2,1x4,2x4
Warranty & Certificated	5 years &ETL, DLC5.1 Premiun

277V 347V Eco Back-Lit Panel Light Advantage:
- No LGP, No yellowish worries or other major
- Lower cost,higher cost effective
- High Strength Aluminum Alloy Frame,more stronger
- 0-10Vdimmable isolated Driver, PF>0.9, THD<15%
-LED Source: SMD3030, CRI>80 SDCM<5, L80>100,000H
-Luminous Efficiency up to 130lm/w
-Colour temperature:3500K, 4000K, 5000K
-Certification:ETL DLC5.1 Premium
- 5 Years Warranty, repair and replace for free.

Installation&Application

CGT 3-Power 3-CCT Selectable Ceiling Installation

ETL DLC 5.1 Premium 2x2' 2x4' 30W 40W 50W 3500K 4000K 5000k LED Panel Light

Main Features:

1.The PS diffusion plate with 1.2mm thickness ensures that the whole lamp with no dark area, no deformation, but uniform lighting;

2.15.8MM large angle special TV backlight lens, imported PMMA lamp cover, to maximize the lamp lumens output;
3.Original imported SMD3030 chip, high CRI effect, high brightness, the whole lamp luminous efficiency up to 130lm/w.

APPLICATIONS:
Indoor use only, For Factory, Office, Bank, Conference room, Hospital, Shopping mall, Hotel, Warehouse, Subway, School, Basement
passage, Corridor, etc.
