Quick Details
-

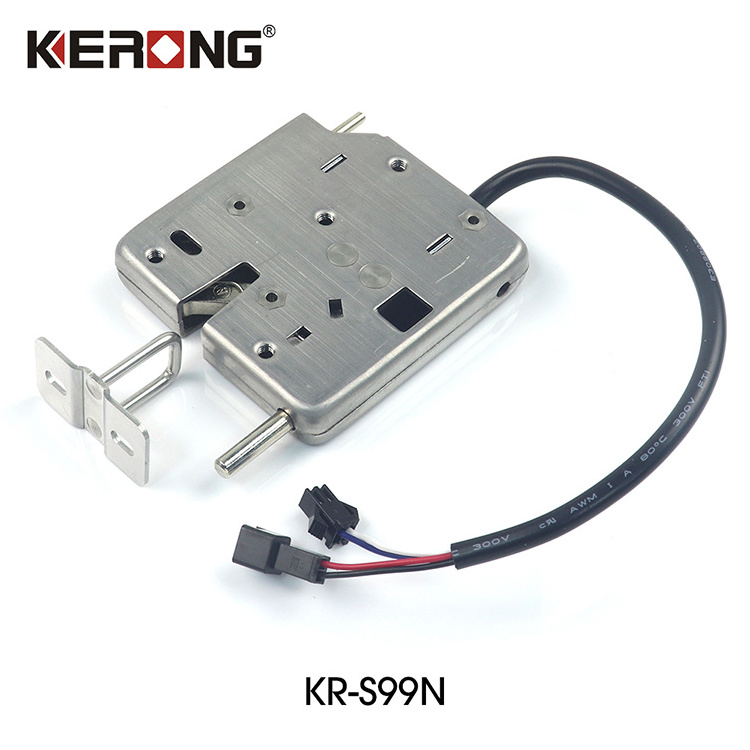

Product Name:
-
Parcel Locker Lock
-
Model:
-
KR-S99N
-
Material:
-
430 stainless steel
-
Size:
-
69*72.5*13.5mm
-
Applicable door weight:
-
0.5kg~10kg
-
Working temperature:
-
-20℃~+60℃
-
Working humidity:
-
5%~85%RH
-
Working life:
-
500,000 times
-
Tensile strength:
-
240 kg
-
Response time:
-
<200ms
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KERONG
-
Model Number:
-
KR-S99N
-
Product Name:
-
Parcel Locker Lock
-
Model:
-
KR-S99N
-
Material:
-
430 stainless steel
-
Size:
-
69*72.5*13.5mm
-
Applicable door weight:
-
0.5kg~10kg
-
Working temperature:
-
-20℃~+60℃
-
Working humidity:
-
5%~85%RH
-
Working life:
-
500,000 times
-
Tensile strength:
-
240 kg
-
Response time:
-
<200ms
Product Paramenters
|
Brand
|
KERONG
|
|
Product Model
|
KR-S99N
|
|
Material
|
430 Stainless Steel
|
|
Size
|
69*72.5*13.5mm
|
|
Weight of Lock
|
189 g
|
|
Color
|
Silver
|
|
Surface Treatment
|
Brushed texture surface
|
|
Working Voltage
|
12V/24V
|
|
Working Current
|
2.4A/1.2A
|
|
Power Consumption
|
28.8 W
|
|
Working Life
|
500,000 times
|
|
Detective Switch
|
Omron
|
|
Drive Mode
|
Solenoid
|
|
Application
|
Gym Locker, Electric Cabinet, Parcel Storage Locker, Supermarket Locker, etc
|
|
Certifications
|
CE, RoHS, FCC
|
Product Specification
1. AWG24 wire with PVC protective tube.
2. Support customizing wires and connectors.
3. Driven by electromagnet, support 12V & 24V.
4. The external push rod helps to push and stabilize the cabinet door.
5. The compact structure design leaves more space for the storage cabinet.
6. Japanese Omron switch has a long service life and detects the opening and closing of the lock.
7. Equipped with an emergency unlocking lever, which can be manually unlocked in an emergency.
8. Different lock hooks are suitable for different locker designs, and customized services can be provided.
9. Safety: The lock shell is made of 430 stainless steel, and there will be no obvious transformation.
2. Support customizing wires and connectors.
3. Driven by electromagnet, support 12V & 24V.
4. The external push rod helps to push and stabilize the cabinet door.
5. The compact structure design leaves more space for the storage cabinet.
6. Japanese Omron switch has a long service life and detects the opening and closing of the lock.
7. Equipped with an emergency unlocking lever, which can be manually unlocked in an emergency.
8. Different lock hooks are suitable for different locker designs, and customized services can be provided.
9. Safety: The lock shell is made of 430 stainless steel, and there will be no obvious transformation.
