Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AOHUA
-
Model Number:
-
M15-F
-
Product name:
-
Waterproof Connector
-
Connector type:
-
Solder Type
-
Material:
-
PA66
-
Certificate:
-
CE ROHS
-
Socket:
-
2/3/4/5/6
-
Waterproof level:
-
IP67
-
Voltage rating:
-
300V
-
Current rating:
-
10A
-
Warranty:
-
2 Years
Quick Details
-
Type:
-
ADAPTER
-
Application:
-
LED Modules
-
Gender:
-
Male and Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AOHUA
-
Model Number:
-
M15-F
-
Product name:
-
Waterproof Connector
-
Connector type:
-
Solder Type
-
Material:
-
PA66
-
Certificate:
-
CE ROHS
-
Socket:
-
2/3/4/5/6
-
Waterproof level:
-
IP67
-
Voltage rating:
-
300V
-
Current rating:
-
10A
-
Warranty:
-
2 Years
Product Description
What are details of our high-quality waterproof connectors?

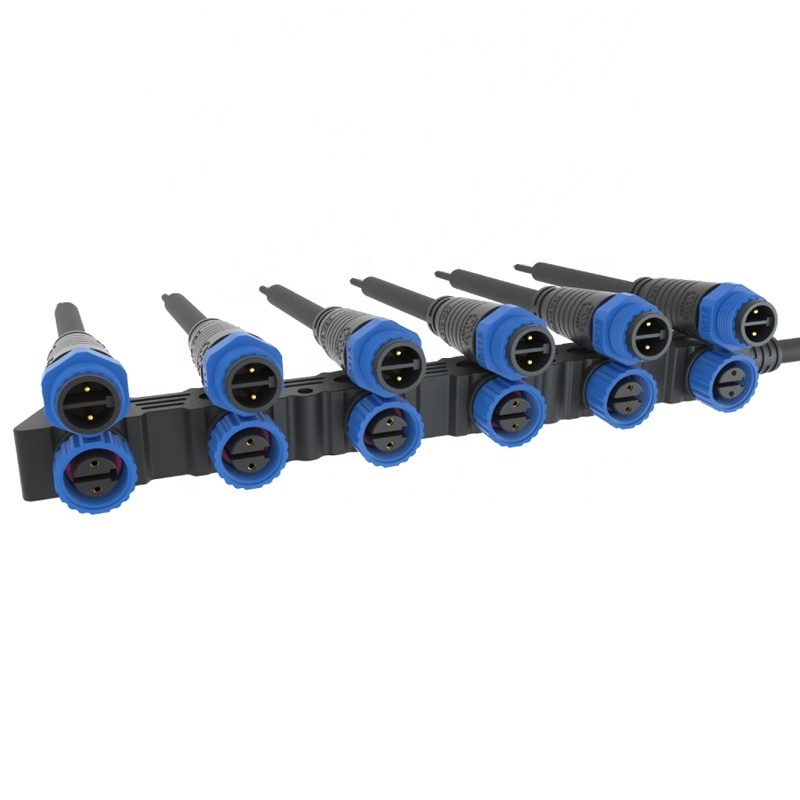

AOHUA factory M15 outdoor garden ip68 led lighting F shape 1 to 5 CE UL waterproof power cable connector led module connector
2. Feature: favorable waterproof level ip67/ip68, safe and easy installation.
3. Any length of the cable is available and terminal processed.
4. You can get some sample before mass order.
3. Any length of the cable is available and terminal processed.
4. You can get some sample before mass order.
|
Contants Number
|
2
|
|
Voltage Rating
|
300V
|
|
Current Rating
|
10A
|
|
Wire Size
|
≤1.5mm²
|
|
Cable OD
|
6.8mm—8.3mm
|
|
Mechanical Life
|
3000 mating cycles
|
|
Operating Rating
|
—40℃—+105℃
|
|
Waterproof Level
|
IP67/IP68
|
|
Certificates
|
UL, ROHS, CE.
|
|
Packaging
|
1.Carton; 2.Customized as requirement.
|
|
Payment
|
TT, PayPal.
|
|
Delivery Time
|
7-15 days according to quantitty.
|
Details Images
Tips for choices
Wire size you can choose are:
2*1.5mm²
2*1.0mm²
2*0.75mm²
2*0.5mm²
2*14AWG
2*16AWG
2*18AWG
