Quick Details
-
Model Number:
-
3/16''-2''
-
Material:
-
NBR
-
Application:
-
Suitable for use with petroleum-based hydraulic fluids
-
Certification:
-
ISO9001/TS16949/CCS
-
Color:
-
Blue Yellow Green Black Red
-
Length:
-
20m 40m 50m 100m
-
Standard:
-
DIN EN 854 1TE SAE 100 R6
-
MOQ:
-
1 Meter
-
Temperature:
-
-40°C~+100°C
-
Surface:
-
Smooth Or Wrapped
-
Product name:
-
Textile Braided Hydraulic Hose
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
PROLEADER
-
Model Number:
-
3/16''-2''
-
Material:
-
NBR
-
Application:
-
Suitable for use with petroleum-based hydraulic fluids
-
Certification:
-
ISO9001/TS16949/CCS
-
Color:
-
Blue Yellow Green Black Red
-
Length:
-
20m 40m 50m 100m
-
Standard:
-
DIN EN 854 1TE SAE 100 R6
-
MOQ:
-
1 Meter
-
Temperature:
-
-40°C~+100°C
-
Surface:
-
Smooth Or Wrapped
-
Product name:
-
Textile Braided Hydraulic Hose

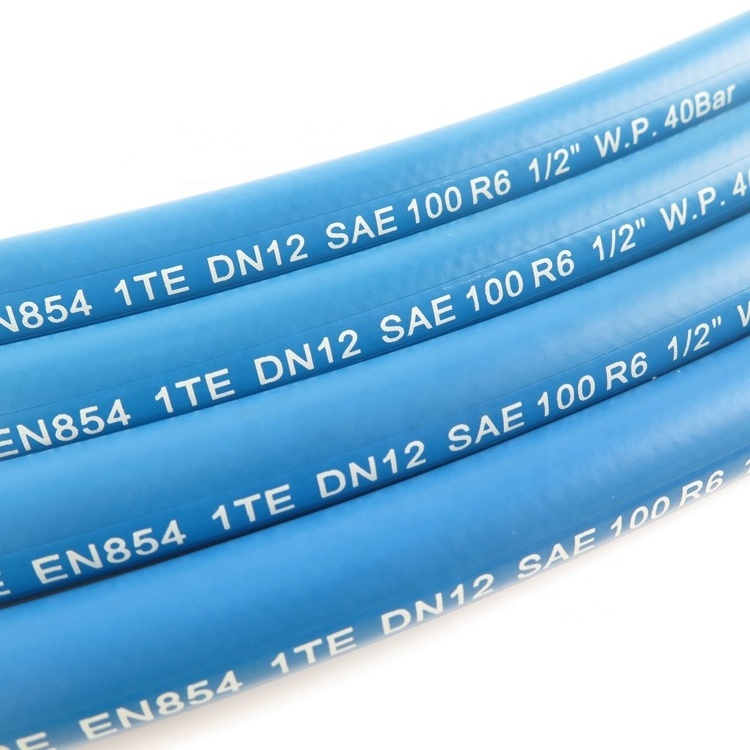

SAE100 R6 EN854 1TE Pushlok 1/4 Inch One High Resistance Textile Braids Rubber Hose
SAE 100 R6 / EN 854 1TE Textile Braided Hydraulic Hose
Tube:
NBR;
Reinforcement:
One layer textile braid
Cover:
Weather and oil resistant CR"
Application:
Suitable for use with petroleum-based hydraulic fluids;
Temperature Range:
-40°C~+100°C
Appearance:
Smooth or wrapped; Color: Black or multiple colors
| SIZE I.D | O.D | W.P | B.P | B.R | L | W.T | ||||
| dash | inch | mm | mm | bar | psi | bar | psi | mm | m | kg/m |
| -3 | 3/16" | 4.8 | 12.0 | 35 | 500 | 140 | 2000 | 50 | 50-100 | 0.12 |
| -4 | 1/4" | 6.4 | 13.0 | 28 | 400 | 112 | 1600 | 65 | 50-100 | 0.13 |
| -5 | 5/16" | 7.9 | 14.6 | 28 | 400 | 112 | 1600 | 75 | 50-100 | 0.16 |
| -6 | 3/8" | 9.7 | 16.5 | 28 | 400 | 112 | 1600 | 75 | 50-100 | 0.21 |
| -8 | 1/2" | 12.7 | 20.4 | 28 | 400 | 112 | 1600 | 100 | 50-100 | 0.27 |
| -10 | 5/8" | 16.0 | 23.6 | 24 | 350 | 96 | 1400 | 125 | 50-100 | 0.33 |
| -12 | 3/4" | 19.1 | 27.6 | 21 | 300 | 84 | 1200 | 150 | 50 | 0.45 |
| -16 | 1" | 25.4 | 34.5 | 17.5 | 250 | 70 | 1000 | 180 | 50 | 0.57 |
| -20 | 1.1/4" | 31.8 | 42.5 | 15 | 215 | 60 | 860 | 240 | 40 | 0.95 |
| -22 | 1.3/8" | 35.0 | 46.0 | 13.5 | 200 | 54 | 800 | 300 | 40 | 1.05 |
| -24 | 1.1/2" | 38.1 | 48.5 | 12 | 175 | 48 | 700 | 360 | 40 | 1.15 |
| -32 | 2" | 50.8 | 62.0 | 10 | 145 | 40 | 580 | 500 | 40 | 1.55 |
