Low price Complete School Recycled newspaper pencil Rod making production line machine

Description for Electric Slate Paper Pencil Making Rolling Machine

1.Based on the purpose of protecting forest resources and ecological environment,saving the timber as well.

2.This recycles paper pencil machine developed by our company can utilize the recycled and useless

newspapers,waste book papers etc to make pencils as the substitution for timber.

3.this kind of paper pencil is as hard as wooden pencil and very easy to be sharpened by the pencil sharpener.

4.Production capacity: 10,000—20,000pcs per day.

5.Production process:Cut paper→roll lead into paper→roll the paper into pencil with glue→dry the wet pencil→cut two sides of the pencil→polish the pencil→package the pencil with plastic film→fix the eraser on pencil.

1.Paper cutter

This machine is to cut the newspapers into pieces for further processing.
One pencil need one paper size:18.3CM*54CM,one newpaper generally could make 3 pcs.
Put papers under the cutter blade, press the handle, paper will be cutted into your needed size.

Max thickness of paper: 50mm
Dimension: 750mm*450*80mm

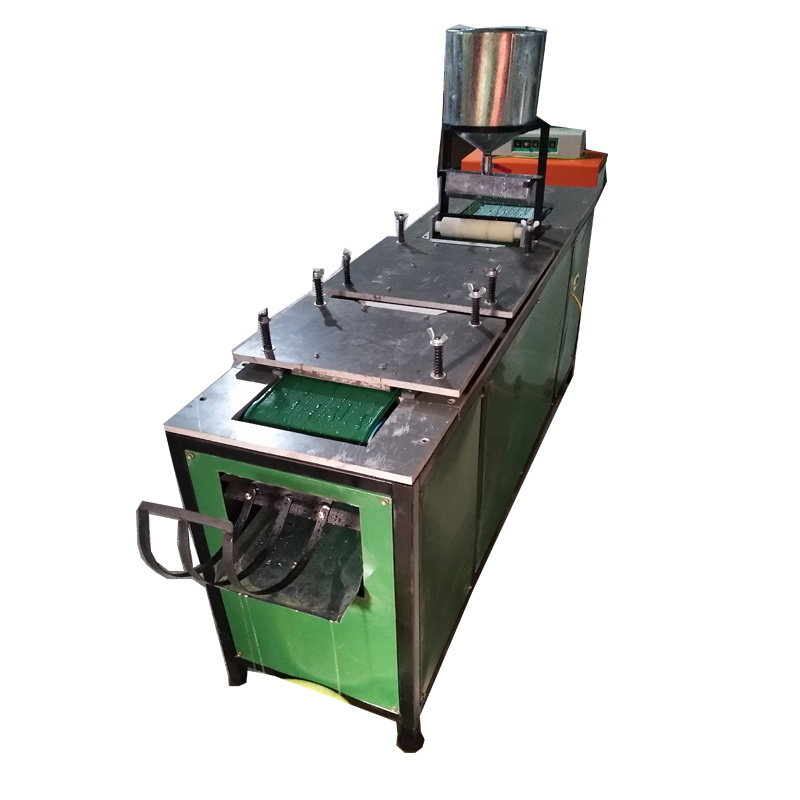

2.Pencil rod making machine

This machine used to roll the pieces of newspaper into pencil sticks.
With corresponding color, the machine will roll cutted paper into a stick with pencil lead.
Productivity: 40 pcs/min
Motor: 1.5kw
Weight: 140kg
Dimension:1800×450×1300mm

3.Drying machine

This machine is to dry the pencil sticks.
Because finished stick is very wet, we recommend dry sometime naturally before putting into the machine.
Finally dry in the dryer for about 4h.
Productivity: 100 pcs/time
Motor: 2.2kw
Weight: 70kg
Dimension: 760*550*680 mm

4.Pencil cutting machine and the Pencil roughing machine

This machine is used to cut and polish the dry pencil sticks.
For the newpapers is rolled automatically, two end of the rod maybe be not so neat, also newspapers are old, not so smooth in the suface, by processing by this machine, you could get better quality pencils.

Pencil cutting machine
Capacity:100pc/min
Motor: 0.85kw
Weight: 68kg
Dimension: 610×425×1150mm

Pencil roughing machine
Capacity:100pcs/min
Motor:1.8kw
Weight: 130kg
Dimension:610x400x1150mm

5.Shrink machine

This machine is used to pack the pencils in colorful plastic papers.
Need you firstly put the pencil rod into the round shink, then in high temperature, the film is sticked on the rod firmly.
We could design the membrane as you need.
Capacity:100pcs/min
Dimension:1160×430×780cm
Motor:3kw
Weight:60kg

6.Eraser machine

This machine is to head the eraser.
Capacity: 30 pieces/min
Weight:10 kg
Dimension:600*450*900 mm
